#include <qxtsortfilterproxymodel.h>

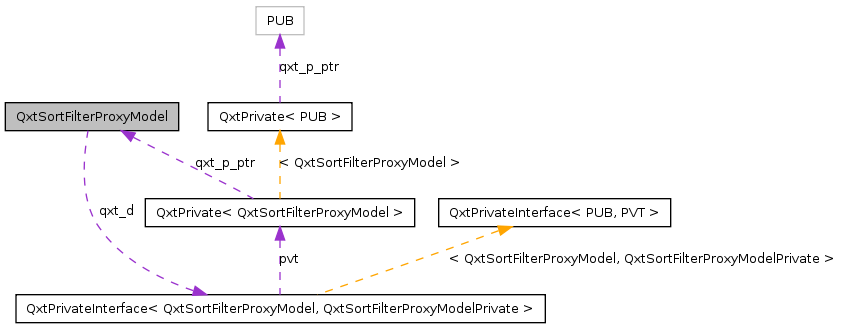

Collaboration diagram for QxtSortFilterProxyModel:

Public Member Functions
	QxtSortFilterProxyModel (QObject *parent=0)
virtual bool	filterAcceptsRow (int source_row, const QModelIndex &source_parent) const
void	beginDeclareFilter ()
void	endDeclareFilter ()
void	setFilter (const int column, const QVariant &value, const int role=Qt::DisplayRole, Qt::MatchFlags flags=Qt::MatchContains)
void	setFilterValue (const int column, const QVariant &value)
void	setFilterRole (const int column, const int role=Qt::DisplayRole)
void	setFilterFlags (const int column, const Qt::MatchFlags flags=Qt::MatchContains)
void	removeFilter (const int column)
QVariant	filterValue (const int column) const
int	filterRole (const int column) const
Qt::MatchFlags	filterFlags (const int column) const
bool	isFiltered (const int column)
Friends
class	QxtSortFilterProxyModelPrivate

Detailed Description

a multi column filter model The QxtSortFilterProxyModel makes it possible to filter over multiple columns.

 *QxtSortFilterProxyModel * filterModel = new QxtSortFilterProxyModel(parent);
 *filterModel->setSourceModel(sourceModel);
 *filterModel->beginDeclareFilter();
 *filterModel->setFilter(1,QVariant("SomeStringValue"),Qt::DisplayRole,Qt::MatchExactly);
 //remove some old filter
 *filterModel->removeFilter(2);
 *filterModel->setFilter(5,QVariant(1234),Qt::DisplayRole,Qt::MatchExactly);
 *filterModel->endDeclateFilter();
 *

Now the model will filter column 1 and 5, to be accepted by the filtermodel a row needs to pass all filters

Definition at line 38 of file qxtsortfilterproxymodel.h.

Constructor & Destructor Documentation

QxtSortFilterProxyModel::QxtSortFilterProxyModel ( QObject * parent = 0 )

Definition at line 116 of file qxtsortfilterproxymodel.cpp.

References QXT_INIT_PRIVATE.

                                                                  : QSortFilterProxyModel(parent)
{
    QXT_INIT_PRIVATE(QxtSortFilterProxyModel);
    qxt_d().m_declaringFilter = false;
}

Member Function Documentation

void QxtSortFilterProxyModel::beginDeclareFilter ( )

tells the model you want to declare a new filter If you have a lot of data in your model it can be slow to declare more than one filter, because the model will always rebuild itself. If you call this member before setting the new filters the model will invalidate its contents not before you call

See also:: endDeclareFilter()

Definition at line 128 of file qxtsortfilterproxymodel.cpp.

{
    qxt_d().m_declaringFilter = true;
}

void QxtSortFilterProxyModel::endDeclareFilter ( )

stops the filter declaration and invalidates the filter

See also:: beginDeclareFilter ( )

Definition at line 137 of file qxtsortfilterproxymodel.cpp.

{
    if(qxt_d().m_declaringFilter){
        qxt_d().m_declaringFilter = false;
        invalidateFilter();
    }
}

bool QxtSortFilterProxyModel::filterAcceptsRow	(	int	source_row,
		const QModelIndex &	source_parent
	)		const `[virtual]`

Definition at line 145 of file qxtsortfilterproxymodel.cpp.

References QxtModelFilterPrivate::acceptsValue(), and QxtModelFilterPrivate::m_role.

{
    QList<int> filterColumns = qxt_d().filters.keys();
    foreach(int currCol,filterColumns){
        QxtModelFilterPrivate filter = qxt_d().filters[currCol];
        // if the column specified by the user is -1
        // that means all columns need to pass the filter to get into the result
        if (currCol == -1) {
            int column_count = sourceModel()->columnCount(source_parent);
            for (int column = 0; column < column_count; ++column) {
                QModelIndex source_index = sourceModel()->index(source_row, column, source_parent);
                QVariant key = sourceModel()->data(source_index, filter.m_role);
                if (!filter.acceptsValue(key))
                   return false;
            }
            continue;
        }
        QModelIndex source_index = sourceModel()->index(source_row, currCol , source_parent);
        if (!source_index.isValid()) // the column may not exist
            continue;
        QVariant key = sourceModel()->data(source_index, filter.m_role);
        if(!filter.acceptsValue(key))
            return false;
    }
    return true;
}

Qt::MatchFlags QxtSortFilterProxyModel::filterFlags ( const int column ) const

returns the filter flags for the given column

Note:: if the column is not filtered it will return the default value

Definition at line 244 of file qxtsortfilterproxymodel.cpp.

{
    if(qxt_d().filters.contains(column))
        return qxt_d().filters[column].m_flags;
    return Qt::MatchContains;
}

int QxtSortFilterProxyModel::filterRole ( const int column ) const

Definition at line 233 of file qxtsortfilterproxymodel.cpp.

{
    if(qxt_d().filters.contains(column))
        return qxt_d().filters[column].m_role;
    return -1;
}

QVariant QxtSortFilterProxyModel::filterValue ( const int column ) const

Definition at line 226 of file qxtsortfilterproxymodel.cpp.

{
    if(qxt_d().filters.contains(column))
        return qxt_d().filters[column].m_value;
    return QVariant();
}

bool QxtSortFilterProxyModel::isFiltered ( const int column )

Returns:: true if the column is filtered

Definition at line 254 of file qxtsortfilterproxymodel.cpp.

{
    return qxt_d().filters.contains(column);
}

void QxtSortFilterProxyModel::removeFilter ( const int column )

Definition at line 183 of file qxtsortfilterproxymodel.cpp.

{
    if(qxt_d().filters.contains(column)){
        qxt_d().filters.remove(column);

        if(!qxt_d().m_declaringFilter)
            invalidateFilter();
    }
}

void QxtSortFilterProxyModel::setFilter	(	const int	column,
		const QVariant &	value,
		const int	role = `Qt::DisplayRole`,
		Qt::MatchFlags	flags = `Qt::MatchContains`
	)

Definition at line 172 of file qxtsortfilterproxymodel.cpp.

{
    if(qxt_d().filters.contains(column))
        qxt_d().filters[column] = QxtModelFilterPrivate(value,role,flags);
    else
        qxt_d().filters.insert(column,QxtModelFilterPrivate(value,role,flags));

    if(!qxt_d().m_declaringFilter)
        invalidateFilter();
}

void QxtSortFilterProxyModel::setFilterFlags	(	const int	column,
		const Qt::MatchFlags	flags = `Qt::MatchContains`
	)

Definition at line 215 of file qxtsortfilterproxymodel.cpp.

{
    if(qxt_d().filters.contains(column))
        qxt_d().filters[column].m_flags = flags;
    else
        qxt_d().filters.insert(column,QxtModelFilterPrivate(QVariant(),Qt::DisplayRole,flags));

    if(!qxt_d().m_declaringFilter)
        invalidateFilter();
}

void QxtSortFilterProxyModel::setFilterRole	(	const int	column,
		const int	role = `Qt::DisplayRole`
	)

Definition at line 204 of file qxtsortfilterproxymodel.cpp.

{
    if(qxt_d().filters.contains(column))
        qxt_d().filters[column].m_role=role;
    else
        qxt_d().filters.insert(column,QxtModelFilterPrivate(QVariant(),role));

    if(!qxt_d().m_declaringFilter)
        invalidateFilter();
}

void QxtSortFilterProxyModel::setFilterValue	(	const int	column,
		const QVariant &	value
	)

Definition at line 193 of file qxtsortfilterproxymodel.cpp.

{
    if(qxt_d().filters.contains(column))
        qxt_d().filters[column].m_value = value;
    else
        qxt_d().filters.insert(column,QxtModelFilterPrivate(value));

    if(!qxt_d().m_declaringFilter)
        invalidateFilter();
}

Friends And Related Function Documentation

friend class QxtSortFilterProxyModelPrivate [friend]

Definition at line 41 of file qxtsortfilterproxymodel.h.
