QxtProgressLabel Class Reference [QxtGui]

A label showing progress related time values. More...

#include <qxtprogresslabel.h>

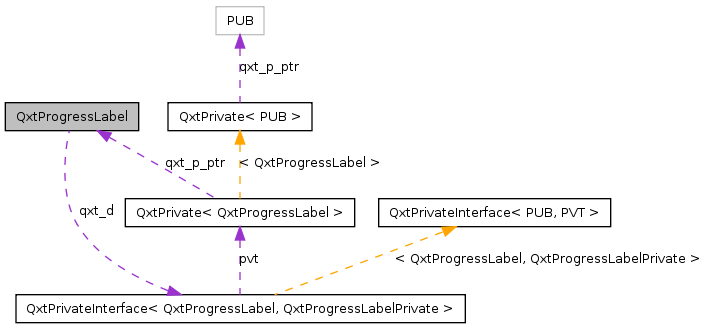

Collaboration diagram for QxtProgressLabel:

List of all members.

Public Slots
void	setValue (int value)
void	refresh ()
void	restart ()
virtual void	timerEvent (QTimerEvent *event)
Public Member Functions
	QxtProgressLabel (QWidget *parent=0, Qt::WindowFlags flags=0)
	QxtProgressLabel (const QString &text, QWidget *parent=0, Qt::WindowFlags flags=0)
virtual	~QxtProgressLabel ()
QString	contentFormat () const
void	setContentFormat (const QString &format)
QString	timeFormat () const
void	setTimeFormat (const QString &format)
int	updateInterval () const
void	setUpdateInterval (int msecs)
Properties
QString	contentFormat
	This property holds the content format of the progress label.
QString	timeFormat
	This property holds the time format of the progress label.
int	updateInterval
	This property holds the update interval of the progress label.
Friends
class	QxtProgressLabelPrivate

---

Detailed Description

A label showing progress related time values.

QxtProgressLabel is a label widget able to show elapsed and remaining time of a progress. Usage is as simple as connecting signal QProgressBar::valueChanged() to slot QxtProgressLabel::setValue().

Example usage:

    QProgressBar* bar = new QProgressBar(this);
    QxtProgressLabel* label = new QxtProgressLabel(this);
    connect(bar, SIGNAL(valueChanged(int)), label, SLOT(setValue(int)));

QxtProgressLabel in action.

Definition at line 34 of file qxtprogresslabel.h.

---

Constructor & Destructor Documentation

QxtProgressLabel::QxtProgressLabel	(	QWidget *	parent = 0,
		Qt::WindowFlags	flags = 0
	)		[explicit]

Constructs a new QxtProgressLabel with parent and flags.

Definition at line 72 of file qxtprogresslabel.cpp.

References QXT_INIT_PRIVATE, and refresh().

        : QLabel(parent, flags)
{
    QXT_INIT_PRIVATE(QxtProgressLabel);
    refresh();
}

QxtProgressLabel::QxtProgressLabel	(	const QString &	text,
		QWidget *	parent = 0,
		Qt::WindowFlags	flags = 0
	)		[explicit]

Constructs a new QxtProgressLabel with text, parent and flags.

Definition at line 82 of file qxtprogresslabel.cpp.

References QXT_INIT_PRIVATE, and refresh().

        : QLabel(text, parent, flags)
{
    QXT_INIT_PRIVATE(QxtProgressLabel);
    refresh();
}

QxtProgressLabel::~QxtProgressLabel

(

)

[virtual]

Destructs the progress label.

Definition at line 92 of file qxtprogresslabel.cpp.

{}

---

Member Function Documentation

QString QxtProgressLabel::contentFormat

(

)

const

void QxtProgressLabel::refresh

(

)

[slot]

Refreshes the content.

Definition at line 213 of file qxtprogresslabel.cpp.

Referenced by QxtProgressLabel(), restart(), setContentFormat(), setTimeFormat(), setValue(), and timerEvent().

{
    // elapsed
    qreal elapsed = 0;
    if (qxt_d().start.isValid())
        elapsed = qxt_d().start.elapsed() / 1000.0;
    QTime etime(0, 0);
    etime = etime.addSecs(static_cast<int>(elapsed));

    // percentage
    qreal percent = 0;
    if (qxt_d().cachedMax != 0)
        percent = (qxt_d().cachedVal - qxt_d().cachedMin) / static_cast<qreal>(qxt_d().cachedMax);
    qreal total = 0;
    if (percent != 0)
        total = elapsed / percent;

    // remaining
    QTime rtime(0, 0);
    rtime = rtime.addSecs(static_cast<int>(total - elapsed));

    // format
    QString tformat = qxt_d().tformat;
    if (tformat.isEmpty())
        tformat = tr("mm:ss");
    QString cformat = qxt_d().cformat;
    if (cformat.isEmpty())
        cformat = tr("ETA: %r");

    QString result = QString(cformat).replace("%e", etime.toString(tformat));
    result = result.replace("%r", rtime.toString(tformat));
    setText(result);
}

void QxtProgressLabel::restart

(

)

[slot]

Restarts the calculation of elapsed and remaining times.

Definition at line 201 of file qxtprogresslabel.cpp.

References refresh().

Referenced by setValue().

{
    qxt_d().cachedMin = 0;
    qxt_d().cachedMax = 0;
    qxt_d().cachedVal = 0;
    qxt_d().start.restart();
    refresh();
}

void QxtProgressLabel::setContentFormat

(

const QString &

format )

Definition at line 116 of file qxtprogresslabel.cpp.

References refresh().

{
    if (qxt_d().cformat != format)
    {
        qxt_d().cformat = format;
        refresh();
    }
}

void QxtProgressLabel::setTimeFormat

(

const QString &

format )

Definition at line 139 of file qxtprogresslabel.cpp.

References refresh().

{
    if (qxt_d().tformat != format)
    {
        qxt_d().tformat = format;
        refresh();
    }
}

void QxtProgressLabel::setUpdateInterval

(

int

msecs )

Definition at line 161 of file qxtprogresslabel.cpp.

{
    qxt_d().interval = msecs;
    if (msecs < 0)
    {
        if (qxt_d().timer.isActive())
            qxt_d().timer.stop();
    }
    else
    {
        if (!qxt_d().timer.isActive())
            qxt_d().timer.start(msecs, this);
    }
}

void QxtProgressLabel::setValue

(

int

value )

[slot]

Sets the current value to value.

Note:

Calling this slot by hand has no effect. Connect this slot to QProgressBar::valueChange().

Definition at line 182 of file qxtprogresslabel.cpp.

References refresh(), and restart().

{
    QProgressBar* bar = qobject_cast<QProgressBar*>(sender());
    if (bar)
    {
        if (!qxt_d().start.isValid())
            restart();

        qxt_d().cachedMin = bar->minimum();
        qxt_d().cachedMax = bar->maximum();
        qxt_d().cachedVal = value;

        refresh();
    }
}

QString QxtProgressLabel::timeFormat

(

)

const

void QxtProgressLabel::timerEvent

(

QTimerEvent *

event )

[virtual, slot]

Definition at line 250 of file qxtprogresslabel.cpp.

References refresh().

{
    Q_UNUSED(event);
    refresh();
}

int QxtProgressLabel::updateInterval

(

)

const

---

Friends And Related Function Documentation

friend class QxtProgressLabelPrivate [friend]

Definition at line 37 of file qxtprogresslabel.h.

---

Property Documentation

QString QxtProgressLabel::contentFormat [read, write]

This property holds the content format of the progress label.

The content of the label is formatted according to this property. The default value is an empty string which defaults to "ETA: %r".

The following variables may be used in the format string:

Variable	Output
%e	elapsed time
%r	remaining time

See also:

timeFormat

Definition at line 37 of file qxtprogresslabel.h.

QString QxtProgressLabel::timeFormat [read, write]

This property holds the time format of the progress label.

Time values are formatted according to this property. The default value is an empty string which defaults to "mm:ss".

See also:

contentFormat, QTime::toString()

Definition at line 39 of file qxtprogresslabel.h.

int QxtProgressLabel::updateInterval [read, write]

This property holds the update interval of the progress label.

The content of the progress label is updated according to this interval. A negative interval makes the content to update only during value changes. The default value is -1.

Definition at line 40 of file qxtprogresslabel.h.

---

The documentation for this class was generated from the following files:

• qxtprogresslabel.h
• qxtprogresslabel.cpp
