QxtLetterBoxWidget Class Reference [QxtGui]

A letter box widget. More...

#include <qxtletterboxwidget.h>

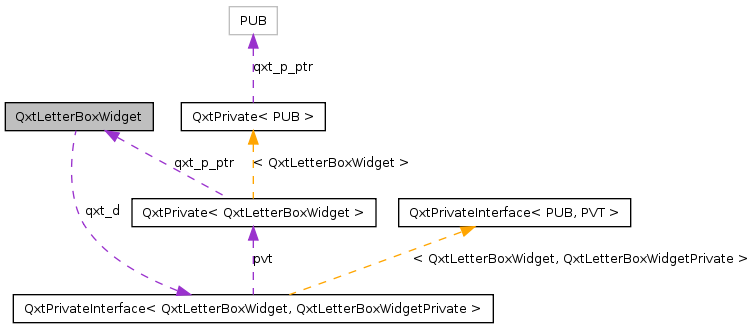

Collaboration diagram for QxtLetterBoxWidget:

List of all members.

Public Slots
void	resizeWidget ()
Public Member Functions
	QxtLetterBoxWidget (QWidget *parent=0)
	~QxtLetterBoxWidget ()
QColor	backgroundColor () const
void	setBackgroundColor (const QColor &color)
void	clearBackgroundColor ()
int	margin () const
void	setMargin (int margin)
QWidget *	widget () const
void	setWidget (QWidget *widget)
uint	resizeDelay () const
void	setResizeDelay (uint delay)
Protected Member Functions
void	resizeEvent (QResizeEvent *event)
Properties
QColor	backgroundColor
	This property holds the background color.
int	margin
	This property holds the margin.
uint	resizeDelay
	This property holds the delay of resize.
Friends
class	QxtLetterBoxWidgetPrivate

---

Detailed Description

A letter box widget.

QxtLetterBoxWidget preserves the aspect ratio of its content widget.

Use QWidget::sizeIncrement to define the aspect ratio:

    QxtLetterBoxWidget letterBox;
    widget->setSizeIncrement(16, 9);
    letterBox.setWidget(widget);
    letterBox.show();

Definition at line 34 of file qxtletterboxwidget.h.

---

Constructor & Destructor Documentation

QxtLetterBoxWidget::QxtLetterBoxWidget

(

QWidget *

parent = 0 )

Constructs a new QxtLetterBoxWidget with parent.

Definition at line 54 of file qxtletterboxwidget.cpp.

References QXT_INIT_PRIVATE, and resizeWidget().

                                                      : QFrame(parent)
{
    QXT_INIT_PRIVATE(QxtLetterBoxWidget);
    connect(&qxt_d().timer, SIGNAL(timeout()), this, SLOT(resizeWidget()));
}

QxtLetterBoxWidget::~QxtLetterBoxWidget

(

)

Destructs the group box.

Definition at line 63 of file qxtletterboxwidget.cpp.

{
}

---

Member Function Documentation

QColor QxtLetterBoxWidget::backgroundColor

(

)

const

void QxtLetterBoxWidget::clearBackgroundColor

(

)

Definition at line 90 of file qxtletterboxwidget.cpp.

References setBackgroundColor().

{
    setBackgroundColor(QColor());
    setAutoFillBackground(false);
}

int QxtLetterBoxWidget::margin

(

)

const

Referenced by resizeWidget(), and setMargin().

uint QxtLetterBoxWidget::resizeDelay

(

)

const

Referenced by resizeEvent().

void QxtLetterBoxWidget::resizeEvent

(

QResizeEvent *

event )

[protected]

Definition at line 185 of file qxtletterboxwidget.cpp.

References resizeDelay(), and resizeWidget().

{
    QFrame::resizeEvent(event);
    if (resizeDelay() > 0)
        qxt_d().timer.start();
    else
        resizeWidget();
}

void QxtLetterBoxWidget::resizeWidget

(

)

[slot]

Resizes the content widget.

Definition at line 169 of file qxtletterboxwidget.cpp.

References margin().

Referenced by QxtLetterBoxWidget(), resizeEvent(), setMargin(), and setWidget().

{
    if (qxt_d().center)
    {
        QSize s = qxt_d().center->sizeIncrement();
        s.scale(size(), Qt::KeepAspectRatio);
        s -= QSize(2 * qxt_d().margin, 2 * qxt_d().margin);
        s = QLayout::closestAcceptableSize(qxt_d().center, s);
        QRect r = QStyle::alignedRect(Qt::LeftToRight, Qt::AlignCenter, s, rect());
        qxt_d().center->setGeometry(r);
    }
}

void QxtLetterBoxWidget::setBackgroundColor

(

const QColor &

color )

Definition at line 82 of file qxtletterboxwidget.cpp.

Referenced by clearBackgroundColor().

{
    QPalette pal = palette();
    pal.setColor(QPalette::Window, color);
    setPalette(pal);
    setAutoFillBackground(true);
}

void QxtLetterBoxWidget::setMargin

(

int

margin )

Definition at line 107 of file qxtletterboxwidget.cpp.

References margin(), and resizeWidget().

{
    if (qxt_d().margin != margin)
    {
        qxt_d().margin = margin;
        resizeWidget();
    }
}

void QxtLetterBoxWidget::setResizeDelay

(

uint

delay )

Definition at line 161 of file qxtletterboxwidget.cpp.

{
    qxt_d().timer.setInterval(delay);
}

void QxtLetterBoxWidget::setWidget

(

QWidget *

widget )

Sets the given widget to be the letter box's widget.

Note:

QxtLetterBox takes ownership of the widget pointer and deletes it at the appropriate time.

See also:

widget()

Definition at line 135 of file qxtletterboxwidget.cpp.

References resizeWidget(), and widget().

{
    if (qxt_d().center && qxt_d().center != widget)
        qxt_d().center->deleteLater();
    qxt_d().center = widget;
    if (widget)
    {
        widget->setParent(this);
        resizeWidget();
    }
}

QWidget * QxtLetterBoxWidget::widget

(

)

const

Returns the widget for the letter box. This function returns zero if the widget has not been set.

See also:

setWidget()

Definition at line 122 of file qxtletterboxwidget.cpp.

Referenced by setWidget().

{
    return qxt_d().center;
}

---

Friends And Related Function Documentation

friend class QxtLetterBoxWidgetPrivate [friend]

Definition at line 37 of file qxtletterboxwidget.h.

---

Property Documentation

QColor QxtLetterBoxWidget::backgroundColor [read, write]

This property holds the background color.

This property is provided for convenience. This property corresponds to QPalette::Window.

Note:

Setting or clearing the property also sets the property QWidget::autoFillBackground as true or false, respectively.

Definition at line 37 of file qxtletterboxwidget.h.

int QxtLetterBoxWidget::margin [read, write]

This property holds the margin.

The default value is 0.

Definition at line 39 of file qxtletterboxwidget.h.

uint QxtLetterBoxWidget::resizeDelay [read, write]

This property holds the delay of resize.

The default value is 0 which means immediate resize.

Using a short resize delay might be useful if the widget is complex and resizing it is expensive.

Definition at line 40 of file qxtletterboxwidget.h.

---

The documentation for this class was generated from the following files:

• qxtletterboxwidget.h
• qxtletterboxwidget.cpp
