QxtCheckComboBox Class Reference [QxtGui]

An extended QComboBox with checkable items. More...

#include <qxtcheckcombobox.h>

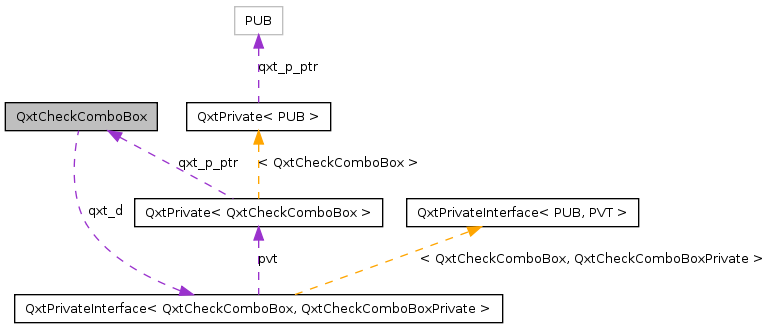

Collaboration diagram for QxtCheckComboBox:

List of all members.

Public Slots
void	setCheckedItems (const QStringList &items)
Signals
void	checkedItemsChanged (const QStringList &items)
Public Member Functions
	QxtCheckComboBox (QWidget *parent=0)
virtual	~QxtCheckComboBox ()
virtual void	hidePopup ()
QString	defaultText () const
void	setDefaultText (const QString &text)
Qt::CheckState	itemCheckState (int index) const
void	setItemCheckState (int index, Qt::CheckState state)
QString	separator () const
void	setSeparator (const QString &separator)
QStringList	checkedItems () const
Properties
QString	separator
	This property holds the default separator.
QString	defaultText
	This property holds the default text.
QStringList	checkedItems
	This property holds the checked items.
Friends
class	QxtCheckComboBoxPrivate

---

Detailed Description

An extended QComboBox with checkable items.

QxtComboBox is a specialized combo box with checkable items. Checked items are collected together in the line edit.

QxtCheckComboBox in Plastique style.

Definition at line 35 of file qxtcheckcombobox.h.

---

Constructor & Destructor Documentation

QxtCheckComboBox::QxtCheckComboBox

(

QWidget *

parent = 0 )

[explicit]

Constructs a new QxtCheckComboBox with parent.

Definition at line 162 of file qxtcheckcombobox.cpp.

References QXT_INIT_PRIVATE.

                                                  : QComboBox(parent)
{
    QXT_INIT_PRIVATE(QxtCheckComboBox);
    setModel(new QxtCheckComboModel(this));
    connect(this, SIGNAL(activated(int)), &qxt_d(), SLOT(toggleCheckState(int)));
    connect(model(), SIGNAL(checkStateChanged()), &qxt_d(), SLOT(updateCheckedItems()));
    connect(model(), SIGNAL(rowsInserted(const QModelIndex &, int, int)), &qxt_d(), SLOT(updateCheckedItems()));
    connect(model(), SIGNAL(rowsRemoved(const QModelIndex &, int, int)), &qxt_d(), SLOT(updateCheckedItems()));

    // read-only contents
    QLineEdit* lineEdit = new QLineEdit(this);
    lineEdit->setReadOnly(true);
    setLineEdit(lineEdit);
    setInsertPolicy(QComboBox::NoInsert);

    view()->installEventFilter(&qxt_d());
    view()->window()->installEventFilter(&qxt_d());
    view()->viewport()->installEventFilter(&qxt_d());
    this->installEventFilter(&qxt_d());
}

QxtCheckComboBox::~QxtCheckComboBox

(

)

[virtual]

Destructs the combo box.

Definition at line 186 of file qxtcheckcombobox.cpp.

{
}

---

Member Function Documentation

QStringList QxtCheckComboBox::checkedItems

(

)

const

QxtCheckComboBox::checkedItemsChanged

(

const QStringList &

items )

[signal]

This signal is emitted whenever the checked items have been changed.

Referenced by QxtCheckComboBoxPrivate::updateCheckedItems().

QString QxtCheckComboBox::defaultText

(

)

const

Referenced by setDefaultText().

void QxtCheckComboBox::hidePopup

(

)

[virtual]

Definition at line 193 of file qxtcheckcombobox.cpp.

{
    if (qxt_d().containerMousePress)
        QComboBox::hidePopup();
}

Qt::CheckState QxtCheckComboBox::itemCheckState

(

int

index )

const

Returns the check state of the item at index.

Definition at line 202 of file qxtcheckcombobox.cpp.

{
    return static_cast<Qt::CheckState>(itemData(index, Qt::CheckStateRole).toInt());
}

QString QxtCheckComboBox::separator

(

)

const

Referenced by setSeparator().

void QxtCheckComboBox::setCheckedItems

(

const QStringList &

items )

[slot]

Definition at line 232 of file qxtcheckcombobox.cpp.

References setItemCheckState().

{
    // not the most efficient solution but most likely nobody
    // will put too many items into a combo box anyway so...
    foreach(const QString& text, items)
    {
        const int index = findText(text);
        setItemCheckState(index, index != -1 ? Qt::Checked : Qt::Unchecked);
    }
}

void QxtCheckComboBox::setDefaultText

(

const QString &

text )

Definition at line 255 of file qxtcheckcombobox.cpp.

References defaultText().

{
    if (qxt_d().defaultText != text)
    {
        qxt_d().defaultText = text;
        qxt_d().updateCheckedItems();
    }
}

void QxtCheckComboBox::setItemCheckState	(	int	index,
		Qt::CheckState	state
	)

Sets the check state of the item at index to state.

Definition at line 210 of file qxtcheckcombobox.cpp.

Referenced by setCheckedItems().

{
    setItemData(index, state, Qt::CheckStateRole);
}

void QxtCheckComboBox::setSeparator

(

const QString &

separator )

Definition at line 276 of file qxtcheckcombobox.cpp.

References separator().

{
    if (qxt_d().separator != separator)
    {
        qxt_d().separator = separator;
        qxt_d().updateCheckedItems();
    }
}

---

Friends And Related Function Documentation

friend class QxtCheckComboBoxPrivate [friend]

Definition at line 38 of file qxtcheckcombobox.h.

---

Property Documentation

QStringList QxtCheckComboBox::checkedItems [read, write]

This property holds the checked items.

Definition at line 41 of file qxtcheckcombobox.h.

Referenced by QxtCheckComboBoxPrivate::updateCheckedItems().

QString QxtCheckComboBox::defaultText [read, write]

This property holds the default text.

The default text is shown when there are no checked items. The default value is an empty string.

Definition at line 40 of file qxtcheckcombobox.h.

QString QxtCheckComboBox::separator [read, write]

This property holds the default separator.

The checked items are joined together with the separator string. The default value is a comma (",").

Definition at line 38 of file qxtcheckcombobox.h.

---

The documentation for this class was generated from the following files:

• qxtcheckcombobox.h
• qxtcheckcombobox.cpp
