The Wheel Widget. More...

#include <qwt_wheel.h>

Inheritance diagram for QwtWheel:

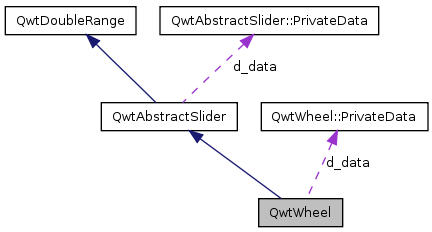

Collaboration diagram for QwtWheel:

Classes
class	PrivateData
Public Member Functions
	QwtWheel (QWidget *parent=NULL)
	Constructor.
	QwtWheel (QWidget parent, const char name)
virtual	~QwtWheel ()
	Destructor.
virtual void	setOrientation (Qt::Orientation)
	Set the wheel's orientation.
double	totalAngle () const
double	viewAngle () const
int	tickCnt () const
int	internalBorder () const
double	mass () const
void	setTotalAngle (double angle)
	Set the total angle which the wheel can be turned.
void	setTickCnt (int cnt)
	Adjust the number of grooves in the wheel's surface.
void	setViewAngle (double angle)
	Specify the visible portion of the wheel.
void	setInternalBorder (int width)
	Set the internal border width of the wheel.
void	setMass (double val)
	Set the mass of the wheel.
void	setWheelWidth (int w)
	Set the width of the wheel.
virtual QSize	sizeHint () const
virtual QSize	minimumSizeHint () const
	Return a minimum size hint.
Protected Member Functions
virtual void	resizeEvent (QResizeEvent *e)
	Qt Resize Event.
virtual void	paintEvent (QPaintEvent *e)
	Qt Paint Event.
void	layoutWheel (bool update=true)
	Recalculate the slider's geometry and layout based on.
void	draw (QPainter *p, const QRect &update_rect)
void	drawWheel (QPainter *p, const QRect &r)
	Redraw the wheel.
void	drawWheelBackground (QPainter *p, const QRect &r)
void	setColorArray ()
	Set up the color array for the background pixmap.
virtual void	valueChange ()
	Notify value change.
virtual void	paletteChange (const QPalette &)
	Call update() when the palette changes.
virtual double	getValue (const QPoint &p)
	Determine the value corresponding to a specified point.
virtual void	getScrollMode (const QPoint &p, int &scrollMode, int &direction)
	Determine the scrolling mode and direction corresponding to a specified point.
Properties
double	totalAngle
double	viewAngle
int	tickCnt
int	internalBorder
double	mass

Detailed Description

The Wheel Widget.

The wheel widget can be used to change values over a very large range in very small steps. Using the setMass member, it can be configured as a flywheel.

See also:: The radio example.

Definition at line 25 of file qwt_wheel.h.

Constructor & Destructor Documentation

QwtWheel::QwtWheel ( QWidget * parent = NULL ) [explicit]

Constructor.

Definition at line 51 of file qwt_wheel.cpp.

                                 :
    QwtAbstractSlider(Qt::Horizontal, parent)
{
    initWheel();
}

QwtWheel::QwtWheel	(	QWidget *	parent,
		const char *	name
	)		`[explicit]`

Definition at line 58 of file qwt_wheel.cpp.

                                                   :
    QwtAbstractSlider(Qt::Horizontal, parent)
{
    setName(name);
    initWheel();
}

QwtWheel::~QwtWheel ( ) [virtual]

Destructor.

Definition at line 86 of file qwt_wheel.cpp.

References QwtWheel::PrivateData::allocContext.

{
#if QT_VERSION < 0x040000
    if ( d_data->allocContext )
        QColor::destroyAllocContext( d_data->allocContext );
#endif
    delete d_data;
}

Member Function Documentation

void QwtWheel::draw	(	QPainter *	painter,
		const QRect &	update_rect
	)		`[protected]`

Redraw panel and wheel

Parameters:

painter Painter

Definition at line 600 of file qwt_wheel.cpp.

References QwtWheel::PrivateData::borderWidth, QwtPainter::drawFocusRect(), drawWheel(), and QwtWheel::PrivateData::sliderRect.

Referenced by paintEvent().

{
    qDrawShadePanel( painter, rect().x(), rect().y(),
        rect().width(), rect().height(),
#if QT_VERSION < 0x040000
        colorGroup(),
#else
        palette(),
#endif
        true, d_data->borderWidth );

    drawWheel( painter, d_data->sliderRect );

    if ( hasFocus() )
        QwtPainter::drawFocusRect(painter, this);
}

void QwtWheel::drawWheel	(	QPainter *	painter,
		const QRect &	r
	)		`[protected]`

Redraw the wheel.

Parameters:

painter	painter
r	contents rectangle

Definition at line 408 of file qwt_wheel.cpp.

References drawWheelBackground(), int(), QwtWheel::PrivateData::intBorder, M_PI, QwtDoubleRange::maxValue(), QwtDoubleRange::minValue(), QwtAbstractSlider::orientation(), qwtAbs, sign(), QwtWheel::PrivateData::tickCnt, QwtWheel::PrivateData::totalAngle, QwtDoubleRange::value(), and QwtWheel::PrivateData::viewAngle.

Referenced by draw().

{
    //
    // draw background gradient
    //
    drawWheelBackground( painter, r );

    if ( maxValue() == minValue() || d_data->totalAngle == 0.0 )
        return;

#if QT_VERSION < 0x040000
    const QColor light = colorGroup().light();
    const QColor dark = colorGroup().dark();
#else
    const QColor light = palette().color(QPalette::Light);
    const QColor dark = palette().color(QPalette::Dark);
#endif

    const double sign = (minValue() < maxValue()) ? 1.0 : -1.0;
    double cnvFactor = qwtAbs(d_data->totalAngle / (maxValue() - minValue()));
    const double halfIntv = 0.5 * d_data->viewAngle / cnvFactor;
    const double loValue = value() - halfIntv;
    const double hiValue = value() + halfIntv;
    const double tickWidth = 360.0 / double(d_data->tickCnt) / cnvFactor;
    const double sinArc = sin(d_data->viewAngle * M_PI / 360.0);
    cnvFactor *= M_PI / 180.0;


    //
    // draw grooves
    //
    if ( orientation() == Qt::Horizontal )
    {
        const double halfSize = double(r.width()) * 0.5;

        int l1 = r.y() + d_data->intBorder;
        int l2 = r.y() + r.height() - d_data->intBorder - 1;

        // draw one point over the border if border > 1
        if ( d_data->intBorder > 1 )
        {
            l1 --;
            l2 ++;
        }

        const int maxpos = r.x() + r.width() - 2;
        const int minpos = r.x() + 2;

        //
        // draw tick marks
        //
        for ( double tickValue = ceil(loValue / tickWidth) * tickWidth;
            tickValue < hiValue; tickValue += tickWidth )
        {
            //
            //  calculate position
            //
            const int tickPos = r.x() + r.width()
                - int( halfSize
                    * (sinArc + sign *  sin((tickValue - value()) * cnvFactor))
                    / sinArc);
            //
            // draw vertical line
            //
            if ( (tickPos <= maxpos) && (tickPos > minpos) )
            {
                painter->setPen(dark);
                painter->drawLine(tickPos -1 , l1, tickPos - 1,  l2 );
                painter->setPen(light);
                painter->drawLine(tickPos, l1, tickPos, l2);
            }
        }
    }
    else if ( orientation() == Qt::Vertical )
    {
        const double halfSize = double(r.height()) * 0.5;

        int l1 = r.x() + d_data->intBorder;
        int l2 = r.x() + r.width() - d_data->intBorder - 1;

        if ( d_data->intBorder > 1 )
        {
            l1--;
            l2++;
        }

        const int maxpos = r.y() + r.height() - 2;
        const int minpos = r.y() + 2;

        //
        // draw tick marks
        //
        for ( double tickValue = ceil(loValue / tickWidth) * tickWidth;
            tickValue < hiValue; tickValue += tickWidth )
        {

            //
            // calculate position
            //
            const int tickPos = r.y() + int( halfSize *
                (sinArc + sign * sin((tickValue - value()) * cnvFactor))
                / sinArc);

            //
            //  draw horizontal line
            //
            if ( (tickPos <= maxpos) && (tickPos > minpos) )
            {
                painter->setPen(dark);
                painter->drawLine(l1, tickPos - 1 ,l2, tickPos - 1);
                painter->setPen(light);
                painter->drawLine(l1, tickPos, l2, tickPos);
            }
        }
    }
}

void QwtWheel::drawWheelBackground	(	QPainter *	painter,
		const QRect &	r
	)		`[protected]`

Draw the Wheel's background gradient

Parameters:

painter	Painter
r	Bounding rectangle

Definition at line 214 of file qwt_wheel.cpp.

References QwtWheel::PrivateData::colors, QwtWheel::PrivateData::intBorder, NUM_COLORS, QwtAbstractSlider::orientation(), qwtAbs, and setColorArray().

Referenced by drawWheel().

{
    painter->save();

    //
    // initialize pens
    //
#if QT_VERSION < 0x040000
    const QColor light = colorGroup().light();
    const QColor dark = colorGroup().dark();
#else
    const QColor light = palette().color(QPalette::Light);
    const QColor dark = palette().color(QPalette::Dark);
#endif

    QPen lightPen;
    lightPen.setColor(light);
    lightPen.setWidth(d_data->intBorder);

    QPen darkPen;
    darkPen.setColor(dark);
    darkPen.setWidth(d_data->intBorder);

    setColorArray();

    //
    // initialize auxiliary variables
    //

    const int nFields = NUM_COLORS * 13 / 10;
    const int hiPos = nFields - NUM_COLORS + 1;

    if ( orientation() == Qt::Horizontal )
    {
        const int rx = r.x();
        int ry = r.y() + d_data->intBorder;
        const int rh = r.height() - 2* d_data->intBorder;
        const int rw = r.width();
        //
        //  draw shaded background
        //
        int x1 = rx;
        for (int i = 1; i < nFields; i++ )
        {
            const int x2 = rx + (rw * i) / nFields;
            painter->fillRect(x1, ry, x2-x1 + 1 ,rh,
                d_data->colors[qwtAbs(i-hiPos)]);
            x1 = x2 + 1;
        }
        painter->fillRect(x1, ry, rw - (x1 - rx), rh,
            d_data->colors[NUM_COLORS - 1]);

        //
        // draw internal border
        //
        painter->setPen(lightPen);
        ry = r.y() + d_data->intBorder / 2;
        painter->drawLine(r.x(), ry, r.x() + r.width() , ry);

        painter->setPen(darkPen);
        ry = r.y() + r.height() - (d_data->intBorder - d_data->intBorder / 2);
        painter->drawLine(r.x(), ry , r.x() + r.width(), ry);
    }
    else // Qt::Vertical
    {
        int rx = r.x() + d_data->intBorder;
        const int ry = r.y();
        const int rh = r.height();
        const int rw = r.width() - 2 * d_data->intBorder;

        //
        // draw shaded background
        //
        int y1 = ry;
        for ( int i = 1; i < nFields; i++ )
        {
            const int y2 = ry + (rh * i) / nFields;
            painter->fillRect(rx, y1, rw, y2-y1 + 1,
                d_data->colors[qwtAbs(i-hiPos)]);
            y1 = y2 + 1;
        }
        painter->fillRect(rx, y1, rw, rh - (y1 - ry),
            d_data->colors[NUM_COLORS - 1]);

        //
        //  draw internal borders
        //
        painter->setPen(lightPen);
        rx = r.x() + d_data->intBorder / 2;
        painter->drawLine(rx, r.y(), rx, r.y() + r.height());

        painter->setPen(darkPen);
        rx = r.x() + r.width() - (d_data->intBorder - d_data->intBorder / 2);
        painter->drawLine(rx, r.y(), rx , r.y() + r.height());
    }

    painter->restore();
}

void QwtWheel::getScrollMode	(	const QPoint &	p,
		int &	scrollMode,
		int &	direction
	)		`[protected, virtual]`

Determine the scrolling mode and direction corresponding to a specified point.

Parameters:

p	point
scrollMode	scrolling mode
direction	direction

Implements QwtAbstractSlider.

Definition at line 632 of file qwt_wheel.cpp.

References QwtAbstractSlider::ScrMouse, QwtAbstractSlider::ScrNone, and QwtWheel::PrivateData::sliderRect.

{
    if ( d_data->sliderRect.contains(p) )
        scrollMode = ScrMouse;
    else
        scrollMode = ScrNone;

    direction = 0;
}

double QwtWheel::getValue ( const QPoint & p ) [protected, virtual]

Determine the value corresponding to a specified point.

Implements QwtAbstractSlider.

Definition at line 527 of file qwt_wheel.cpp.

References QwtDoubleRange::maxValue(), QwtDoubleRange::minValue(), QwtAbstractSlider::orientation(), QwtWheel::PrivateData::sliderRect, QwtWheel::PrivateData::totalAngle, and QwtWheel::PrivateData::viewAngle.

{
    // The reference position is arbitrary, but the
    // sign of the offset is important
    int w, dx;
    if ( orientation() == Qt::Vertical )
    {
        w = d_data->sliderRect.height();
        dx = d_data->sliderRect.y() - p.y();
    }
    else
    {
        w = d_data->sliderRect.width();
        dx = p.x() - d_data->sliderRect.x();
    }

    // w pixels is an arc of viewAngle degrees,
    // so we convert change in pixels to change in angle
    const double ang = dx * d_data->viewAngle / w;

    // value range maps to totalAngle degrees,
    // so convert the change in angle to a change in value
    const double val = ang * ( maxValue() - minValue() ) / d_data->totalAngle;

    // Note, range clamping and rasterizing to step is automatically
    // handled by QwtAbstractSlider, so we simply return the change in value
    return val;
}

int QwtWheel::internalBorder ( ) const

void QwtWheel::layoutWheel ( bool update = true ) [protected]

Recalculate the slider's geometry and layout based on.

Definition at line 566 of file qwt_wheel.cpp.

References QwtWheel::PrivateData::borderWidth, and QwtWheel::PrivateData::sliderRect.

Referenced by resizeEvent(), setInternalBorder(), setOrientation(), and setWheelWidth().

{
    const QRect r = this->rect();
    d_data->sliderRect.setRect(r.x() + d_data->borderWidth, r.y() + d_data->borderWidth,
        r.width() - 2*d_data->borderWidth, r.height() - 2*d_data->borderWidth);

    if ( update_geometry )
    {
        updateGeometry();
        update();
    }
}

double QwtWheel::mass ( ) const [virtual]

Reimplemented from QwtAbstractSlider.

QSize QwtWheel::minimumSizeHint ( ) const [virtual]

Return a minimum size hint.

Warning:: The return value is based on the wheel width.

Definition at line 678 of file qwt_wheel.cpp.

References QwtWheel::PrivateData::borderWidth, QwtAbstractSlider::orientation(), and QwtWheel::PrivateData::wheelWidth.

Referenced by sizeHint().

{
    QSize sz( 3*d_data->wheelWidth + 2*d_data->borderWidth,
    d_data->wheelWidth + 2*d_data->borderWidth );
    if ( orientation() != Qt::Horizontal )
        sz.transpose();
    return sz;
}

void QwtWheel::paintEvent ( QPaintEvent * e ) [protected, virtual]

Qt Paint Event.

Definition at line 580 of file qwt_wheel.cpp.

References draw(), and QwtPaintBuffer::painter().

{
    // Use double-buffering
    const QRect &ur = e->rect();
    if ( ur.isValid() )
    {
#if QT_VERSION < 0x040000
        QwtPaintBuffer paintBuffer(this, ur);
        draw(paintBuffer.painter(), ur);
#else
        QPainter painter(this);
        draw(&painter, ur);
#endif
    }
}

void QwtWheel::paletteChange ( const QPalette & ) [protected, virtual]

Call update() when the palette changes.

Definition at line 690 of file qwt_wheel.cpp.

{
    update();
}

void QwtWheel::resizeEvent ( QResizeEvent * e ) [protected, virtual]

Qt Resize Event.

Definition at line 557 of file qwt_wheel.cpp.

References layoutWheel().

{
    layoutWheel( false );
}

void QwtWheel::setColorArray ( ) [protected]

Set up the color array for the background pixmap.

Definition at line 96 of file qwt_wheel.cpp.

References QwtWheel::PrivateData::allocContext, QwtWheel::PrivateData::colors, and NUM_COLORS.

Referenced by drawWheelBackground().

{
    if ( !d_data->colors )
        return;

#if QT_VERSION < 0x040000
    const QColor light = colorGroup().light();
    const QColor dark = colorGroup().dark();
#else
    const QColor light = palette().color(QPalette::Light);
    const QColor dark = palette().color(QPalette::Dark);
#endif

    if ( !d_data->colors[0].isValid() ||
        d_data->colors[0] != light ||
        d_data->colors[NUM_COLORS - 1] != dark )
    {
#if QT_VERSION < 0x040000
        if ( d_data->allocContext )
            QColor::destroyAllocContext( d_data->allocContext );

        d_data->allocContext = QColor::enterAllocContext();
#endif

        d_data->colors[0] = light;
        d_data->colors[NUM_COLORS - 1] = dark;

        int dh, ds, dv, lh, ls, lv;
#if QT_VERSION < 0x040000
        d_data->colors[0].rgb(&lh, &ls, &lv);
        d_data->colors[NUM_COLORS - 1].rgb(&dh, &ds, &dv);
#else
        d_data->colors[0].getRgb(&lh, &ls, &lv);
        d_data->colors[NUM_COLORS - 1].getRgb(&dh, &ds, &dv);
#endif

        for ( int i = 1; i < NUM_COLORS - 1; ++i )
        {
            const double factor = double(i) / double(NUM_COLORS);

            d_data->colors[i].setRgb( lh + int( double(dh - lh) * factor ),
                      ls + int( double(ds - ls) * factor ),
                      lv + int( double(dv - lv) * factor ));
        }
#if QT_VERSION < 0x040000
        QColor::leaveAllocContext();
#endif
    }
}

void QwtWheel::setInternalBorder ( int w )

Set the internal border width of the wheel.

The internal border must not be smaller than 1 and is limited in dependence on the wheel's size. Values outside the allowed range will be clipped.

The internal border defaults to 2.

Parameters:

w	border width

See also:: internalBorder()

Definition at line 191 of file qwt_wheel.cpp.

References QwtWheel::PrivateData::intBorder, layoutWheel(), qwtMax, and qwtMin.

{
    const int d = qwtMin( width(), height() ) / 3;
    w = qwtMin( w, d );
    d_data->intBorder = qwtMax( w, 1 );
    layoutWheel();
}

void QwtWheel::setMass ( double val ) [virtual]

Set the mass of the wheel.

Assigning a mass turns the wheel into a flywheel.

Parameters:

val	the wheel's mass

Reimplemented from QwtAbstractSlider.

Definition at line 648 of file qwt_wheel.cpp.

{
    QwtAbstractSlider::setMass(val);
}

void QwtWheel::setOrientation ( Qt::Orientation o ) [virtual]

Set the wheel's orientation.

Parameters:

o	Orientation. Allowed values are Qt::Horizontal and Qt::Vertical. Defaults to Qt::Horizontal.

See also:: QwtAbstractSlider::orientation()

Definition at line 352 of file qwt_wheel.cpp.

References layoutWheel(), and QwtAbstractSlider::orientation().

{
    if ( orientation() == o )
        return;

#if QT_VERSION >= 0x040000
    if ( !testAttribute(Qt::WA_WState_OwnSizePolicy) )
#else
    if ( !testWState( WState_OwnSizePolicy ) )
#endif
    {
        QSizePolicy sp = sizePolicy();
        sp.transpose();
        setSizePolicy(sp);

#if QT_VERSION >= 0x040000
        setAttribute(Qt::WA_WState_OwnSizePolicy, false);
#else
        clearWState( WState_OwnSizePolicy );
#endif
    }

    QwtAbstractSlider::setOrientation(o);
    layoutWheel();
}

void QwtWheel::setTickCnt ( int cnt )

Adjust the number of grooves in the wheel's surface.

The number of grooves is limited to 6 <= cnt <= 50. Values outside this range will be clipped. The default value is 10.

Parameters:

cnt	Number of grooves per 360 degrees

See also:: tickCnt()

Definition at line 156 of file qwt_wheel.cpp.

References qwtLim(), and QwtWheel::PrivateData::tickCnt.

{
    d_data->tickCnt = qwtLim( cnt, 6, 50 );
    update();
}

void QwtWheel::setTotalAngle ( double angle )

Set the total angle which the wheel can be turned.

One full turn of the wheel corresponds to an angle of 360 degrees. A total angle of n*360 degrees means that the wheel has to be turned n times around its axis to get from the minimum value to the maximum value.

The default setting of the total angle is 360 degrees.

Parameters:

angle total angle in degrees

See also:: totalAngle()

Definition at line 327 of file qwt_wheel.cpp.

References QwtWheel::PrivateData::totalAngle.

{
    if ( angle < 0.0 )
        angle = 0.0;

    d_data->totalAngle = angle;
    update();
}

void QwtWheel::setViewAngle ( double angle )

Specify the visible portion of the wheel.

You may use this function for fine-tuning the appearance of the wheel. The default value is 175 degrees. The value is limited from 10 to 175 degrees.

Parameters:

angle Visible angle in degrees

See also:: viewAngle(), setTotalAngle()

Definition at line 388 of file qwt_wheel.cpp.

References qwtLim(), and QwtWheel::PrivateData::viewAngle.

{
    d_data->viewAngle = qwtLim( angle, 10.0, 175.0 );
    update();
}

void QwtWheel::setWheelWidth ( int w )

Set the width of the wheel.

Corresponds to the wheel height for horizontal orientation, and the wheel width for vertical orientation.

Parameters:

w	the wheel's width

Definition at line 660 of file qwt_wheel.cpp.

References layoutWheel(), and QwtWheel::PrivateData::wheelWidth.

{
    d_data->wheelWidth = w;
    layoutWheel();
}

QSize QwtWheel::sizeHint ( ) const [virtual]

Returns:: a size hint

Definition at line 669 of file qwt_wheel.cpp.

References minimumSizeHint().

{
    return minimumSizeHint();
}

int QwtWheel::tickCnt ( ) const

double QwtWheel::totalAngle ( ) const

void QwtWheel::valueChange ( ) [protected, virtual]

Notify value change.

Reimplemented from QwtAbstractSlider.

Definition at line 618 of file qwt_wheel.cpp.

{
    QwtAbstractSlider::valueChange();
    update();
}

double QwtWheel::viewAngle ( ) const

Property Documentation

int QwtWheel::internalBorder [read, write]

Returns:: Internal border width of the wheel.

See also:: setInternalBorder()

Definition at line 31 of file qwt_wheel.h.

double QwtWheel::mass [read, write]

Returns:: mass

Reimplemented from QwtAbstractSlider.

Definition at line 32 of file qwt_wheel.h.

int QwtWheel::tickCnt [read, write]

Returns:: Number of grooves in the wheel's surface.

See also:: setTickCnt()

Definition at line 30 of file qwt_wheel.h.

double QwtWheel::totalAngle [read, write]

Returns:: Total angle which the wheel can be turned.

See also:: setTotalAngle()

Definition at line 28 of file qwt_wheel.h.

double QwtWheel::viewAngle [read, write]

Returns:: Visible portion of the wheel

See also:: setViewAngle(), totalAngle()

Definition at line 29 of file qwt_wheel.h.

The documentation for this class was generated from the following files:

QwtWheel Class Reference

Classes

Public Member Functions

Protected Member Functions

Properties

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Property Documentation
