QwtPlotRescaler takes care of fixed aspect ratios for plot scales. More...

#include <qwt_plot_rescaler.h>

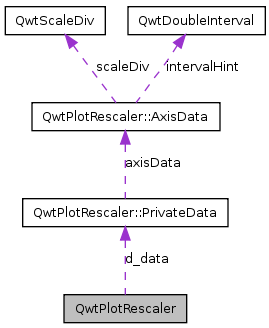

Collaboration diagram for QwtPlotRescaler:

Classes
class	AxisData
class	PrivateData
Public Types
enum	RescalePolicy { Fixed, Expanding, Fitting }
	Rescale Policy. More...
enum	ExpandingDirection { ExpandUp, ExpandDown, ExpandBoth }
Public Member Functions
	QwtPlotRescaler (QwtPlotCanvas *, int referenceAxis=QwtPlot::xBottom, RescalePolicy=Expanding)
virtual	~QwtPlotRescaler ()
	Destructor.
void	setEnabled (bool)
	En/disable the rescaler.
bool	isEnabled () const
void	setRescalePolicy (RescalePolicy)
RescalePolicy	rescalePolicy () const
void	setExpandingDirection (ExpandingDirection)
void	setExpandingDirection (int axis, ExpandingDirection)
ExpandingDirection	expandingDirection (int axis) const
void	setReferenceAxis (int axis)
int	referenceAxis () const
void	setAspectRatio (double ratio)
void	setAspectRatio (int axis, double ratio)
double	aspectRatio (int axis) const
void	setIntervalHint (int axis, const QwtDoubleInterval &)
QwtDoubleInterval	intervalHint (int axis) const
QwtPlotCanvas *	canvas ()
const QwtPlotCanvas *	canvas () const
QwtPlot *	plot ()
const QwtPlot *	plot () const
virtual bool	eventFilter (QObject , QEvent )
	Event filter for the plot canvas.
void	rescale () const
	Adjust the plot axes scales.
Protected Member Functions
virtual void	canvasResizeEvent (QResizeEvent *)
virtual void	rescale (const QSize &oldSize, const QSize &newSize) const
virtual QwtDoubleInterval	expandScale (int axis, const QSize &oldSize, const QSize &newSize) const
virtual QwtDoubleInterval	syncScale (int axis, const QwtDoubleInterval &reference, const QSize &size) const
virtual void	updateScales (QwtDoubleInterval intervals[QwtPlot::axisCnt]) const
Qt::Orientation	orientation (int axis) const
QwtDoubleInterval	interval (int axis) const
QwtDoubleInterval	expandInterval (const QwtDoubleInterval &, double width, ExpandingDirection) const

Detailed Description

QwtPlotRescaler takes care of fixed aspect ratios for plot scales.

QwtPlotRescaler autoadjusts the axes of a QwtPlot according to fixed aspect ratios.

Definition at line 29 of file qwt_plot_rescaler.h.

Member Enumeration Documentation

enum QwtPlotRescaler::ExpandingDirection

Enumerator:

ExpandUp
ExpandDown
ExpandBoth

Definition at line 65 of file qwt_plot_rescaler.h.

    {
        ExpandUp,
        ExpandDown,
        ExpandBoth
    };

enum QwtPlotRescaler::RescalePolicy

Rescale Policy.

The rescale policy defines how to rescale the reference axis and their depending axes.

Fixed

The interval of the reference axis remains unchanged, when the geometry of the canvas changes. All other axes will be adjusted according to their aspect ratio.

Expanding

The interval of the reference axis will be shrinked/expanded, when the geometry of the canvas changes. All other axes will be adjusted according to their aspect ratio.

The interval, that is represented by one pixel is fixed.

Fitting

The intervals of the axes are calculated, so that all axes include their minimal interval.

Enumerator:

Fixed
Expanding
Fitting

Definition at line 58 of file qwt_plot_rescaler.h.

    {
        Fixed,
        Expanding,
        Fitting
    };

Constructor & Destructor Documentation

QwtPlotRescaler::QwtPlotRescaler	(	QwtPlotCanvas *	canvas,
		int	referenceAxis = `QwtPlot::xBottom`,
		RescalePolicy	policy = `Expanding`
	)		`[explicit]`

Constructor

Parameters:

canvas	Canvas
referenceAxis	Reference axis, see RescalePolicy
policy	Rescale policy

See also:: setRescalePolicy(), setReferenceAxis()

Definition at line 62 of file qwt_plot_rescaler.cpp.

References referenceAxis(), QwtPlotRescaler::PrivateData::referenceAxis, QwtPlotRescaler::PrivateData::rescalePolicy, and setEnabled().

                                                :
    QObject(canvas)
{
    d_data = new PrivateData;
    d_data->referenceAxis = referenceAxis;
    d_data->rescalePolicy = policy;

    setEnabled(true);
}

QwtPlotRescaler::~QwtPlotRescaler ( ) [virtual]

Destructor.

Definition at line 74 of file qwt_plot_rescaler.cpp.

{
    delete d_data;
}

Member Function Documentation

double QwtPlotRescaler::aspectRatio ( int axis ) const

Return aspect ratio between an axis and the reference axis.

Parameters:

axis	Axis index ( see QwtPlot::AxisId )

See also:: setAspectRatio()

Definition at line 232 of file qwt_plot_rescaler.cpp.

References QwtPlotRescaler::AxisData::aspectRatio, QwtPlot::axisCnt, and QwtPlotRescaler::PrivateData::axisData.

Referenced by rescale(), syncScale(), and updateScales().

{
    if ( axis >= 0 && axis < QwtPlot::axisCnt )
        return d_data->axisData[axis].aspectRatio;

    return 0.0;
}

const QwtPlotCanvas * QwtPlotRescaler::canvas ( ) const

Returns:: plot canvas

Definition at line 266 of file qwt_plot_rescaler.cpp.

{
    return ((QwtPlotRescaler *)this)->canvas();
}

QwtPlotCanvas * QwtPlotRescaler::canvas ( )

Returns:: plot canvas

Definition at line 256 of file qwt_plot_rescaler.cpp.

Referenced by canvasResizeEvent(), eventFilter(), plot(), rescale(), and setEnabled().

{
    QObject *o = parent();
    if ( o && o->inherits("QwtPlotCanvas") )
        return (QwtPlotCanvas *)o;

    return NULL;
}

void QwtPlotRescaler::canvasResizeEvent ( QResizeEvent * e ) [protected, virtual]

Definition at line 313 of file qwt_plot_rescaler.cpp.

References canvas(), and rescale().

Referenced by eventFilter().

{
    const int fw = 2 * canvas()->frameWidth();
    const QSize newSize = e->size() - QSize(fw, fw);
    const QSize oldSize = e->oldSize() - QSize(fw, fw);

    rescale(oldSize, newSize);
}

bool QwtPlotRescaler::eventFilter	(	QObject *	o,
		QEvent *	e
	)		`[virtual]`

Event filter for the plot canvas.

Definition at line 292 of file qwt_plot_rescaler.cpp.

References canvas(), canvasResizeEvent(), and rescale().

{
    if ( o && o == canvas() )
    {
        switch(e->type())
        {
            case QEvent::Resize:
                canvasResizeEvent((QResizeEvent *)e);
                break;
#if QT_VERSION >= 0x040000
            case QEvent::PolishRequest:
                rescale();
                break;
#endif
            default:;
        }
    }

    return false;
}

QwtPlotRescaler::ExpandingDirection QwtPlotRescaler::expandingDirection ( int axis ) const

Return direction in which an axis should be expanded

Parameters:

axis	Axis index ( see QwtPlot::AxisId )

See also:: setExpandingDirection()

Definition at line 188 of file qwt_plot_rescaler.cpp.

References QwtPlot::axisCnt, QwtPlotRescaler::PrivateData::axisData, ExpandBoth, and QwtPlotRescaler::AxisData::expandingDirection.

Referenced by expandScale(), and syncScale().

{
    if ( axis >= 0 && axis < QwtPlot::axisCnt )
        return d_data->axisData[axis].expandingDirection;

    return ExpandBoth;
}

QwtDoubleInterval QwtPlotRescaler::expandInterval	(	const QwtDoubleInterval &	interval,
		double	width,
		ExpandingDirection	direction
	)		const `[protected]`

Expand the interval

Parameters:

interval	Interval to be expanded
width	Distance to be added to the interval
direction	Direction of the expand operation

Returns:: Expanded interval

Definition at line 510 of file qwt_plot_rescaler.cpp.

References ExpandBoth, ExpandDown, ExpandUp, interval(), QwtDoubleInterval::maxValue(), QwtDoubleInterval::minValue(), QwtDoubleInterval::setMaxValue(), QwtDoubleInterval::setMinValue(), and QwtDoubleInterval::width().

Referenced by expandScale(), and syncScale().

{
    QwtDoubleInterval expanded = interval;

    switch(direction)
    {
        case ExpandUp:
            expanded.setMinValue(interval.minValue());
            expanded.setMaxValue(interval.minValue() + width);
            break;
        case ExpandDown:
            expanded.setMaxValue(interval.maxValue());
            expanded.setMinValue(interval.maxValue() - width);
            break;
        case ExpandBoth:
        default:
            expanded.setMinValue(interval.minValue() +
                interval.width() / 2.0 - width / 2.0);
            expanded.setMaxValue(expanded.minValue() + width);
    }
    return expanded;
}

QwtDoubleInterval QwtPlotRescaler::expandScale	(	int	axis,
		const QSize &	oldSize,
		const QSize &	newSize
	)		const `[protected, virtual]`

Calculate the new scale interval of a plot axis

Parameters:

axis	Axis index ( see QwtPlot::AxisId )
oldSize	Previous size of the canvas
newSize	New size of the canvas

Returns:: Calculated new interval for the axis

Definition at line 384 of file qwt_plot_rescaler.cpp.

References QwtPlot::axisCnt, QuadProgPP::dist(), Expanding, expandingDirection(), expandInterval(), Fitting, Fixed, interval(), intervalHint(), orientation(), rescalePolicy(), and QwtDoubleInterval::width().

Referenced by rescale().

{
    const QwtDoubleInterval oldInterval = interval(axis);

    QwtDoubleInterval expanded = oldInterval;
    switch(rescalePolicy())
    {
        case Fixed:
        {
            break; // do nothing
        }
        case Expanding:
        {
            if ( !oldSize.isEmpty() )
            {
                double width = oldInterval.width();
                if ( orientation(axis) == Qt::Horizontal )
                    width *= double(newSize.width()) / oldSize.width();
                else
                    width *= double(newSize.height()) / oldSize.height();

                expanded = expandInterval(oldInterval,
                    width, expandingDirection(axis));
            }
            break;
        }
        case Fitting:
        {
            double dist = 0.0;
            for ( int ax = 0; ax < QwtPlot::axisCnt; ax++ )
            {
                const double d = pixelDist(ax, newSize);
                if ( d > dist )
                    dist = d;
            }
            if ( dist > 0.0 )
            {
                double width;
                if ( orientation(axis) == Qt::Horizontal )
                    width = newSize.width() * dist;
                else
                    width = newSize.height() * dist;

                expanded = expandInterval(intervalHint(axis),
                    width, expandingDirection(axis));
            }
            break;
        }
    }

    return expanded;
}

QwtDoubleInterval QwtPlotRescaler::interval ( int axis ) const [protected]

Return interval of an axis

Parameters:

axis	Axis index ( see QwtPlot::AxisId )

Definition at line 488 of file qwt_plot_rescaler.cpp.

References QwtPlot::axisCnt, QwtPlot::axisScaleDiv(), QwtScaleDiv::lowerBound(), QwtDoubleInterval::normalized(), plot(), and QwtScaleDiv::upperBound().

Referenced by expandInterval(), expandScale(), rescale(), setIntervalHint(), and syncScale().

{
    if ( axis < 0 || axis >= QwtPlot::axisCnt )
        return QwtDoubleInterval();

    const QwtPlot *plt = plot();

    const double v1 = plt->axisScaleDiv(axis)->lowerBound();
    const double v2 = plt->axisScaleDiv(axis)->upperBound();

    return QwtDoubleInterval(v1, v2).normalized();
}

QwtDoubleInterval QwtPlotRescaler::intervalHint ( int axis ) const

Definition at line 247 of file qwt_plot_rescaler.cpp.

References QwtPlot::axisCnt, QwtPlotRescaler::PrivateData::axisData, and QwtPlotRescaler::AxisData::intervalHint.

Referenced by expandScale(), rescale(), and syncScale().

{
    if ( axis >= 0 && axis < QwtPlot::axisCnt )
        return d_data->axisData[axis].intervalHint;

    return QwtDoubleInterval();
}

bool QwtPlotRescaler::isEnabled ( ) const

Returns:: true when enabled, false otherwise

See also:: setEnabled, eventFilter()

Definition at line 109 of file qwt_plot_rescaler.cpp.

References QwtPlotRescaler::PrivateData::isEnabled.

{
    return d_data->isEnabled;
}

Qt::Orientation QwtPlotRescaler::orientation ( int axis ) const [protected]

Return orientation of an axis

Parameters:

axis	Axis index ( see QwtPlot::AxisId )

Definition at line 476 of file qwt_plot_rescaler.cpp.

References QwtPlot::yLeft, and QwtPlot::yRight.

Referenced by expandScale(), and syncScale().

{
    if ( axis == QwtPlot::yLeft || axis == QwtPlot::yRight )
        return Qt::Vertical;

    return Qt::Horizontal;
}

QwtPlot * QwtPlotRescaler::plot ( )

Returns:: plot widget

Definition at line 272 of file qwt_plot_rescaler.cpp.

References canvas().

Referenced by interval(), rescale(), and updateScales().

{
    QObject *w = canvas();
    if ( w )
    {
        w = w->parent();
        if ( w && w->inherits("QwtPlot") )
            return (QwtPlot *)w;
    }

    return NULL;
}

const QwtPlot * QwtPlotRescaler::plot ( ) const

Returns:: plot widget

Definition at line 286 of file qwt_plot_rescaler.cpp.

{
    return ((QwtPlotRescaler *)this)->plot();
}

int QwtPlotRescaler::referenceAxis ( ) const

Returns:: Reference axis ( see RescalePolicy )

See also:: setReferenceAxis()

Definition at line 149 of file qwt_plot_rescaler.cpp.

References QwtPlotRescaler::PrivateData::referenceAxis.

Referenced by QwtPlotRescaler(), rescale(), syncScale(), and updateScales().

{
    return d_data->referenceAxis;
}

void QwtPlotRescaler::rescale ( ) const

Adjust the plot axes scales.

Definition at line 323 of file qwt_plot_rescaler.cpp.

References QwtPlot::autoReplot(), QwtPlot::axisCnt, canvas(), intervalHint(), QwtDoubleInterval::isNull(), QwtDoubleInterval::maxValue(), QwtDoubleInterval::minValue(), plot(), referenceAxis(), QwtPlot::setAutoReplot(), QwtPlot::setAxisScale(), and QwtPlot::updateAxes().

Referenced by canvasResizeEvent(), and eventFilter().

{
#if 0
    const int axis = referenceAxis();
    if ( axis < 0 || axis >= QwtPlot::axisCnt )
        return;

    const QwtDoubleInterval hint = intervalHint(axis);
    if ( !hint.isNull() )
    {
        QwtPlot *plt = (QwtPlot *)plot();

        const bool doReplot = plt->autoReplot();
        plt->setAutoReplot(false);
        plt->setAxisScale(axis, hint.minValue(), hint.maxValue());
        plt->setAutoReplot(doReplot);
        plt->updateAxes();
    }
#endif

    const QSize size = canvas()->contentsRect().size();
    rescale(size, size);
}

void QwtPlotRescaler::rescale	(	const QSize &	oldSize,
		const QSize &	newSize
	)		const `[protected, virtual]`

Adjust the plot axes scales

Parameters:

oldSize	Previous size of the canvas
newSize	New size of the canvas

Definition at line 353 of file qwt_plot_rescaler.cpp.

References aspectRatio(), QwtPlot::axisCnt, expandScale(), interval(), referenceAxis(), syncScale(), and updateScales().

{
    if ( newSize.isEmpty() )
        return;

    QwtDoubleInterval intervals[QwtPlot::axisCnt];
    for ( int axis = 0; axis < QwtPlot::axisCnt; axis++ )
        intervals[axis] = interval(axis);

    const int refAxis = referenceAxis();
    intervals[refAxis] = expandScale(refAxis, oldSize, newSize);

    for ( int axis = 0; axis < QwtPlot::axisCnt; axis++ )
    {
        if ( aspectRatio(axis) > 0.0 && axis != refAxis )
            intervals[axis] = syncScale(axis, intervals[refAxis], newSize);
    }

    updateScales(intervals);
}

QwtPlotRescaler::RescalePolicy QwtPlotRescaler::rescalePolicy ( ) const

Returns:: Rescale policy

See also:: setRescalePolicy()

Definition at line 129 of file qwt_plot_rescaler.cpp.

References QwtPlotRescaler::PrivateData::rescalePolicy.

Referenced by expandScale(), and syncScale().

{
    return d_data->rescalePolicy;
}

void QwtPlotRescaler::setAspectRatio	(	int	axis,
		double	ratio
	)

Set the aspect ratio between the scale of the reference axis and another scale. The default ratio is 1.0

Parameters:

axis	Axis index ( see QwtPlot::AxisId )
ratio	Aspect ratio

See also:: aspectRatio()

Definition at line 217 of file qwt_plot_rescaler.cpp.

References QwtPlotRescaler::AxisData::aspectRatio, QwtPlot::axisCnt, and QwtPlotRescaler::PrivateData::axisData.

{
    if ( ratio < 0.0 )
        ratio = 0.0;

    if ( axis >= 0 && axis < QwtPlot::axisCnt )
        d_data->axisData[axis].aspectRatio = ratio;
}

void QwtPlotRescaler::setAspectRatio ( double ratio )

Set the aspect ratio between the scale of the reference axis and the other scales. The default ratio is 1.0

Parameters:

ratio Aspect ratio

See also:: aspectRatio()

Definition at line 203 of file qwt_plot_rescaler.cpp.

References QwtPlot::axisCnt.

{
    for ( int axis = 0; axis < QwtPlot::axisCnt; axis++ )
        setAspectRatio(axis, ratio);
}

void QwtPlotRescaler::setEnabled ( bool on )

En/disable the rescaler.

When enabled is true an event filter is installed for the canvas, otherwise the event filter is removed.

Parameters:

on	true or false

See also:: isEnabled(), eventFilter()

Definition at line 88 of file qwt_plot_rescaler.cpp.

References canvas(), and QwtPlotRescaler::PrivateData::isEnabled.

Referenced by QwtPlotRescaler().

{
    if ( d_data->isEnabled != on )
    {
        d_data->isEnabled = on;

        QWidget *w = canvas();
        if ( w )
        {
            if ( d_data->isEnabled )
                w->installEventFilter(this);
            else
                w->removeEventFilter(this);
        }
    }
}

void QwtPlotRescaler::setExpandingDirection	(	int	axis,
		ExpandingDirection	direction
	)

Set the direction in which an axis should be expanded

Parameters:

axis	Axis index ( see QwtPlot::AxisId )
direction	Direction

See also:: expandingDirection()

Definition at line 174 of file qwt_plot_rescaler.cpp.

References QwtPlot::axisCnt, QwtPlotRescaler::PrivateData::axisData, and QwtPlotRescaler::AxisData::expandingDirection.

{
    if ( axis >= 0 && axis < QwtPlot::axisCnt )
        d_data->axisData[axis].expandingDirection = direction;
}

void QwtPlotRescaler::setExpandingDirection ( ExpandingDirection direction )

Set the direction in which all axis should be expanded

Parameters:

direction Direction

See also:: expandingDirection()

Definition at line 160 of file qwt_plot_rescaler.cpp.

References QwtPlot::axisCnt.

{
    for ( int axis = 0; axis < QwtPlot::axisCnt; axis++ )
        setExpandingDirection(axis, direction);
}

void QwtPlotRescaler::setIntervalHint	(	int	axis,
		const QwtDoubleInterval &	interval
	)

Definition at line 240 of file qwt_plot_rescaler.cpp.

References QwtPlot::axisCnt, QwtPlotRescaler::PrivateData::axisData, interval(), and QwtPlotRescaler::AxisData::intervalHint.

{
    if ( axis >= 0 && axis < QwtPlot::axisCnt )
        d_data->axisData[axis].intervalHint = interval;
}

void QwtPlotRescaler::setReferenceAxis ( int axis )

Set the reference axis ( see RescalePolicy )

Parameters:

axis	Axis index ( QwtPlot::Axis )

See also:: referenceAxis()

Definition at line 140 of file qwt_plot_rescaler.cpp.

References QwtPlotRescaler::PrivateData::referenceAxis.

{
    d_data->referenceAxis = axis;
}

void QwtPlotRescaler::setRescalePolicy ( RescalePolicy policy )

Change the rescale policy

Parameters:

policy Rescale policy

See also:: rescalePolicy()

Definition at line 120 of file qwt_plot_rescaler.cpp.

References QwtPlotRescaler::PrivateData::rescalePolicy.

{
    d_data->rescalePolicy = policy;
}

QwtDoubleInterval QwtPlotRescaler::syncScale	(	int	axis,
		const QwtDoubleInterval &	reference,
		const QSize &	size
	)		const `[protected, virtual]`

Synchronize an axis scale according to the scale of the reference axis

Parameters:

axis	Axis index ( see QwtPlot::AxisId )
reference	Interval of the reference axis
size	Size of the canvas

Definition at line 445 of file qwt_plot_rescaler.cpp.

References aspectRatio(), QuadProgPP::dist(), expandingDirection(), expandInterval(), Fitting, interval(), intervalHint(), orientation(), referenceAxis(), rescalePolicy(), and QwtDoubleInterval::width().

Referenced by rescale().

{
    double dist;
    if ( orientation(referenceAxis()) == Qt::Horizontal )
        dist = reference.width() / size.width();
    else
        dist = reference.width() / size.height();

    if ( orientation(axis) == Qt::Horizontal )
        dist *= size.width();
    else
        dist *= size.height();

    dist /= aspectRatio(axis);

    QwtDoubleInterval intv;
    if ( rescalePolicy() == Fitting )
        intv = intervalHint(axis);
    else
        intv = interval(axis);

    intv = expandInterval(intv, dist, expandingDirection(axis));

    return intv;
}

void QwtPlotRescaler::updateScales ( QwtDoubleInterval intervals[QwtPlot::axisCnt] ) const [protected, virtual]

Update the axes scales

Parameters:

intervals Scale intervals

Definition at line 568 of file qwt_plot_rescaler.cpp.

References aspectRatio(), QwtPlot::autoReplot(), QwtPlotRescaler::PrivateData::axisData, QwtPlot::axisScaleDiv(), QwtPlotRescaler::PrivateData::inReplot, QwtScaleDiv::lowerBound(), QwtScaleDiv::NTickTypes, plot(), referenceAxis(), QwtPlot::replot(), QwtPlotRescaler::AxisData::scaleDiv, QwtPlot::setAutoReplot(), QwtPlot::setAxisScale(), QwtPlot::setAxisScaleDiv(), QwtScaleDiv::ticks(), and QwtScaleDiv::upperBound().

Referenced by rescale().

{
    if ( d_data->inReplot >= 5 )
    {
        return;
    }

    QwtPlot *plt = (QwtPlot *)plot();

    const bool doReplot = plt->autoReplot();
    plt->setAutoReplot(false);

    for ( int axis = 0; axis < QwtPlot::axisCnt; axis++ )
    {
        if ( axis == referenceAxis() || aspectRatio(axis) > 0.0 )
        {
            double v1 = intervals[axis].minValue();
            double v2 = intervals[axis].maxValue();

            if ( plt->axisScaleDiv(axis)->lowerBound() >
                plt->axisScaleDiv(axis)->upperBound() )
            {
                qSwap(v1, v2);
            }

            if ( d_data->inReplot >= 1 )
            {
                d_data->axisData[axis].scaleDiv = *plt->axisScaleDiv(axis);
            }

            if ( d_data->inReplot >= 2 )
            {
                QwtValueList ticks[QwtScaleDiv::NTickTypes];
                for ( int i = 0; i < QwtScaleDiv::NTickTypes; i++ )
                    ticks[i] = d_data->axisData[axis].scaleDiv.ticks(i);

                plt->setAxisScaleDiv(axis, QwtScaleDiv(v1, v2, ticks));
            }
            else
            {
                plt->setAxisScale(axis, v1, v2);
            }
        }
    }

    plt->setAutoReplot(doReplot);

    d_data->inReplot++;
    plt->replot();
    d_data->inReplot--;
}

The documentation for this class was generated from the following files:

QwtPlotRescaler Class Reference

Classes

Public Types

Public Member Functions

Protected Member Functions

Detailed Description

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation
