The Counter Widget. More...

#include <qwt_counter.h>

Inheritance diagram for QwtCounter:

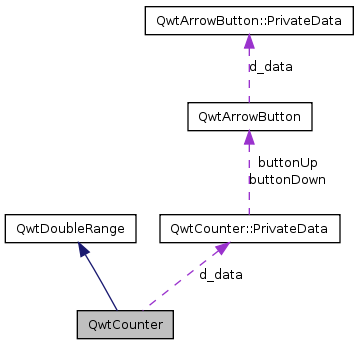

Collaboration diagram for QwtCounter:

Classes
class	PrivateData
Public Types
enum	Button { Button1, Button2, Button3, ButtonCnt }
Signals
void	buttonReleased (double value)
void	valueChanged (double value)
Public Member Functions
	QwtCounter (QWidget *parent=NULL)
	QwtCounter (QWidget parent, const char name)
virtual	~QwtCounter ()
	Destructor.
bool	editable () const
void	setEditable (bool)
	Allow/disallow the user to manually edit the value.
void	setNumButtons (int n)
	Specify the number of buttons on each side of the label.
int	numButtons () const
void	setIncSteps (QwtCounter::Button btn, int nSteps)
int	incSteps (QwtCounter::Button btn) const
virtual void	setValue (double)
	Set a new value.
virtual QSize	sizeHint () const
	A size hint.
virtual void	polish ()
double	step () const
	returns the step size
void	setStep (double s)
double	minVal () const
	returns the minimum value of the range
void	setMinValue (double m)
double	maxVal () const
	returns the maximum value of the range
void	setMaxValue (double m)
void	setStepButton1 (int nSteps)
int	stepButton1 () const
void	setStepButton2 (int nSteps)
int	stepButton2 () const
void	setStepButton3 (int nSteps)
int	stepButton3 () const
virtual double	value () const
	Returns the current value.
Protected Member Functions
virtual bool	event (QEvent *)
virtual void	wheelEvent (QWheelEvent *)
virtual void	keyPressEvent (QKeyEvent *)
virtual void	rangeChange ()
	Notify change of range.
Properties
int	numButtons
double	basicstep
double	minValue
double	maxValue
int	stepButton1
	returns the number of increment steps for button 1
int	stepButton2
	returns the number of increment steps for button 2
int	stepButton3
	returns the number of increment steps for button 3
double	value
bool	editable
	returns whether the line edit is edatble. (default is yes)

Detailed Description

The Counter Widget.

A Counter consists of a label displaying a number and one ore more (up to three) push buttons on each side of the label which can be used to increment or decrement the counter's value.

A Counter has a range from a minimum value to a maximum value and a step size. The range can be specified using QwtDblRange::setRange(). The counter's value is an integer multiple of the step size. The number of steps by which a button increments or decrements the value can be specified using QwtCounter::setIncSteps(). The number of buttons can be changed with QwtCounter::setNumButtons().

Holding the space bar down with focus on a button is the fastest method to step through the counter values. When the counter underflows/overflows, the focus is set to the smallest up/down button and counting is disabled. Counting is re-enabled on a button release event (mouse or space bar).

Example:

#include "../include/qwt_counter.h>

QwtCounter *cnt;

cnt = new QwtCounter(parent, name);

cnt->setRange(0.0, 100.0, 1.0);             // From 0.0 to 100, step 1.0
cnt->setNumButtons(2);                      // Two buttons each side
cnt->setIncSteps(QwtCounter::Button1, 1);   // Button 1 increments 1 step
cnt->setIncSteps(QwtCounter::Button2, 20);  // Button 2 increments 20 steps

connect(cnt, SIGNAL(valueChanged(double)), my_class, SLOT(newValue(double)));

Definition at line 60 of file qwt_counter.h.

Member Enumeration Documentation

enum QwtCounter::Button

Button index

Enumerator:

Button1
Button2
Button3
ButtonCnt

Definition at line 79 of file qwt_counter.h.

    {
        Button1,
        Button2,
        Button3,
        ButtonCnt
    };

Constructor & Destructor Documentation

QwtCounter::QwtCounter ( QWidget * parent = NULL ) [explicit]

The default number of buttons is set to 2. The default increments are:

Button 1: 1 step
Button 2: 10 steps
Button 3: 100 steps

Parameters:

parent

Definition at line 50 of file qwt_counter.cpp.

                                     :
    QWidget(parent)
{
    initCounter();
}

QwtCounter::QwtCounter	(	QWidget *	parent,
		const char *	name
	)		`[explicit]`

The default number of buttons is set to 2. The default increments are:

Button 1: 1 step
Button 2: 10 steps
Button 3: 100 steps

Parameters:

parent

Definition at line 65 of file qwt_counter.cpp.

                                                       :
    QWidget(parent, name)
{
    initCounter();
}

QwtCounter::~QwtCounter ( ) [virtual]

Destructor.

Definition at line 143 of file qwt_counter.cpp.

{
    delete d_data;
}

Member Function Documentation

void QwtCounter::buttonReleased ( double value ) [signal]

This signal is emitted when a button has been released

Parameters:

value The new value

bool QwtCounter::editable ( ) const

Referenced by setEditable().

bool QwtCounter::event ( QEvent * e ) [protected, virtual]

Handle PolishRequest events

Definition at line 206 of file qwt_counter.cpp.

References polish().

{
#if QT_VERSION >= 0x040000
    if ( e->type() == QEvent::PolishRequest )
        polish();
#endif
    return QWidget::event(e);
}

int QwtCounter::incSteps ( QwtCounter::Button btn ) const

Returns:: the number of steps by which a specified button increments the value or 0 if the button is invalid.

Parameters:

btn	One of `QwtCounter::Button1`, `QwtCounter::Button2`, `QwtCounter::Button3`

Definition at line 370 of file qwt_counter.cpp.

References ButtonCnt.

{
    if (( btn >= 0) && (btn < ButtonCnt))
       return d_data->increment[btn];

    return 0;
}

void QwtCounter::keyPressEvent ( QKeyEvent * e ) [protected, virtual]

Handle key events

Ctrl + Qt::Key_Home Step to minValue()
Ctrl + Qt::Key_End Step to maxValue()
Qt::Key_Up Increment by incSteps(QwtCounter::Button1)
Qt::Key_Down Decrement by incSteps(QwtCounter::Button1)
Qt::Key_PageUp Increment by incSteps(QwtCounter::Button2)
Qt::Key_PageDown Decrement by incSteps(QwtCounter::Button2)
Shift + Qt::Key_PageUp Increment by incSteps(QwtCounter::Button3)
Shift + Qt::Key_PageDown Decrement by incSteps(QwtCounter::Button3)

Definition at line 235 of file qwt_counter.cpp.

References QwtDoubleRange::incValue(), mitk::Key_Down, mitk::Key_End, mitk::Key_Home, mitk::Key_PageDown, mitk::Key_PageUp, mitk::Key_Up, QwtDoubleRange::maxValue(), QwtDoubleRange::minValue(), and setValue().

{
    bool accepted = true;

    switch ( e->key() )
    {
        case Qt::Key_Home:
#if QT_VERSION >= 0x040000
            if ( e->modifiers() & Qt::ControlModifier )
#else
            if ( e->state() & Qt::ControlButton )
#endif
                setValue(minValue());
            else
                accepted = false;
            break;
        case Qt::Key_End:
#if QT_VERSION >= 0x040000
            if ( e->modifiers() & Qt::ControlModifier )
#else
            if ( e->state() & Qt::ControlButton )
#endif
                setValue(maxValue());
            else
                accepted = false;
            break;
        case Qt::Key_Up:
            incValue(d_data->increment[0]);
            break;
        case Qt::Key_Down:
            incValue(-d_data->increment[0]);
            break;
        case Qt::Key_PageUp:
        case Qt::Key_PageDown:
        {
            int increment = d_data->increment[0];
            if ( d_data->nButtons >= 2 )
                increment = d_data->increment[1];
            if ( d_data->nButtons >= 3 )
            {
#if QT_VERSION >= 0x040000
                if ( e->modifiers() & Qt::ShiftModifier )
#else
                if ( e->state() & Qt::ShiftButton )
#endif
                    increment = d_data->increment[2];
            }
            if ( e->key() == Qt::Key_PageDown )
                increment = -increment;
            incValue(increment);
            break;
        }
        default:
            accepted = false;
    }

    if ( accepted )
    {
        e->accept();
        return;
    }

    QWidget::keyPressEvent (e);
}

double QwtCounter::maxVal ( ) const

returns the maximum value of the range

Definition at line 590 of file qwt_counter.cpp.

References QwtDoubleRange::maxValue().

{
    return QwtDoubleRange::maxValue();
}

double QwtCounter::minVal ( ) const

returns the minimum value of the range

Definition at line 573 of file qwt_counter.cpp.

References QwtDoubleRange::minValue().

{
    return minValue();
}

int QwtCounter::numButtons ( ) const

void QwtCounter::polish ( ) [virtual]

Sets the minimum width for the buttons

Definition at line 151 of file qwt_counter.cpp.

References ButtonCnt.

Referenced by event().

{
    const int w = d_data->valueEdit->fontMetrics().width("W") + 8;

    for ( int i = 0; i < ButtonCnt; i++ )
    {
        d_data->buttonDown[i]->setMinimumWidth(w);
        d_data->buttonUp[i]->setMinimumWidth(w);
    }

#if QT_VERSION < 0x040000
    QWidget::polish();
#endif
}

void QwtCounter::rangeChange ( ) [protected, virtual]

Notify change of range.

This function updates the enabled property of all buttons contained in QwtCounter.

Reimplemented from QwtDoubleRange.

Definition at line 514 of file qwt_counter.cpp.

{
    updateButtons();
}

void QwtCounter::setEditable ( bool editable )

Allow/disallow the user to manually edit the value.

Parameters:

editable true enables editing

See also:: editable()

Definition at line 185 of file qwt_counter.cpp.

References editable().

{
#if QT_VERSION >= 0x040000
    using namespace Qt;
#endif
    if ( editable == d_data->editable )
        return;

    d_data->editable = editable;
    d_data->valueEdit->setReadOnly(!editable);
}

void QwtCounter::setIncSteps	(	QwtCounter::Button	btn,
		int	nSteps
	)

Specify the number of steps by which the value is incremented or decremented when a specified button is pushed.

Parameters:

btn	One of `QwtCounter::Button1`, `QwtCounter::Button2`, `QwtCounter::Button3`
nSteps	Number of steps

Definition at line 358 of file qwt_counter.cpp.

References ButtonCnt.

Referenced by setStepButton1(), setStepButton2(), and setStepButton3().

{
    if (( btn >= 0) && (btn < ButtonCnt))
       d_data->increment[btn] = nSteps;
}

void QwtCounter::setMaxValue ( double value )

Set the maximum value of the range

Parameters:

value Maximum value

See also:: setMinValue(), maxVal()

Definition at line 601 of file qwt_counter.cpp.

References QwtDoubleRange::minValue(), QwtDoubleRange::setRange(), and step().

{
    setRange(minValue(), value, step());
}

void QwtCounter::setMinValue ( double value )

Set the minimum value of the range

Parameters:

value Minimum value

See also:: setMaxValue(), minVal()

Definition at line 584 of file qwt_counter.cpp.

References QwtDoubleRange::maxValue(), QwtDoubleRange::setRange(), and step().

{
    setRange(value, maxValue(), step());
}

void QwtCounter::setNumButtons ( int n )

Specify the number of buttons on each side of the label.

Parameters:

n	Number of buttons

Definition at line 444 of file qwt_counter.cpp.

References ButtonCnt.

{
    if ( n<0 || n>ButtonCnt )
        return;

    for ( int i = 0; i < ButtonCnt; i++ )
    {
        if ( i < n )
        {
            d_data->buttonDown[i]->show();
            d_data->buttonUp[i]->show();
        }
        else
        {
            d_data->buttonDown[i]->hide();
            d_data->buttonUp[i]->hide();
        }
    }

    d_data->nButtons = n;
}

void QwtCounter::setStep ( double stepSize )

Set the step size

Parameters:

stepSize Step size

See also:: QwtDoubleRange::setStep()

Reimplemented from QwtDoubleRange.

Definition at line 567 of file qwt_counter.cpp.

{
    QwtDoubleRange::setStep(stepSize);
}

void QwtCounter::setStepButton1 ( int nSteps )

Set the number of increment steps for button 1

Parameters:

nSteps Number of steps

Definition at line 610 of file qwt_counter.cpp.

References Button1, and setIncSteps().

{
    setIncSteps(Button1, nSteps);
}

void QwtCounter::setStepButton2 ( int nSteps )

Set the number of increment steps for button 2

Parameters:

nSteps Number of steps

Definition at line 625 of file qwt_counter.cpp.

References Button2, and setIncSteps().

{
    setIncSteps(Button2, nSteps);
}

void QwtCounter::setStepButton3 ( int nSteps )

Set the number of increment steps for button 3

Parameters:

nSteps Number of steps

Definition at line 640 of file qwt_counter.cpp.

References Button3, and setIncSteps().

{
    setIncSteps(Button3, nSteps);
}

void QwtCounter::setValue ( double v ) [virtual]

Set a new value.

Parameters:

v	new value Calls QwtDoubleRange::setValue and does all visual updates.

See also:: QwtDoubleRange::setValue()

Reimplemented from QwtDoubleRange.

Definition at line 385 of file qwt_counter.cpp.

References value().

Referenced by keyPressEvent().

{
    QwtDoubleRange::setValue(v);

    showNum(value());
    updateButtons();
}

QSize QwtCounter::sizeHint ( ) const [virtual]

A size hint.

Definition at line 520 of file qwt_counter.cpp.

References QwtDoubleRange::maxValue(), QwtDoubleRange::minValue(), qwtMin, and step().

{
    QString tmp;

    int w = tmp.setNum(minValue()).length();
    int w1 = tmp.setNum(maxValue()).length();
    if ( w1 > w )
        w = w1;
    w1 = tmp.setNum(minValue() + step()).length();
    if ( w1 > w )
        w = w1;
    w1 = tmp.setNum(maxValue() - step()).length();
    if ( w1 > w )
        w = w1;

    tmp.fill('9', w);

    QFontMetrics fm(d_data->valueEdit->font());
    w = fm.width(tmp) + 2;
#if QT_VERSION >= 0x040000
    if ( d_data->valueEdit->hasFrame() )
        w += 2 * style()->pixelMetric(QStyle::PM_DefaultFrameWidth);
#else
    w += 2 * d_data->valueEdit->frameWidth();
#endif

    // Now we replace default sizeHint contribution of d_data->valueEdit by
    // what we really need.

    w += QWidget::sizeHint().width() - d_data->valueEdit->sizeHint().width();

    const int h = qwtMin(QWidget::sizeHint().height(),
        d_data->valueEdit->minimumSizeHint().height());
    return QSize(w, h);
}

double QwtCounter::step ( ) const

returns the step size

Reimplemented from QwtDoubleRange.

Definition at line 557 of file qwt_counter.cpp.

Referenced by setMaxValue(), setMinValue(), and sizeHint().

{
    return QwtDoubleRange::step();
}

int QwtCounter::stepButton1 ( ) const

int QwtCounter::stepButton2 ( ) const

int QwtCounter::stepButton3 ( ) const

virtual double QwtCounter::value ( ) const [virtual]

Returns the current value.

Reimplemented from QwtDoubleRange.

Referenced by setValue().

void QwtCounter::valueChanged ( double value ) [signal]

This signal is emitted when the counter's value has changed

Parameters:

value The new value

void QwtCounter::wheelEvent ( QWheelEvent * e ) [protected, virtual]

Handle wheel events

Parameters:

e	Wheel event

Definition at line 304 of file qwt_counter.cpp.

References QwtDoubleRange::incValue().

{
    e->accept();

    if ( d_data->nButtons <= 0 )
        return;

    int increment = d_data->increment[0];
    if ( d_data->nButtons >= 2 )
    {
#if QT_VERSION >= 0x040000
        if ( e->modifiers() & Qt::ControlModifier )
#else
        if ( e->state() & Qt::ControlButton )
#endif
            increment = d_data->increment[1];
    }
    if ( d_data->nButtons >= 3 )
    {
#if QT_VERSION >= 0x040000
        if ( e->modifiers() & Qt::ShiftModifier )
#else
        if ( e->state() & Qt::ShiftButton )
#endif
            increment = d_data->increment[2];
    }

    for ( int i = 0; i < d_data->nButtons; i++ )
    {
        if ( d_data->buttonDown[i]->geometry().contains(e->pos()) ||
            d_data->buttonUp[i]->geometry().contains(e->pos()) )
        {
            increment = d_data->increment[i];
        }
    }

    const int wheel_delta = 120;

    int delta = e->delta();
    if ( delta >= 2 * wheel_delta )
        delta /= 2; // Never saw an abs(delta) < 240

    incValue(delta / wheel_delta * increment);
}

Property Documentation

double QwtCounter::basicstep [read, write]

Definition at line 65 of file qwt_counter.h.

bool QwtCounter::editable [read, write]

returns whether the line edit is edatble. (default is yes)

Definition at line 72 of file qwt_counter.h.

double QwtCounter::maxValue [read, write]

Definition at line 67 of file qwt_counter.h.

double QwtCounter::minValue [read, write]

Definition at line 66 of file qwt_counter.h.

int QwtCounter::numButtons [read, write]

Returns:: The number of buttons on each side of the widget.

Definition at line 64 of file qwt_counter.h.

int QwtCounter::stepButton1 [read, write]

returns the number of increment steps for button 1

Definition at line 68 of file qwt_counter.h.

int QwtCounter::stepButton2 [read, write]

returns the number of increment steps for button 2

Definition at line 69 of file qwt_counter.h.

int QwtCounter::stepButton3 [read, write]

returns the number of increment steps for button 3

Definition at line 70 of file qwt_counter.h.

double QwtCounter::value [read, write]

Returns:: Current value

Definition at line 71 of file qwt_counter.h.

The documentation for this class was generated from the following files:

QwtCounter Class Reference

Classes

Public Types

Signals

Public Member Functions

Protected Member Functions

Properties

Detailed Description

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Property Documentation
