QmitkVersorTransformOptimizerView Class Reference

Widget for rigid registration. More...

#include <QmitkVersorTransformOptimizerView.h>

Inheritance diagram for QmitkVersorTransformOptimizerView:

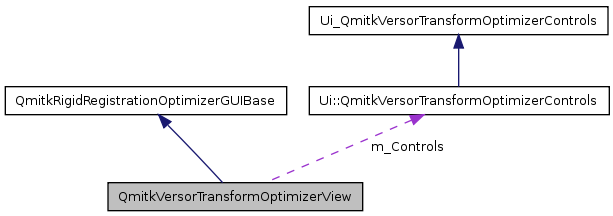

Collaboration diagram for QmitkVersorTransformOptimizerView:

List of all members.

Public Member Functions
	QmitkVersorTransformOptimizerView (QWidget *parent=0, Qt::WindowFlags f=0)
	~QmitkVersorTransformOptimizerView ()
virtual itk::Object::Pointer	GetOptimizer ()
virtual itk::Array< double >	GetOptimizerParameters ()
virtual void	SetOptimizerParameters (itk::Array< double > metricValues)
virtual void	SetNumberOfTransformParameters (int transformParameters)
virtual QString	GetName ()
virtual void	SetupUI (QWidget *parent)
Protected Attributes
Ui::QmitkVersorTransformOptimizerControls	m_Controls
int	m_NumberTransformParameters

---

Detailed Description

Widget for rigid registration.

Displays options for rigid registration.

Definition at line 33 of file QmitkVersorTransformOptimizerView.h.

---

Constructor & Destructor Documentation

QmitkVersorTransformOptimizerView::QmitkVersorTransformOptimizerView	(	QWidget *	parent = 0,
		Qt::WindowFlags	f = 0
	)

Definition at line 22 of file QmitkVersorTransformOptimizerView.cpp.

                                                                                                      : QmitkRigidRegistrationOptimizerGUIBase (parent, f),
m_NumberTransformParameters(16)
{

}

QmitkVersorTransformOptimizerView::~QmitkVersorTransformOptimizerView

(

)

Definition at line 28 of file QmitkVersorTransformOptimizerView.cpp.

{
}

---

Member Function Documentation

QString QmitkVersorTransformOptimizerView::GetName

(

)

[virtual]

Implements QmitkRigidRegistrationOptimizerGUIBase.

Definition at line 70 of file QmitkVersorTransformOptimizerView.cpp.

{
  return "VersorTransform";
}

itk::Object::Pointer QmitkVersorTransformOptimizerView::GetOptimizer

(

)

[virtual]

Implements QmitkRigidRegistrationOptimizerGUIBase.

Definition at line 32 of file QmitkVersorTransformOptimizerView.cpp.

References m_Controls, Ui_QmitkVersorTransformOptimizerControls::m_GradientMagnitudeToleranceVersorTransform, Ui_QmitkVersorTransformOptimizerControls::m_IterationsVersorTransform, Ui_QmitkVersorTransformOptimizerControls::m_Maximize, Ui_QmitkVersorTransformOptimizerControls::m_MaximumStepLengthVersorTransform, and Ui_QmitkVersorTransformOptimizerControls::m_MinimumStepLengthVersorTransform.

{
  itk::VersorTransformOptimizer::Pointer OptimizerPointer = itk::VersorTransformOptimizer::New();
  OptimizerPointer->SetMaximize( m_Controls.m_Maximize->isChecked() );
  OptimizerPointer->SetGradientMagnitudeTolerance( m_Controls.m_GradientMagnitudeToleranceVersorTransform->text().toFloat() );
  OptimizerPointer->SetMinimumStepLength( m_Controls.m_MinimumStepLengthVersorTransform->text().toFloat() );
  OptimizerPointer->SetMaximumStepLength( m_Controls.m_MaximumStepLengthVersorTransform->text().toFloat() );
  OptimizerPointer->SetNumberOfIterations( m_Controls.m_IterationsVersorTransform->text().toInt() );
  return OptimizerPointer.GetPointer();
}

itk::Array< double > QmitkVersorTransformOptimizerView::GetOptimizerParameters

(

)

[virtual]

Implements QmitkRigidRegistrationOptimizerGUIBase.

Definition at line 43 of file QmitkVersorTransformOptimizerView.cpp.

References m_Controls, Ui_QmitkVersorTransformOptimizerControls::m_GradientMagnitudeToleranceVersorTransform, Ui_QmitkVersorTransformOptimizerControls::m_IterationsVersorTransform, Ui_QmitkVersorTransformOptimizerControls::m_Maximize, Ui_QmitkVersorTransformOptimizerControls::m_MaximumStepLengthVersorTransform, and Ui_QmitkVersorTransformOptimizerControls::m_MinimumStepLengthVersorTransform.

{
  itk::Array<double> optimizerValues;
  optimizerValues.SetSize(5);
  optimizerValues.fill(0);
  optimizerValues[0] = m_Controls.m_Maximize->isChecked();
  optimizerValues[1] = m_Controls.m_GradientMagnitudeToleranceVersorTransform->text().toFloat();
  optimizerValues[2] = m_Controls.m_MinimumStepLengthVersorTransform->text().toFloat();
  optimizerValues[3] = m_Controls.m_MaximumStepLengthVersorTransform->text().toFloat();
  optimizerValues[4] = m_Controls.m_IterationsVersorTransform->text().toInt();
  return optimizerValues;
}

void QmitkVersorTransformOptimizerView::SetNumberOfTransformParameters

(

int

transformParameters )

[virtual]

Implements QmitkRigidRegistrationOptimizerGUIBase.

Definition at line 65 of file QmitkVersorTransformOptimizerView.cpp.

References m_NumberTransformParameters.

{
  m_NumberTransformParameters = transformParameters;
}

void QmitkVersorTransformOptimizerView::SetOptimizerParameters

(

itk::Array< double >

metricValues )

[virtual]

Implements QmitkRigidRegistrationOptimizerGUIBase.

Definition at line 56 of file QmitkVersorTransformOptimizerView.cpp.

References m_Controls, Ui_QmitkVersorTransformOptimizerControls::m_GradientMagnitudeToleranceVersorTransform, Ui_QmitkVersorTransformOptimizerControls::m_IterationsVersorTransform, Ui_QmitkVersorTransformOptimizerControls::m_Maximize, Ui_QmitkVersorTransformOptimizerControls::m_MaximumStepLengthVersorTransform, and Ui_QmitkVersorTransformOptimizerControls::m_MinimumStepLengthVersorTransform.

{
  m_Controls.m_Maximize->setChecked(optimizerValues[0]);
  m_Controls.m_GradientMagnitudeToleranceVersorTransform->setText(QString::number(optimizerValues[1]));
  m_Controls.m_MinimumStepLengthVersorTransform->setText(QString::number(optimizerValues[2]));
  m_Controls.m_MaximumStepLengthVersorTransform->setText(QString::number(optimizerValues[3]));
  m_Controls.m_IterationsVersorTransform->setText(QString::number(optimizerValues[4]));
}

void QmitkVersorTransformOptimizerView::SetupUI

(

QWidget *

parent )

[virtual]

Implements QmitkRigidRegistrationOptimizerGUIBase.

Definition at line 75 of file QmitkVersorTransformOptimizerView.cpp.

References m_Controls, Ui_QmitkVersorTransformOptimizerControls::m_GradientMagnitudeToleranceVersorTransform, Ui_QmitkVersorTransformOptimizerControls::m_IterationsVersorTransform, Ui_QmitkVersorTransformOptimizerControls::m_MaximumStepLengthVersorTransform, Ui_QmitkVersorTransformOptimizerControls::m_MinimumStepLengthVersorTransform, and Ui_QmitkVersorTransformOptimizerControls::setupUi().

{
  m_Controls.setupUi(parent);
  QValidator* validatorLineEditInput = new QIntValidator(0, 20000000, this);
  m_Controls.m_IterationsVersorTransform->setValidator(validatorLineEditInput);
  QValidator* validatorLineEditInputFloat = new QDoubleValidator(0, 20000000, 8, this);
  m_Controls.m_GradientMagnitudeToleranceVersorTransform->setValidator(validatorLineEditInputFloat);
  m_Controls.m_MinimumStepLengthVersorTransform->setValidator(validatorLineEditInputFloat);
  m_Controls.m_MaximumStepLengthVersorTransform->setValidator(validatorLineEditInputFloat);
}

---

Member Data Documentation

Ui::QmitkVersorTransformOptimizerControls QmitkVersorTransformOptimizerView::m_Controls [protected]

Definition at line 56 of file QmitkVersorTransformOptimizerView.h.

Referenced by GetOptimizer(), GetOptimizerParameters(), SetOptimizerParameters(), and SetupUI().

int QmitkVersorTransformOptimizerView::m_NumberTransformParameters [protected]

Definition at line 58 of file QmitkVersorTransformOptimizerView.h.

Referenced by SetNumberOfTransformParameters().

---

The documentation for this class was generated from the following files:

• QmitkVersorTransformOptimizerView.h
• QmitkVersorTransformOptimizerView.cpp
