Widget for rigid registration. More...

#include <QmitkTranslationTransformView.h>

Inheritance diagram for QmitkTranslationTransformView:

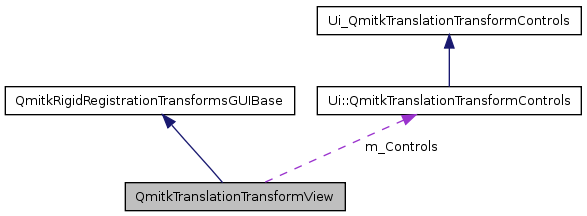

Collaboration diagram for QmitkTranslationTransformView:

Public Member Functions
	QmitkTranslationTransformView (QWidget *parent=0, Qt::WindowFlags f=0)
	~QmitkTranslationTransformView ()
virtual itk::Object::Pointer	GetTransform ()
virtual itk::Array< double >	GetTransformParameters ()
virtual void	SetTransformParameters (itk::Array< double > transformValues)
virtual QString	GetName ()
virtual void	SetupUI (QWidget *parent)
virtual itk::Array< double >	GetScales ()
virtual vtkTransform *	Transform (vtkMatrix4x4 vtkmatrix, vtkTransform vtktransform, itk::Array< double > transformParams)
virtual int	GetNumberOfTransformParameters ()
Protected Attributes
Ui::QmitkTranslationTransformControls	m_Controls
itk::Object::Pointer	m_TransformObject

Detailed Description

Widget for rigid registration.

Displays options for rigid registration.

Definition at line 31 of file QmitkTranslationTransformView.h.

Constructor & Destructor Documentation

QmitkTranslationTransformView::QmitkTranslationTransformView	(	QWidget *	parent = `0`,
		Qt::WindowFlags	f = `0`
	)

Definition at line 23 of file QmitkTranslationTransformView.cpp.

                                                                                              : QmitkRigidRegistrationTransformsGUIBase(parent, f)
{
}

QmitkTranslationTransformView::~QmitkTranslationTransformView ( )

Definition at line 27 of file QmitkTranslationTransformView.cpp.

{
}

Member Function Documentation

QString QmitkTranslationTransformView::GetName ( ) [virtual]

Implements QmitkRigidRegistrationTransformsGUIBase.

Definition at line 72 of file QmitkTranslationTransformView.cpp.

{
  return "Translation";
}

int QmitkTranslationTransformView::GetNumberOfTransformParameters ( ) [virtual]

Implements QmitkRigidRegistrationTransformsGUIBase.

Definition at line 117 of file QmitkTranslationTransformView.cpp.

References m_Controls, QmitkRigidRegistrationTransformsGUIBase::m_FixedImage, Ui_QmitkTranslationTransformControls::m_ScalesTranslationTransformTranslationZ, and Ui_QmitkTranslationTransformControls::textLabel4_4_2.

{
  if (m_FixedImage.IsNotNull())
  {
    if (m_FixedImage->GetDimension() == 2)
    {
      m_Controls.m_ScalesTranslationTransformTranslationZ->hide();
      m_Controls.textLabel4_4_2->hide();

      return 2;
    }
    else
    {
      m_Controls.m_ScalesTranslationTransformTranslationZ->show();
      m_Controls.textLabel4_4_2->show();

      return 3;
    }
  }
  else
    return 0;
}

itk::Array< double > QmitkTranslationTransformView::GetScales ( ) [virtual]

Implements QmitkRigidRegistrationTransformsGUIBase.

Definition at line 86 of file QmitkTranslationTransformView.cpp.

References m_Controls, Ui_QmitkTranslationTransformControls::m_ScalesTranslationTransformTranslationX, Ui_QmitkTranslationTransformControls::m_ScalesTranslationTransformTranslationY, Ui_QmitkTranslationTransformControls::m_ScalesTranslationTransformTranslationZ, and Ui_QmitkTranslationTransformControls::m_UseOptimizerScalesTranslation.

{
  itk::Array<double> scales;
  scales.SetSize(3);
  scales.Fill(1.0);
  if (m_Controls.m_UseOptimizerScalesTranslation->isChecked())
  {
    scales[0] = m_Controls.m_ScalesTranslationTransformTranslationX->text().toDouble();
    scales[1] = m_Controls.m_ScalesTranslationTransformTranslationY->text().toDouble();
    scales[2] = m_Controls.m_ScalesTranslationTransformTranslationZ->text().toDouble();
  }
  return scales;
}

itk::Object::Pointer QmitkTranslationTransformView::GetTransform ( ) [virtual]

Implements QmitkRigidRegistrationTransformsGUIBase.

Definition at line 31 of file QmitkTranslationTransformView.cpp.

References AccessByItk, QmitkRigidRegistrationTransformsGUIBase::m_FixedImage, and m_TransformObject.

{
  if (m_FixedImage.IsNotNull())
  {
    AccessByItk(m_FixedImage, GetTransform2);
    return m_TransformObject;
  }
  return NULL;
}

itk::Array< double > QmitkTranslationTransformView::GetTransformParameters ( ) [virtual]

Implements QmitkRigidRegistrationTransformsGUIBase.

Definition at line 52 of file QmitkTranslationTransformView.cpp.

References m_Controls, Ui_QmitkTranslationTransformControls::m_ScalesTranslationTransformTranslationX, Ui_QmitkTranslationTransformControls::m_ScalesTranslationTransformTranslationY, Ui_QmitkTranslationTransformControls::m_ScalesTranslationTransformTranslationZ, and Ui_QmitkTranslationTransformControls::m_UseOptimizerScalesTranslation.

{
  itk::Array<double> transformValues;
  transformValues.SetSize(4);
  transformValues.fill(0);
  transformValues[0] = m_Controls.m_UseOptimizerScalesTranslation->isChecked();
  transformValues[1] = m_Controls.m_ScalesTranslationTransformTranslationX->text().toDouble();
  transformValues[2] = m_Controls.m_ScalesTranslationTransformTranslationY->text().toDouble();
  transformValues[3] = m_Controls.m_ScalesTranslationTransformTranslationZ->text().toDouble();
  return transformValues;
}

void QmitkTranslationTransformView::SetTransformParameters ( itk::Array< double > transformValues ) [virtual]

Implements QmitkRigidRegistrationTransformsGUIBase.

Definition at line 64 of file QmitkTranslationTransformView.cpp.

References m_Controls, Ui_QmitkTranslationTransformControls::m_ScalesTranslationTransformTranslationX, Ui_QmitkTranslationTransformControls::m_ScalesTranslationTransformTranslationY, Ui_QmitkTranslationTransformControls::m_ScalesTranslationTransformTranslationZ, and Ui_QmitkTranslationTransformControls::m_UseOptimizerScalesTranslation.

{
  m_Controls.m_UseOptimizerScalesTranslation->setChecked(transformValues[0]);
  m_Controls.m_ScalesTranslationTransformTranslationX->setText(QString::number(transformValues[1]));
  m_Controls.m_ScalesTranslationTransformTranslationY->setText(QString::number(transformValues[2]));
  m_Controls.m_ScalesTranslationTransformTranslationZ->setText(QString::number(transformValues[3]));
}

void QmitkTranslationTransformView::SetupUI ( QWidget * parent ) [virtual]

Implements QmitkRigidRegistrationTransformsGUIBase.

Definition at line 77 of file QmitkTranslationTransformView.cpp.

References m_Controls, Ui_QmitkTranslationTransformControls::m_ScalesTranslationTransformTranslationX, Ui_QmitkTranslationTransformControls::m_ScalesTranslationTransformTranslationY, Ui_QmitkTranslationTransformControls::m_ScalesTranslationTransformTranslationZ, and Ui_QmitkTranslationTransformControls::setupUi().

{
  m_Controls.setupUi(parent);
  QValidator* validatorLineEditInputFloat = new QDoubleValidator(0, 20000000, 8, this);
  m_Controls.m_ScalesTranslationTransformTranslationX->setValidator(validatorLineEditInputFloat);
  m_Controls.m_ScalesTranslationTransformTranslationY->setValidator(validatorLineEditInputFloat);
  m_Controls.m_ScalesTranslationTransformTranslationZ->setValidator(validatorLineEditInputFloat);
}

vtkTransform * QmitkTranslationTransformView::Transform	(	vtkMatrix4x4 *	vtkmatrix,
		vtkTransform *	vtktransform,
		itk::Array< double >	transformParams
	)		`[virtual]`

Implements QmitkRigidRegistrationTransformsGUIBase.

Definition at line 100 of file QmitkTranslationTransformView.cpp.

References QmitkRigidRegistrationTransformsGUIBase::m_MovingImage.

{
  if (m_MovingImage.IsNotNull())
  {
    if (transformParams.size() == 2)
    {
      vtktransform->Translate(transformParams[0], transformParams[1], 0);
    }
    else if (transformParams.size() == 3)
    {
      vtktransform->Translate(transformParams[0], transformParams[1], transformParams[2]);
      std::cout<<"Translation is: "<<transformParams[0] << transformParams[1] << transformParams[2] << std::endl;
    }
  }
  return vtktransform;
}

Member Data Documentation

Ui::QmitkTranslationTransformControls QmitkTranslationTransformView::m_Controls [protected]

Definition at line 63 of file QmitkTranslationTransformView.h.

Referenced by GetNumberOfTransformParameters(), GetScales(), GetTransformParameters(), SetTransformParameters(), and SetupUI().

itk::Object::Pointer QmitkTranslationTransformView::m_TransformObject [protected]

Definition at line 65 of file QmitkTranslationTransformView.h.

Referenced by GetTransform().

The documentation for this class was generated from the following files:
