QmitkTrackingSourcesCheckBoxPanelWidget Class Reference

QmitkTrackingSourcesCheckBoxPanelWidget. More...

#include <QmitkTrackingSourcesCheckBoxPanelWidget.h>

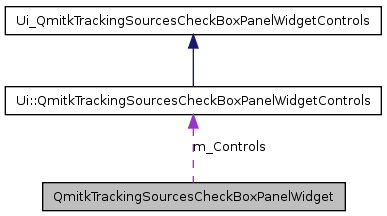

Collaboration diagram for QmitkTrackingSourcesCheckBoxPanelWidget:
Collaboration graph
[legend]

List of all members.

Public Types

typedef std::vector< QCheckBox * > TrackingSourcesCheckboxes

Public Slots

void ClearPanel ()
 when action perfom button is clicked

Signals

void Selected (int id)
void Deselected (int id)
 when a checkbox is selected
void PerformAction ()
 when a checkbox is deselected
void StopAction ()
 when action perfom button is pressed
void Action ()
 when action perform button is released

Public Member Functions

 QmitkTrackingSourcesCheckBoxPanelWidget (QWidget *parent)
 vector with checkboxes for all set NDs
virtual ~QmitkTrackingSourcesCheckBoxPanelWidget ()
 default destructor
void ShowSourceCheckboxes ()
 Shows the checkboxes.
void SetNavigationDatas (std::vector< mitk::NavigationData::Pointer > *navDatas)
 Sets the ND for this widget.
void AddNavigationData (mitk::NavigationData::Pointer nd)
 Adds a ND.
void SetInfoText (QString text)
 Sets this widget's info text.
void SetActionPerformButtonText (QString text)
 Sets this widget's action perform button text.
void SetActionPerformButtonCheckable (bool checkable)
 Sets whether the action perform button is checkable or not.
void HideActionPerformButton (bool hide)
 Hides or shows the action perfom button.
const std::vector< int > * GetSelectedTrackingSourcesIDs ()
 Returns the selected tracking sources IDs.
void SelectAll ()
 Selects all checkboxes in this widget.
void DeselectAll ()
 Deselects all checkboxes in this widget.
void SelectCheckbox (unsigned int idx)
 Selets the checkbox at the given position.
void DeselectCheckbox (unsigned int idx)
 Deselects the checkbox at the given position.
void EnableCheckboxes (bool enable)
 Enables or disabless the checkboxes in this widget.
void ClearSelectedIDs ()
 Clears the vector that holds the selected IDs.

Protected Slots

void OnCheckboxClicked (bool checked)
 clearing checkboxes from panel
void OnPerformActionClicked (bool toggled)
void OnPerformActionClicked ()

Protected Member Functions

void CreateConnections ()
void CreateQtPartControl (QWidget *parent)

Protected Attributes

Ui::QmitkTrackingSourcesCheckBoxPanelWidgetControls * m_Controls
 gui widgets

Detailed Description

QmitkTrackingSourcesCheckBoxPanelWidget.

Widget for setting up and controlling an update timer in an IGT-Pipeline.

Definition at line 36 of file QmitkTrackingSourcesCheckBoxPanelWidget.h.

Member Typedef Documentation

typedef std::vector< QCheckBox* > QmitkTrackingSourcesCheckBoxPanelWidget::TrackingSourcesCheckboxes

Definition at line 42 of file QmitkTrackingSourcesCheckBoxPanelWidget.h.

Constructor & Destructor Documentation

QmitkTrackingSourcesCheckBoxPanelWidget::QmitkTrackingSourcesCheckBoxPanelWidget ( QWidget *  parent )

vector with checkboxes for all set NDs

default constructor

Definition at line 23 of file QmitkTrackingSourcesCheckBoxPanelWidget.cpp.

References CreateQtPartControl().

: QWidget(parent), m_Controls(NULL), m_SourceCheckboxes(NULL), m_NavigationDatas(NULL), m_SelectedIds(NULL)
{
  this->CreateQtPartControl( this );
  m_SourceCheckboxes = new TrackingSourcesCheckboxes();
}
QmitkTrackingSourcesCheckBoxPanelWidget::~QmitkTrackingSourcesCheckBoxPanelWidget (  ) [virtual]

default destructor

Definition at line 30 of file QmitkTrackingSourcesCheckBoxPanelWidget.cpp.

{
  delete m_SelectedIds;
  delete m_SourceCheckboxes;
  delete m_NavigationDatas;
}

Member Function Documentation

void QmitkTrackingSourcesCheckBoxPanelWidget::Action (  ) [signal]

when action perform button is released

Referenced by OnPerformActionClicked().

void QmitkTrackingSourcesCheckBoxPanelWidget::AddNavigationData ( mitk::NavigationData::Pointer  nd )

Adds a ND.

Definition at line 63 of file QmitkTrackingSourcesCheckBoxPanelWidget.cpp.

{
   if(m_NavigationDatas == NULL)
     m_NavigationDatas = new std::vector<mitk::NavigationData::Pointer>();

   if( nd.IsNotNull() )
     m_NavigationDatas->push_back(nd);
}
void QmitkTrackingSourcesCheckBoxPanelWidget::ClearPanel (  ) [slot]

when action perfom button is clicked

Definition at line 90 of file QmitkTrackingSourcesCheckBoxPanelWidget.cpp.

References m_Controls, and Ui_QmitkTrackingSourcesCheckBoxPanelWidgetControls::m_GridLayout.

{
  while(m_Controls->m_GridLayout->count() > 0)
  {
    QWidget* actWidget = m_Controls->m_GridLayout->itemAt(0)->widget();
    m_Controls->m_GridLayout->removeWidget(actWidget);
    delete actWidget;
  }

  if(m_SourceCheckboxes != NULL || m_NavigationDatas != NULL)
  {
    m_SourceCheckboxes->clear();
    m_NavigationDatas->clear();
  }


}
void QmitkTrackingSourcesCheckBoxPanelWidget::ClearSelectedIDs (  )

Clears the vector that holds the selected IDs.

Definition at line 108 of file QmitkTrackingSourcesCheckBoxPanelWidget.cpp.

{
  if(m_SelectedIds != NULL && !m_SelectedIds->empty())
    m_SelectedIds->clear();
}
void QmitkTrackingSourcesCheckBoxPanelWidget::CreateConnections (  ) [protected]

Definition at line 49 of file QmitkTrackingSourcesCheckBoxPanelWidget.cpp.

References Ui_QmitkTrackingSourcesCheckBoxPanelWidgetControls::m_ActionButton, m_Controls, and OnPerformActionClicked().

Referenced by CreateQtPartControl().

{
  connect( (QPushButton*) m_Controls->m_ActionButton, SIGNAL(toggled(bool)), this, SLOT(OnPerformActionClicked(bool)) ) ;
  connect( (QPushButton*) m_Controls->m_ActionButton, SIGNAL(clicked()), this, SLOT(OnPerformActionClicked()) ) ;
}
void QmitkTrackingSourcesCheckBoxPanelWidget::CreateQtPartControl ( QWidget *  parent ) [protected]

Definition at line 37 of file QmitkTrackingSourcesCheckBoxPanelWidget.cpp.

References CreateConnections(), m_Controls, and Ui_QmitkTrackingSourcesCheckBoxPanelWidgetControls::setupUi().

Referenced by QmitkTrackingSourcesCheckBoxPanelWidget().

{
  if (!m_Controls)
  {
    // create GUI widgets
    m_Controls = new Ui::QmitkTrackingSourcesCheckBoxPanelWidgetControls;
    m_Controls->setupUi(parent);

    this->CreateConnections();
  }
}
void QmitkTrackingSourcesCheckBoxPanelWidget::DeselectAll (  )

Deselects all checkboxes in this widget.

Definition at line 162 of file QmitkTrackingSourcesCheckBoxPanelWidget.cpp.

{
  for(unsigned int i=0; i< m_SourceCheckboxes->size(); i++)
  {
    m_SourceCheckboxes->at(i)->setChecked(false);
  }
}
void QmitkTrackingSourcesCheckBoxPanelWidget::DeselectCheckbox ( unsigned int  idx )

Deselects the checkbox at the given position.

Definition at line 175 of file QmitkTrackingSourcesCheckBoxPanelWidget.cpp.

{
  m_SourceCheckboxes->at(idx)->setChecked(false);
}
void QmitkTrackingSourcesCheckBoxPanelWidget::Deselected ( int  id ) [signal]

when a checkbox is selected

Referenced by OnCheckboxClicked().

void QmitkTrackingSourcesCheckBoxPanelWidget::EnableCheckboxes ( bool  enable )

Enables or disabless the checkboxes in this widget.

Definition at line 146 of file QmitkTrackingSourcesCheckBoxPanelWidget.cpp.

{
  for(unsigned int i=0; i< m_SourceCheckboxes->size(); i++)
  {
    m_SourceCheckboxes->at(i)->setEnabled(enable);
  }
}
const std::vector< int > * QmitkTrackingSourcesCheckBoxPanelWidget::GetSelectedTrackingSourcesIDs (  )

Returns the selected tracking sources IDs.

Definition at line 74 of file QmitkTrackingSourcesCheckBoxPanelWidget.cpp.

{
  if(m_SelectedIds == NULL)
    m_SelectedIds = new std::vector<int>();
  else
    m_SelectedIds->clear();

  for (unsigned int i=0; i < m_SourceCheckboxes->size(); i++)
  {
    if(m_SourceCheckboxes->at(i)->isChecked())
      m_SelectedIds->push_back(i);
  }

  return m_SelectedIds;
}
void QmitkTrackingSourcesCheckBoxPanelWidget::HideActionPerformButton ( bool  hide )

Hides or shows the action perfom button.

Definition at line 219 of file QmitkTrackingSourcesCheckBoxPanelWidget.cpp.

References Ui_QmitkTrackingSourcesCheckBoxPanelWidgetControls::m_ActionButton, and m_Controls.

{
  if(hide)
    m_Controls->m_ActionButton->hide();
  else
    m_Controls->m_ActionButton->show();
}
void QmitkTrackingSourcesCheckBoxPanelWidget::OnCheckboxClicked ( bool  checked ) [protected, slot]

clearing checkboxes from panel

Definition at line 181 of file QmitkTrackingSourcesCheckBoxPanelWidget.cpp.

References Deselected(), and Selected().

Referenced by ShowSourceCheckboxes().

{
  QCheckBox* sender = qobject_cast< QCheckBox* > (QObject::sender());

  if( sender == NULL )
    throw std::invalid_argument("No sender found!");

  int idx = -1;

  for(unsigned int i=0 ;i < m_SourceCheckboxes->size(); i++)
  {
    if(sender == m_SourceCheckboxes->at(i))
    {   idx=i;
      break;
    }
  }

  if(idx>-1)
  {
    if(checked)
      emit Selected(idx);
    else
      emit Deselected(idx);
  }

}
void QmitkTrackingSourcesCheckBoxPanelWidget::OnPerformActionClicked ( bool  toggled ) [protected, slot]

Definition at line 236 of file QmitkTrackingSourcesCheckBoxPanelWidget.cpp.

References PerformAction(), and StopAction().

{
  if(toggled)
    emit PerformAction();
  else
    emit StopAction();
}
void QmitkTrackingSourcesCheckBoxPanelWidget::OnPerformActionClicked (  ) [protected, slot]

Definition at line 244 of file QmitkTrackingSourcesCheckBoxPanelWidget.cpp.

References Action().

Referenced by CreateConnections().

{
  emit Action();
}
void QmitkTrackingSourcesCheckBoxPanelWidget::PerformAction (  ) [signal]

when a checkbox is deselected

Referenced by OnPerformActionClicked().

void QmitkTrackingSourcesCheckBoxPanelWidget::SelectAll (  )

Selects all checkboxes in this widget.

Definition at line 154 of file QmitkTrackingSourcesCheckBoxPanelWidget.cpp.

{
  for(unsigned int i=0; i< m_SourceCheckboxes->size(); i++)
  {
    m_SourceCheckboxes->at(i)->setChecked(true);
  }
}
void QmitkTrackingSourcesCheckBoxPanelWidget::SelectCheckbox ( unsigned int  idx )

Selets the checkbox at the given position.

Definition at line 170 of file QmitkTrackingSourcesCheckBoxPanelWidget.cpp.

{
  m_SourceCheckboxes->at(idx)->setChecked(true);
}
void QmitkTrackingSourcesCheckBoxPanelWidget::Selected ( int  id ) [signal]

Referenced by OnCheckboxClicked().

void QmitkTrackingSourcesCheckBoxPanelWidget::SetActionPerformButtonCheckable ( bool  checkable )

Sets whether the action perform button is checkable or not.

Definition at line 228 of file QmitkTrackingSourcesCheckBoxPanelWidget.cpp.

References Ui_QmitkTrackingSourcesCheckBoxPanelWidgetControls::m_ActionButton, and m_Controls.

{
  if(checkable)
    m_Controls->m_ActionButton->setCheckable(true);
  else
    m_Controls->m_ActionButton->setCheckable(false);
}
void QmitkTrackingSourcesCheckBoxPanelWidget::SetActionPerformButtonText ( QString  text )

Sets this widget's action perform button text.

Definition at line 213 of file QmitkTrackingSourcesCheckBoxPanelWidget.cpp.

References Ui_QmitkTrackingSourcesCheckBoxPanelWidgetControls::m_ActionButton, and m_Controls.

{
  m_Controls->m_ActionButton->setText(text);
}
void QmitkTrackingSourcesCheckBoxPanelWidget::SetInfoText ( QString  text )

Sets this widget's info text.

Definition at line 208 of file QmitkTrackingSourcesCheckBoxPanelWidget.cpp.

References m_Controls, and Ui_QmitkTrackingSourcesCheckBoxPanelWidgetControls::m_InfoLabel.

{
  m_Controls->m_InfoLabel->setText(text);
}
void QmitkTrackingSourcesCheckBoxPanelWidget::SetNavigationDatas ( std::vector< mitk::NavigationData::Pointer > *  navDatas )

Sets the ND for this widget.

Definition at line 56 of file QmitkTrackingSourcesCheckBoxPanelWidget.cpp.

{
  if( navDatas != NULL )
    m_NavigationDatas = navDatas;
}
void QmitkTrackingSourcesCheckBoxPanelWidget::ShowSourceCheckboxes (  )

Shows the checkboxes.

Definition at line 114 of file QmitkTrackingSourcesCheckBoxPanelWidget.cpp.

References m_Controls, Ui_QmitkTrackingSourcesCheckBoxPanelWidgetControls::m_GridLayout, and OnCheckboxClicked().

{
  if( m_SourceCheckboxes != NULL )
    m_SourceCheckboxes->clear();

  if( m_NavigationDatas == NULL )
    return;

  QCheckBox* checkBox;

  int row = 0;
  int column;

  for(unsigned int i=0; i < m_NavigationDatas->size(); i++)  // puts a radiobutton for every tracking source output in a 2 columns QGridLayout
  {
    column = i % 4;
    if( i>0 && i%4==0 )
      row++;

    QString name(m_NavigationDatas->at(i).GetPointer()->GetName());

    checkBox = new QCheckBox(name, this);

    connect( checkBox, SIGNAL(toggled(bool)), this , SLOT(OnCheckboxClicked(bool)) );

    m_SourceCheckboxes->push_back(checkBox);
    m_Controls->m_GridLayout->addWidget(checkBox,row,column);

  }

}
void QmitkTrackingSourcesCheckBoxPanelWidget::StopAction (  ) [signal]

when action perfom button is pressed

Referenced by OnPerformActionClicked().

Member Data Documentation

Ui::QmitkTrackingSourcesCheckBoxPanelWidgetControls* QmitkTrackingSourcesCheckBoxPanelWidget::m_Controls [protected]

gui widgets

Definition at line 142 of file QmitkTrackingSourcesCheckBoxPanelWidget.h.

Referenced by ClearPanel(), CreateConnections(), CreateQtPartControl(), HideActionPerformButton(), SetActionPerformButtonCheckable(), SetActionPerformButtonText(), SetInfoText(), and ShowSourceCheckboxes().

The documentation for this class was generated from the following files:
 All Classes Namespaces Files Functions Variables Typedefs Enumerations Enumerator Properties Friends Defines
Generated on Tue Oct 19 2010 16:19:55 for mitk by  doxygen 1.7.2
