QmitkToolTrackingStatusWidget Class Reference

QmitkToolTrackingStatusWidget. More...

#include <QmitkToolTrackingStatusWidget.h>

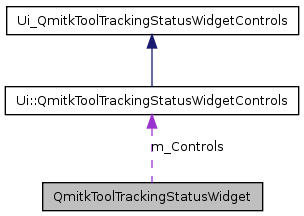

Collaboration diagram for QmitkToolTrackingStatusWidget:

List of all members.

Public Types
typedef std::vector < mitk::NavigationData::Pointer >	NavigationDataPointerArray
Public Member Functions
	QmitkToolTrackingStatusWidget (QWidget *parent)
	default constructor
virtual	~QmitkToolTrackingStatusWidget ()
	default destructor
void	ShowStatusLabels ()
	Sets up the labels in this widget's QGridLayout for showing the track status of the tracking tools.
void	SetNavigationDatas (std::vector< mitk::NavigationData::Pointer > *navDatas)
	Sets the ND for this widget.
void	AddNavigationData (mitk::NavigationData::Pointer nd)
void	Refresh ()
	Changes background color of status labels (green or red) to show if actual navigation data of each tool is valid.
void	RemoveStatusLabels ()
	Removes all status labels.
Protected Member Functions
void	CreateConnections ()
void	CreateQtPartControl (QWidget *parent)
Protected Attributes
Ui::QmitkToolTrackingStatusWidgetControls *	m_Controls
	gui widgets

---

Detailed Description

QmitkToolTrackingStatusWidget.

Widget for setting up and controlling an update timer in an IGT-Pipeline.

Definition at line 37 of file QmitkToolTrackingStatusWidget.h.

---

Member Typedef Documentation

typedef std::vector< mitk::NavigationData::Pointer > QmitkToolTrackingStatusWidget::NavigationDataPointerArray

Definition at line 43 of file QmitkToolTrackingStatusWidget.h.

---

Constructor & Destructor Documentation

QmitkToolTrackingStatusWidget::QmitkToolTrackingStatusWidget

(

QWidget *

parent )

default constructor

Definition at line 24 of file QmitkToolTrackingStatusWidget.cpp.

References CreateQtPartControl().

: QWidget(parent), m_Controls(NULL), m_StatusLabels (NULL), m_NavigationDatas(NULL)
{
  this->CreateQtPartControl( this );
}

QmitkToolTrackingStatusWidget::~QmitkToolTrackingStatusWidget

(

)

[virtual]

default destructor

Definition at line 30 of file QmitkToolTrackingStatusWidget.cpp.

{
  //m_Controls = NULL;
  delete m_StatusLabels;
  delete m_NavigationDatas;
}

---

Member Function Documentation

void QmitkToolTrackingStatusWidget::AddNavigationData

(

mitk::NavigationData::Pointer

nd )

Definition at line 61 of file QmitkToolTrackingStatusWidget.cpp.

{
   if(m_NavigationDatas == NULL)
     m_NavigationDatas = new std::vector<mitk::NavigationData::Pointer>();

   m_NavigationDatas->push_back(nd);
}

void QmitkToolTrackingStatusWidget::CreateConnections

(

)

[protected]

Definition at line 49 of file QmitkToolTrackingStatusWidget.cpp.

Referenced by CreateQtPartControl().

{

}

void QmitkToolTrackingStatusWidget::CreateQtPartControl

(

QWidget *

parent )

[protected]

Definition at line 37 of file QmitkToolTrackingStatusWidget.cpp.

References CreateConnections(), m_Controls, and Ui_QmitkToolTrackingStatusWidgetControls::setupUi().

Referenced by QmitkToolTrackingStatusWidget().

{
  if (!m_Controls)
  {
    // create GUI widgets
    m_Controls = new Ui::QmitkToolTrackingStatusWidgetControls;
    m_Controls->setupUi(parent);

    this->CreateConnections();
  }
}

void QmitkToolTrackingStatusWidget::Refresh

(

)

Changes background color of status labels (green or red) to show if actual navigation data of each tool is valid.

Definition at line 70 of file QmitkToolTrackingStatusWidget.cpp.

References mitk::NavigationData::GetName(), and mitk::NavigationData::IsDataValid().

{
  mitk::NavigationData* navData;

  for(unsigned int i = 0; i < m_NavigationDatas->size(); i++)
  {
    navData = m_NavigationDatas->at(i).GetPointer();
    QString name(navData->GetName());

    if(name.compare(m_StatusLabels->at(i)->text()) == 0)
    {
      if(navData->IsDataValid())
        m_StatusLabels->at(i)->setStyleSheet("QLabel{background-color: #8bff8b }");
      else
        m_StatusLabels->at(i)->setStyleSheet("QLabel{background-color: #ff7878 }");
    }
  }
}

void QmitkToolTrackingStatusWidget::RemoveStatusLabels

(

)

Removes all status labels.

Definition at line 113 of file QmitkToolTrackingStatusWidget.cpp.

References m_Controls, and Ui_QmitkToolTrackingStatusWidgetControls::m_GridLayout.

{

  while(m_Controls->m_GridLayout->count() > 0)
  {
    QWidget* actWidget = m_Controls->m_GridLayout->itemAt(0)->widget();
    m_Controls->m_GridLayout->removeWidget(actWidget);
    delete actWidget;
  }

  m_StatusLabels->clear();
  m_NavigationDatas->clear();

}

void QmitkToolTrackingStatusWidget::SetNavigationDatas

(

std::vector< mitk::NavigationData::Pointer > *

navDatas )

Sets the ND for this widget.

Definition at line 55 of file QmitkToolTrackingStatusWidget.cpp.

{
  m_NavigationDatas = navDatas;
}

void QmitkToolTrackingStatusWidget::ShowStatusLabels

(

)

Sets up the labels in this widget's QGridLayout for showing the track status of the tracking tools.

Definition at line 90 of file QmitkToolTrackingStatusWidget.cpp.

References m_Controls, and Ui_QmitkToolTrackingStatusWidgetControls::m_GridLayout.

{
  m_StatusLabels = new QVector<QLabel*>();
  mitk::NavigationData* navData;
  QLabel* label;

  for(unsigned int i = 0; i < m_NavigationDatas->size(); i++)
  {
    navData = m_NavigationDatas->at(i).GetPointer();

    QString name(navData->GetName());

    label = new QLabel(name, this);
    label->setAlignment(Qt::AlignHCenter | Qt::AlignVCenter);
    label->setFrameStyle(QFrame::Panel | QFrame::Sunken);


    m_StatusLabels->append(label);
    m_Controls->m_GridLayout->addWidget(m_StatusLabels->at(i),0,i);
  }
}

---

Member Data Documentation

Ui::QmitkToolTrackingStatusWidgetControls* QmitkToolTrackingStatusWidget::m_Controls [protected]

gui widgets

Definition at line 83 of file QmitkToolTrackingStatusWidget.h.

Referenced by CreateQtPartControl(), RemoveStatusLabels(), and ShowStatusLabels().

---

The documentation for this class was generated from the following files:

• QmitkToolTrackingStatusWidget.h
• QmitkToolTrackingStatusWidget.cpp
