Widget for rigid registration. More...

#include <QmitkScaleTransformView.h>

Inheritance diagram for QmitkScaleTransformView:

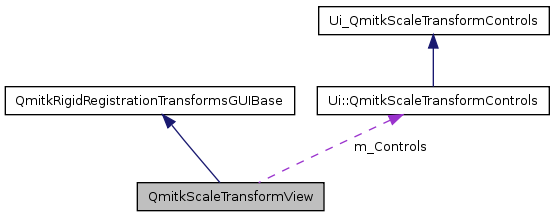

Collaboration diagram for QmitkScaleTransformView:

Public Member Functions
	QmitkScaleTransformView (QWidget *parent=0, Qt::WindowFlags f=0)
	~QmitkScaleTransformView ()
virtual itk::Object::Pointer	GetTransform ()
virtual itk::Array< double >	GetTransformParameters ()
virtual void	SetTransformParameters (itk::Array< double > transformValues)
virtual QString	GetName ()
virtual void	SetupUI (QWidget *parent)
virtual itk::Array< double >	GetScales ()
virtual vtkTransform *	Transform (vtkMatrix4x4 vtkmatrix, vtkTransform vtktransform, itk::Array< double > transformParams)
virtual int	GetNumberOfTransformParameters ()
Protected Attributes
Ui::QmitkScaleTransformControls	m_Controls
itk::Object::Pointer	m_TransformObject

Detailed Description

Widget for rigid registration.

Displays options for rigid registration.

Definition at line 31 of file QmitkScaleTransformView.h.

Constructor & Destructor Documentation

QmitkScaleTransformView::QmitkScaleTransformView	(	QWidget *	parent = `0`,
		Qt::WindowFlags	f = `0`
	)

Definition at line 23 of file QmitkScaleTransformView.cpp.

                                                                                  : QmitkRigidRegistrationTransformsGUIBase(parent, f)
{
}

QmitkScaleTransformView::~QmitkScaleTransformView ( )

Definition at line 27 of file QmitkScaleTransformView.cpp.

{
}

Member Function Documentation

QString QmitkScaleTransformView::GetName ( ) [virtual]

Implements QmitkRigidRegistrationTransformsGUIBase.

Definition at line 72 of file QmitkScaleTransformView.cpp.

{
  return "Scale";
}

int QmitkScaleTransformView::GetNumberOfTransformParameters ( ) [virtual]

Implements QmitkRigidRegistrationTransformsGUIBase.

Definition at line 113 of file QmitkScaleTransformView.cpp.

References m_Controls, QmitkRigidRegistrationTransformsGUIBase::m_FixedImage, Ui_QmitkScaleTransformControls::m_ScalesScaleTransformScaleZ, and Ui_QmitkScaleTransformControls::textLabel3_5.

{
  if (m_FixedImage.IsNotNull())
  {
    if (m_FixedImage->GetDimension() == 2)
    {
      m_Controls.m_ScalesScaleTransformScaleZ->hide();
      m_Controls.textLabel3_5->hide();
      return 2;
    }
    else
    {
      m_Controls.m_ScalesScaleTransformScaleZ->show();
      m_Controls.textLabel3_5->show();
      this->repaint();
      return 3;
    }
  }
  else
    return 0;
}

itk::Array< double > QmitkScaleTransformView::GetScales ( ) [virtual]

Implements QmitkRigidRegistrationTransformsGUIBase.

Definition at line 86 of file QmitkScaleTransformView.cpp.

References m_Controls, Ui_QmitkScaleTransformControls::m_ScalesScaleTransformScaleX, Ui_QmitkScaleTransformControls::m_ScalesScaleTransformScaleY, Ui_QmitkScaleTransformControls::m_ScalesScaleTransformScaleZ, and Ui_QmitkScaleTransformControls::m_UseOptimizerScalesScale.

{
  itk::Array<double> scales;
  scales.SetSize(3);
  scales.Fill(1.0);
  if (m_Controls.m_UseOptimizerScalesScale->isChecked())
  {
    scales[0] = m_Controls.m_ScalesScaleTransformScaleX->text().toDouble();
    scales[1] = m_Controls.m_ScalesScaleTransformScaleY->text().toDouble();
    scales[2] = m_Controls.m_ScalesScaleTransformScaleZ->text().toDouble();
  }
  return scales;
}

itk::Object::Pointer QmitkScaleTransformView::GetTransform ( ) [virtual]

Implements QmitkRigidRegistrationTransformsGUIBase.

Definition at line 31 of file QmitkScaleTransformView.cpp.

References AccessByItk, QmitkRigidRegistrationTransformsGUIBase::m_FixedImage, and m_TransformObject.

{
  if (m_FixedImage.IsNotNull())
  {
    AccessByItk(m_FixedImage, GetTransform2);
    return m_TransformObject;
  }
  return NULL;
}

itk::Array< double > QmitkScaleTransformView::GetTransformParameters ( ) [virtual]

Implements QmitkRigidRegistrationTransformsGUIBase.

Definition at line 52 of file QmitkScaleTransformView.cpp.

References m_Controls, Ui_QmitkScaleTransformControls::m_ScalesScaleTransformScaleX, Ui_QmitkScaleTransformControls::m_ScalesScaleTransformScaleY, Ui_QmitkScaleTransformControls::m_ScalesScaleTransformScaleZ, and Ui_QmitkScaleTransformControls::m_UseOptimizerScalesScale.

{
  itk::Array<double> transformValues;
  transformValues.SetSize(4);
  transformValues.fill(0);
  transformValues[0] = m_Controls.m_UseOptimizerScalesScale->isChecked();
  transformValues[1] = m_Controls.m_ScalesScaleTransformScaleX->text().toDouble();
  transformValues[2] = m_Controls.m_ScalesScaleTransformScaleY->text().toDouble();
  transformValues[3] = m_Controls.m_ScalesScaleTransformScaleZ->text().toDouble();
  return transformValues;
}

void QmitkScaleTransformView::SetTransformParameters ( itk::Array< double > transformValues ) [virtual]

Implements QmitkRigidRegistrationTransformsGUIBase.

Definition at line 64 of file QmitkScaleTransformView.cpp.

References m_Controls, Ui_QmitkScaleTransformControls::m_ScalesScaleTransformScaleX, Ui_QmitkScaleTransformControls::m_ScalesScaleTransformScaleY, Ui_QmitkScaleTransformControls::m_ScalesScaleTransformScaleZ, and Ui_QmitkScaleTransformControls::m_UseOptimizerScalesScale.

{
  m_Controls.m_UseOptimizerScalesScale->setChecked(transformValues[0]);
  m_Controls.m_ScalesScaleTransformScaleX->setText(QString::number(transformValues[1]));
  m_Controls.m_ScalesScaleTransformScaleY->setText(QString::number(transformValues[2]));
  m_Controls.m_ScalesScaleTransformScaleZ->setText(QString::number(transformValues[3]));
}

void QmitkScaleTransformView::SetupUI ( QWidget * parent ) [virtual]

Implements QmitkRigidRegistrationTransformsGUIBase.

Definition at line 77 of file QmitkScaleTransformView.cpp.

References m_Controls, Ui_QmitkScaleTransformControls::m_ScalesScaleTransformScaleX, Ui_QmitkScaleTransformControls::m_ScalesScaleTransformScaleY, Ui_QmitkScaleTransformControls::m_ScalesScaleTransformScaleZ, and Ui_QmitkScaleTransformControls::setupUi().

{
  m_Controls.setupUi(parent);
  QValidator* validatorLineEditInputFloat = new QDoubleValidator(0, 20000000, 8, this);
  m_Controls.m_ScalesScaleTransformScaleX->setValidator(validatorLineEditInputFloat);
  m_Controls.m_ScalesScaleTransformScaleY->setValidator(validatorLineEditInputFloat);
  m_Controls.m_ScalesScaleTransformScaleZ->setValidator(validatorLineEditInputFloat);
}

vtkTransform * QmitkScaleTransformView::Transform	(	vtkMatrix4x4 *	vtkmatrix,
		vtkTransform *	vtktransform,
		itk::Array< double >	transformParams
	)		`[virtual]`

Implements QmitkRigidRegistrationTransformsGUIBase.

Definition at line 100 of file QmitkScaleTransformView.cpp.

References QmitkRigidRegistrationTransformsGUIBase::m_MovingImage.

{
  if (m_MovingImage.IsNotNull())
  {
    for( unsigned int i=0; i<transformParams.size(); i++)
    {
      vtkmatrix->SetElement(i, i, transformParams[i]);
    }
    vtktransform->SetMatrix(vtkmatrix);
  }
  return vtktransform;
}

Member Data Documentation

Ui::QmitkScaleTransformControls QmitkScaleTransformView::m_Controls [protected]

Definition at line 63 of file QmitkScaleTransformView.h.

Referenced by GetNumberOfTransformParameters(), GetScales(), GetTransformParameters(), SetTransformParameters(), and SetupUI().

itk::Object::Pointer QmitkScaleTransformView::m_TransformObject [protected]

Definition at line 65 of file QmitkScaleTransformView.h.

Referenced by GetTransform().

The documentation for this class was generated from the following files:
