Widget for rigid registration. More...

#include <QmitkRigid3DTransformView.h>

Inheritance diagram for QmitkRigid3DTransformView:

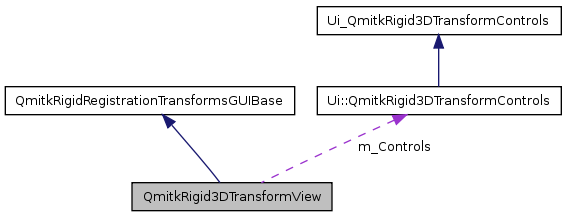

Collaboration diagram for QmitkRigid3DTransformView:

Public Member Functions
	QmitkRigid3DTransformView (QWidget *parent=0, Qt::WindowFlags f=0)
	~QmitkRigid3DTransformView ()
virtual itk::Object::Pointer	GetTransform ()
virtual itk::Array< double >	GetTransformParameters ()
virtual void	SetTransformParameters (itk::Array< double > transformValues)
virtual QString	GetName ()
virtual void	SetupUI (QWidget *parent)
virtual itk::Array< double >	GetScales ()
virtual vtkTransform *	Transform (vtkMatrix4x4 vtkmatrix, vtkTransform vtktransform, itk::Array< double > transformParams)
virtual int	GetNumberOfTransformParameters ()
Protected Attributes
Ui::QmitkRigid3DTransformControls	m_Controls
itk::Object::Pointer	m_TransformObject
double	m_CenterX
double	m_CenterY
double	m_CenterZ

Detailed Description

Widget for rigid registration.

Displays options for rigid registration.

Definition at line 31 of file QmitkRigid3DTransformView.h.

Constructor & Destructor Documentation

QmitkRigid3DTransformView::QmitkRigid3DTransformView	(	QWidget *	parent = `0`,
		Qt::WindowFlags	f = `0`
	)

Definition at line 24 of file QmitkRigid3DTransformView.cpp.

                                                                                      : QmitkRigidRegistrationTransformsGUIBase(parent, f),
m_CenterX(0), m_CenterY(0), m_CenterZ(0)
{
}

QmitkRigid3DTransformView::~QmitkRigid3DTransformView ( )

Definition at line 29 of file QmitkRigid3DTransformView.cpp.

{
}

Member Function Documentation

QString QmitkRigid3DTransformView::GetName ( ) [virtual]

Implements QmitkRigidRegistrationTransformsGUIBase.

Definition at line 104 of file QmitkRigid3DTransformView.cpp.

{
  return "Rigid3D";
}

int QmitkRigid3DTransformView::GetNumberOfTransformParameters ( ) [virtual]

Implements QmitkRigidRegistrationTransformsGUIBase.

Definition at line 178 of file QmitkRigid3DTransformView.cpp.

References QmitkRigidRegistrationTransformsGUIBase::m_FixedImage.

{
  if (m_FixedImage.IsNotNull())
  {
    if (m_FixedImage->GetDimension() == 2)
      return 6;
    else
      return 12;
  }
  else
    return 0;
}

itk::Array< double > QmitkRigid3DTransformView::GetScales ( ) [virtual]

Implements QmitkRigidRegistrationTransformsGUIBase.

Definition at line 127 of file QmitkRigid3DTransformView.cpp.

{
  itk::Array<double> scales;
  scales.SetSize(12);
  scales.Fill(1.0);
  if (m_Controls.m_UseOptimizerScalesRigid3D->isChecked())
  {
    scales[0] = m_Controls.m_ScalesRigid3DTransformScale1->text().toDouble();
    scales[1] = m_Controls.m_ScalesRigid3DTransformScale2->text().toDouble();
    scales[2] = m_Controls.m_ScalesRigid3DTransformScale3->text().toDouble();
    scales[3] = m_Controls.m_ScalesRigid3DTransformScale4->text().toDouble();
    scales[4] = m_Controls.m_ScalesRigid3DTransformScale5->text().toDouble();
    scales[5] = m_Controls.m_ScalesRigid3DTransformScale6->text().toDouble();
    scales[6] = m_Controls.m_ScalesRigid3DTransformScale7->text().toDouble();
    scales[7] = m_Controls.m_ScalesRigid3DTransformScale8->text().toDouble();
    scales[8] = m_Controls.m_ScalesRigid3DTransformScale9->text().toDouble();
    scales[9] = m_Controls.m_ScalesRigid3DTransformScaleTranslationX->text().toDouble();
    scales[10] = m_Controls.m_ScalesRigid3DTransformScaleTranslationY->text().toDouble();
    scales[11] = m_Controls.m_ScalesRigid3DTransformScaleTranslationZ->text().toDouble();
  }
  return scales;
}

itk::Object::Pointer QmitkRigid3DTransformView::GetTransform ( ) [virtual]

Implements QmitkRigidRegistrationTransformsGUIBase.

Definition at line 33 of file QmitkRigid3DTransformView.cpp.

References AccessByItk, QmitkRigidRegistrationTransformsGUIBase::m_FixedImage, and m_TransformObject.

{
  if (m_FixedImage.IsNotNull())
  {
    AccessByItk(m_FixedImage, GetTransform2);
    return m_TransformObject;
  }
  return NULL;
}

itk::Array< double > QmitkRigid3DTransformView::GetTransformParameters ( ) [virtual]

Implements QmitkRigidRegistrationTransformsGUIBase.

Definition at line 61 of file QmitkRigid3DTransformView.cpp.

{
  itk::Array<double> transformValues;
  transformValues.SetSize(15);
  transformValues.fill(0);
  transformValues[0] = m_Controls.m_UseOptimizerScalesRigid3D->isChecked();
  transformValues[1] = m_Controls.m_ScalesRigid3DTransformScale1->text().toDouble();
  transformValues[2] = m_Controls.m_ScalesRigid3DTransformScale2->text().toDouble();
  transformValues[3] = m_Controls.m_ScalesRigid3DTransformScale3->text().toDouble();
  transformValues[4] = m_Controls.m_ScalesRigid3DTransformScale4->text().toDouble();
  transformValues[5] = m_Controls.m_ScalesRigid3DTransformScale5->text().toDouble();
  transformValues[6] = m_Controls.m_ScalesRigid3DTransformScale6->text().toDouble();
  transformValues[7] = m_Controls.m_ScalesRigid3DTransformScale7->text().toDouble();
  transformValues[8] = m_Controls.m_ScalesRigid3DTransformScale8->text().toDouble();
  transformValues[9] = m_Controls.m_ScalesRigid3DTransformScale9->text().toDouble();
  transformValues[10] = m_Controls.m_ScalesRigid3DTransformScaleTranslationX->text().toDouble();
  transformValues[11] = m_Controls.m_ScalesRigid3DTransformScaleTranslationY->text().toDouble();
  transformValues[12] = m_Controls.m_ScalesRigid3DTransformScaleTranslationZ->text().toDouble();
  transformValues[13] = m_Controls.m_CenterForInitializerRigid3D->isChecked();
  transformValues[14] = m_Controls.m_MomentsRigid3D->isChecked();
  return transformValues;
}

void QmitkRigid3DTransformView::SetTransformParameters ( itk::Array< double > transformValues ) [virtual]

Implements QmitkRigidRegistrationTransformsGUIBase.

Definition at line 84 of file QmitkRigid3DTransformView.cpp.

{
  m_Controls.m_UseOptimizerScalesRigid3D->setChecked(transformValues[0]);
  m_Controls.m_ScalesRigid3DTransformScale1->setText(QString::number(transformValues[1]));
  m_Controls.m_ScalesRigid3DTransformScale2->setText(QString::number(transformValues[2]));
  m_Controls.m_ScalesRigid3DTransformScale3->setText(QString::number(transformValues[3]));
  m_Controls.m_ScalesRigid3DTransformScale4->setText(QString::number(transformValues[4]));
  m_Controls.m_ScalesRigid3DTransformScale5->setText(QString::number(transformValues[5]));
  m_Controls.m_ScalesRigid3DTransformScale6->setText(QString::number(transformValues[6]));
  m_Controls.m_ScalesRigid3DTransformScale7->setText(QString::number(transformValues[7]));
  m_Controls.m_ScalesRigid3DTransformScale8->setText(QString::number(transformValues[8]));
  m_Controls.m_ScalesRigid3DTransformScale9->setText(QString::number(transformValues[9]));
  m_Controls.m_ScalesRigid3DTransformScaleTranslationX->setText(QString::number(transformValues[10]));
  m_Controls.m_ScalesRigid3DTransformScaleTranslationY->setText(QString::number(transformValues[11]));
  m_Controls.m_ScalesRigid3DTransformScaleTranslationZ->setText(QString::number(transformValues[12]));
  m_Controls.m_CenterForInitializerRigid3D->setChecked(transformValues[13]);
  m_Controls.m_MomentsRigid3D->setChecked(transformValues[14]);
  m_Controls.m_GeometryRigid3D->setChecked(!transformValues[14]);
}

void QmitkRigid3DTransformView::SetupUI ( QWidget * parent ) [virtual]

Implements QmitkRigidRegistrationTransformsGUIBase.

Definition at line 109 of file QmitkRigid3DTransformView.cpp.

{
  m_Controls.setupUi(parent);
  QValidator* validatorLineEditInputFloat = new QDoubleValidator(0, 20000000, 8, this);
  m_Controls.m_ScalesRigid3DTransformScale1->setValidator(validatorLineEditInputFloat);
  m_Controls.m_ScalesRigid3DTransformScale2->setValidator(validatorLineEditInputFloat);
  m_Controls.m_ScalesRigid3DTransformScale3->setValidator(validatorLineEditInputFloat);
  m_Controls.m_ScalesRigid3DTransformScale4->setValidator(validatorLineEditInputFloat);
  m_Controls.m_ScalesRigid3DTransformScale5->setValidator(validatorLineEditInputFloat);
  m_Controls.m_ScalesRigid3DTransformScale6->setValidator(validatorLineEditInputFloat);
  m_Controls.m_ScalesRigid3DTransformScale7->setValidator(validatorLineEditInputFloat);
  m_Controls.m_ScalesRigid3DTransformScale8->setValidator(validatorLineEditInputFloat);
  m_Controls.m_ScalesRigid3DTransformScale9->setValidator(validatorLineEditInputFloat);
  m_Controls.m_ScalesRigid3DTransformScaleTranslationX->setValidator(validatorLineEditInputFloat);
  m_Controls.m_ScalesRigid3DTransformScaleTranslationY->setValidator(validatorLineEditInputFloat);
  m_Controls.m_ScalesRigid3DTransformScaleTranslationZ->setValidator(validatorLineEditInputFloat);
}

vtkTransform * QmitkRigid3DTransformView::Transform	(	vtkMatrix4x4 *	vtkmatrix,
		vtkTransform *	vtktransform,
		itk::Array< double >	transformParams
	)		`[virtual]`

Implements QmitkRigidRegistrationTransformsGUIBase.

Definition at line 150 of file QmitkRigid3DTransformView.cpp.

References m_CenterX, m_CenterY, m_CenterZ, and QmitkRigidRegistrationTransformsGUIBase::m_MovingImage.

{
  if (m_MovingImage.IsNotNull())
  {
    int m = 0;
    for (int i = 0; i < 3; i++)
    {
      for (int j = 0; j < 3; j++)
      {
        vtkmatrix->SetElement(i, j, transformParams[m]);
        m++;
      }
    }
    float center[4];
    float translation[4];
    center[0] = m_CenterX;
    center[1] = m_CenterY;
    center[2] = m_CenterZ;
    center[3] = 1;
    vtkmatrix->MultiplyPoint(center, translation);
    vtkmatrix->SetElement(0, 3, -translation[0] + center[0] + transformParams[9]);
    vtkmatrix->SetElement(1, 3, -translation[1] + center[1] + transformParams[10]);
    vtkmatrix->SetElement(2, 3, -translation[2] + center[2] + transformParams[11]);
    vtktransform->SetMatrix(vtkmatrix);
  }
  return vtktransform;
}
