Widget for rigid registration. More...

#include <QmitkRegularStepGradientDescentOptimizerView.h>

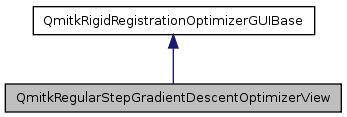

Inheritance diagram for QmitkRegularStepGradientDescentOptimizerView:

Collaboration diagram for QmitkRegularStepGradientDescentOptimizerView:

Public Member Functions
	QmitkRegularStepGradientDescentOptimizerView (QWidget *parent=0, Qt::WindowFlags f=0)
	~QmitkRegularStepGradientDescentOptimizerView ()
virtual itk::Object::Pointer	GetOptimizer ()
virtual itk::Array< double >	GetOptimizerParameters ()
virtual void	SetOptimizerParameters (itk::Array< double > metricValues)
virtual void	SetNumberOfTransformParameters (int transformParameters)
virtual QString	GetName ()
virtual void	SetupUI (QWidget *parent)
Protected Attributes
Ui::QmitkRegularStepGradientDescentOptimizerControls	m_Controls
int	m_NumberTransformParameters

Detailed Description

Widget for rigid registration.

Displays options for rigid registration.

Definition at line 33 of file QmitkRegularStepGradientDescentOptimizerView.h.

Constructor & Destructor Documentation

QmitkRegularStepGradientDescentOptimizerView::QmitkRegularStepGradientDescentOptimizerView	(	QWidget *	parent = `0`,
		Qt::WindowFlags	f = `0`
	)

Definition at line 22 of file QmitkRegularStepGradientDescentOptimizerView.cpp.

                                                                                                                            : QmitkRigidRegistrationOptimizerGUIBase (parent, f),
m_NumberTransformParameters(16)
{

}

QmitkRegularStepGradientDescentOptimizerView::~QmitkRegularStepGradientDescentOptimizerView ( )

Definition at line 28 of file QmitkRegularStepGradientDescentOptimizerView.cpp.

{
}

Member Function Documentation

QString QmitkRegularStepGradientDescentOptimizerView::GetName ( ) [virtual]

Implements QmitkRigidRegistrationOptimizerGUIBase.

Definition at line 73 of file QmitkRegularStepGradientDescentOptimizerView.cpp.

{
  return "RegularStepGradientDescent";
}

itk::Object::Pointer QmitkRegularStepGradientDescentOptimizerView::GetOptimizer ( ) [virtual]

Implements QmitkRigidRegistrationOptimizerGUIBase.

Definition at line 32 of file QmitkRegularStepGradientDescentOptimizerView.cpp.

{
  itk::RegularStepGradientDescentOptimizer::Pointer OptimizerPointer = itk::RegularStepGradientDescentOptimizer::New();
  OptimizerPointer->SetMaximize( m_Controls.m_Maximize->isChecked() );
  OptimizerPointer->SetGradientMagnitudeTolerance( m_Controls.m_GradientMagnitudeToleranceRegularStepGradientDescent->text().toFloat() );
  OptimizerPointer->SetMinimumStepLength( m_Controls.m_MinimumStepLengthRegularStepGradientDescent->text().toFloat() );
  OptimizerPointer->SetMaximumStepLength( m_Controls.m_MaximumStepLengthRegularStepGradientDescent->text().toFloat() );
  OptimizerPointer->SetRelaxationFactor( m_Controls.m_RelaxationFactorRegularStepGradientDescent->text().toFloat() );
  OptimizerPointer->SetNumberOfIterations( m_Controls.m_IterationsRegularStepGradientDescent->text().toInt() );
  return OptimizerPointer.GetPointer();
}

itk::Array< double > QmitkRegularStepGradientDescentOptimizerView::GetOptimizerParameters ( ) [virtual]

Implements QmitkRigidRegistrationOptimizerGUIBase.

Definition at line 44 of file QmitkRegularStepGradientDescentOptimizerView.cpp.

{
  itk::Array<double> optimizerValues;
  optimizerValues.SetSize(6);
  optimizerValues.fill(0);
  optimizerValues[0] = m_Controls.m_Maximize->isChecked();
  optimizerValues[1] = m_Controls.m_GradientMagnitudeToleranceRegularStepGradientDescent->text().toFloat();
  optimizerValues[2] = m_Controls.m_MinimumStepLengthRegularStepGradientDescent->text().toFloat();
  optimizerValues[3] = m_Controls.m_MaximumStepLengthRegularStepGradientDescent->text().toFloat();
  optimizerValues[4] = m_Controls.m_RelaxationFactorRegularStepGradientDescent->text().toFloat();
  optimizerValues[5] = m_Controls.m_IterationsRegularStepGradientDescent->text().toInt();
  return optimizerValues;
}

void QmitkRegularStepGradientDescentOptimizerView::SetNumberOfTransformParameters ( int transformParameters ) [virtual]

Implements QmitkRigidRegistrationOptimizerGUIBase.

Definition at line 68 of file QmitkRegularStepGradientDescentOptimizerView.cpp.

References m_NumberTransformParameters.

{
  m_NumberTransformParameters = transformParameters;
}

void QmitkRegularStepGradientDescentOptimizerView::SetOptimizerParameters ( itk::Array< double > metricValues ) [virtual]

Implements QmitkRigidRegistrationOptimizerGUIBase.

Definition at line 58 of file QmitkRegularStepGradientDescentOptimizerView.cpp.

{
  m_Controls.m_Maximize->setChecked(optimizerValues[0]);
  m_Controls.m_GradientMagnitudeToleranceRegularStepGradientDescent->setText(QString::number(optimizerValues[1]));
  m_Controls.m_MinimumStepLengthRegularStepGradientDescent->setText(QString::number(optimizerValues[2]));
  m_Controls.m_MaximumStepLengthRegularStepGradientDescent->setText(QString::number(optimizerValues[3]));
  m_Controls.m_RelaxationFactorRegularStepGradientDescent->setText(QString::number(optimizerValues[4]));
  m_Controls.m_IterationsRegularStepGradientDescent->setText(QString::number(optimizerValues[5]));
}

void QmitkRegularStepGradientDescentOptimizerView::SetupUI ( QWidget * parent ) [virtual]

Implements QmitkRigidRegistrationOptimizerGUIBase.

Definition at line 78 of file QmitkRegularStepGradientDescentOptimizerView.cpp.

References m_Controls, Ui_QmitkRegularStepGradientDescentOptimizerControls::m_GradientMagnitudeToleranceRegularStepGradientDescent, Ui_QmitkRegularStepGradientDescentOptimizerControls::m_IterationsRegularStepGradientDescent, Ui_QmitkRegularStepGradientDescentOptimizerControls::m_MaximumStepLengthRegularStepGradientDescent, Ui_QmitkRegularStepGradientDescentOptimizerControls::m_MinimumStepLengthRegularStepGradientDescent, Ui_QmitkRegularStepGradientDescentOptimizerControls::m_RelaxationFactorRegularStepGradientDescent, and Ui_QmitkRegularStepGradientDescentOptimizerControls::setupUi().

{
  m_Controls.setupUi(parent);
  QValidator* validatorLineEditInput = new QIntValidator(0, 20000000, this);
  m_Controls.m_IterationsRegularStepGradientDescent->setValidator(validatorLineEditInput);
  QValidator* validatorLineEditInputFloat = new QDoubleValidator(0, 20000000, 8, this);
  m_Controls.m_GradientMagnitudeToleranceRegularStepGradientDescent->setValidator(validatorLineEditInputFloat);
  m_Controls.m_MinimumStepLengthRegularStepGradientDescent->setValidator(validatorLineEditInputFloat);
  m_Controls.m_MaximumStepLengthRegularStepGradientDescent->setValidator(validatorLineEditInputFloat);
  QValidator* validatorLineEditInputFloat0to1 = new QDoubleValidator(0.000001, 0.999999, 8, this);
  m_Controls.m_RelaxationFactorRegularStepGradientDescent->setValidator(validatorLineEditInputFloat0to1);
}

Member Data Documentation

Ui::QmitkRegularStepGradientDescentOptimizerControls QmitkRegularStepGradientDescentOptimizerView::m_Controls [protected]

Definition at line 56 of file QmitkRegularStepGradientDescentOptimizerView.h.

Referenced by GetOptimizer(), GetOptimizerParameters(), SetOptimizerParameters(), and SetupUI().

int QmitkRegularStepGradientDescentOptimizerView::m_NumberTransformParameters [protected]

Definition at line 58 of file QmitkRegularStepGradientDescentOptimizerView.h.

Referenced by SetNumberOfTransformParameters().

The documentation for this class was generated from the following files:
