Combines a QTableView along with a QmitkPropertiesTableModel to a reusable Property Editor component. More...

#include <QmitkPropertiesTableEditor.h>

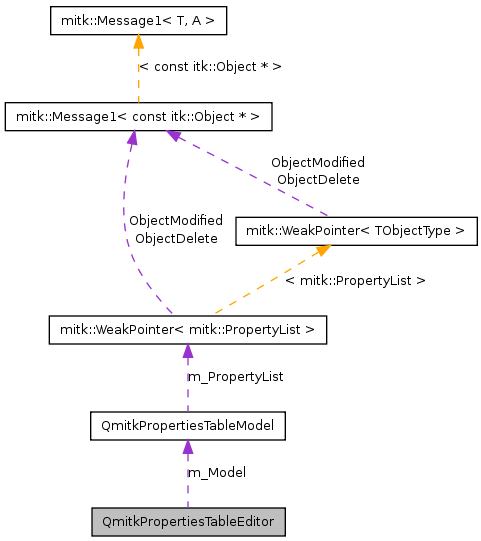

Collaboration diagram for QmitkPropertiesTableEditor:

Public Member Functions
	QmitkPropertiesTableEditor (QWidget *parent=0, Qt::WindowFlags f=0, mitk::DataNode::Pointer _Node=0)
virtual	~QmitkPropertiesTableEditor ()
void	SetPropertyList (mitk::PropertyList::Pointer _List)
QmitkPropertiesTableModel *	getModel () const
QTableView *	getTable () const
Protected Slots
void	PropertyFilterKeyWordTextChanged (const QString &text)
Protected Member Functions
virtual void	init ()
Protected Attributes
QTableView *	m_NodePropertiesTableView
QLineEdit *	m_TxtPropertyFilterKeyWord
QmitkPropertiesTableModel *	m_Model

Detailed Description

Combines a QTableView along with a QmitkPropertiesTableModel to a reusable Property Editor component.

See also:: QmitkPropertyDelegate

Definition at line 38 of file QmitkPropertiesTableEditor.h.

Constructor & Destructor Documentation

QmitkPropertiesTableEditor::QmitkPropertiesTableEditor	(	QWidget *	parent = `0`,
		Qt::WindowFlags	f = `0`,
		mitk::DataNode::Pointer	_Node = `0`
	)

Constructs a new QmitkDataStorageTableModel and sets the DataNode for this TableModel.

Definition at line 36 of file QmitkPropertiesTableEditor.cpp.

References init(), m_Model, and m_NodePropertiesTableView.

: QWidget(parent, f)
, m_NodePropertiesTableView(0)
, m_Model(0)
{
  // set up empty gui elements
  this->init();

  // set up model
  m_Model = new QmitkPropertiesTableModel(m_NodePropertiesTableView, 0);
  m_NodePropertiesTableView->setModel(m_Model);
}

QmitkPropertiesTableEditor::~QmitkPropertiesTableEditor ( ) [virtual]

Standard dtor. Nothing to do here.

Definition at line 50 of file QmitkPropertiesTableEditor.cpp.

{
}

Member Function Documentation

QmitkPropertiesTableModel * QmitkPropertiesTableEditor::getModel ( ) const

Get the model.

Definition at line 108 of file QmitkPropertiesTableEditor.cpp.

References m_Model.

{
  return m_Model;
}

QTableView * QmitkPropertiesTableEditor::getTable ( ) const

Definition at line 156 of file QmitkPropertiesTableEditor.cpp.

References m_NodePropertiesTableView.

{
  return m_NodePropertiesTableView;
}

void QmitkPropertiesTableEditor::init ( ) [protected, virtual]

Initialise empty GUI.

Definition at line 113 of file QmitkPropertiesTableEditor.cpp.

References m_NodePropertiesTableView, m_TxtPropertyFilterKeyWord, and PropertyFilterKeyWordTextChanged().

Referenced by QmitkPropertiesTableEditor().

{
  // read/ dim
  QVBoxLayout* _NodePropertiesLayout = new QVBoxLayout;
  QWidget* _PropertyFilterKeyWordPane = new QWidget(QWidget::parentWidget());
  QHBoxLayout* _PropertyFilterKeyWordLayout = new QHBoxLayout;
  QLabel* _LabelPropertyFilterKeyWord = new QLabel("Filter: ",_PropertyFilterKeyWordPane);
  m_TxtPropertyFilterKeyWord = new QLineEdit(_PropertyFilterKeyWordPane);
  m_NodePropertiesTableView = new QTableView(QWidget::parentWidget());

  // write
  setLayout(_NodePropertiesLayout);

  _PropertyFilterKeyWordPane->setLayout(_PropertyFilterKeyWordLayout);

  _PropertyFilterKeyWordLayout->setMargin(0);
  _PropertyFilterKeyWordLayout->addWidget(_LabelPropertyFilterKeyWord);
  _PropertyFilterKeyWordLayout->addWidget(m_TxtPropertyFilterKeyWord);

  _NodePropertiesLayout->setMargin(0);
  _NodePropertiesLayout->addWidget(_PropertyFilterKeyWordPane);
  _NodePropertiesLayout->addWidget(m_NodePropertiesTableView);

  m_NodePropertiesTableView->setSelectionMode( QAbstractItemView::SingleSelection );
  m_NodePropertiesTableView->setSelectionBehavior( QAbstractItemView::SelectItems );
  //m_NodePropertiesTableView->setEditTriggers(QAbstractItemView::DoubleClicked | QAbstractItemView::SelectedClicked | QAbstractItemView::EditKeyPressed);
  m_NodePropertiesTableView->verticalHeader()->hide();
  m_NodePropertiesTableView->setItemDelegate(new QmitkPropertyDelegate(this));
  m_NodePropertiesTableView->setAlternatingRowColors(true);
  //m_NodePropertiesTableView->horizontalHeader()->setStretchLastSection(true);
  m_NodePropertiesTableView->setSortingEnabled(true);
  m_NodePropertiesTableView->verticalHeader()->setResizeMode(QHeaderView::ResizeToContents);

  QObject::connect( m_TxtPropertyFilterKeyWord, SIGNAL( textChanged(const QString &) )
    , this, SLOT( PropertyFilterKeyWordTextChanged(const QString &) ) );

}

void QmitkPropertiesTableEditor::PropertyFilterKeyWordTextChanged ( const QString & text ) [protected, slot]

Definition at line 151 of file QmitkPropertiesTableEditor.cpp.

References m_Model, m_TxtPropertyFilterKeyWord, and QmitkPropertiesTableModel::SetFilterPropertiesKeyWord().

Referenced by init().

{
  m_Model->SetFilterPropertiesKeyWord(m_TxtPropertyFilterKeyWord->text().toStdString());
}

void QmitkPropertiesTableEditor::SetPropertyList ( mitk::PropertyList::Pointer _List )

Convenience method. Sets the property list in the model.

Definition at line 54 of file QmitkPropertiesTableEditor.cpp.

References m_Model, m_NodePropertiesTableView, and QmitkPropertiesTableModel::SetPropertyList().

Referenced by QmitkPropertyListView::OnSelectionChanged().

{
  if(_List.IsNotNull())
  {
    m_Model->SetPropertyList(_List);
    m_NodePropertiesTableView->resizeColumnsToContents();
    m_NodePropertiesTableView->resizeRowsToContents();
    m_NodePropertiesTableView->horizontalHeader()->setStretchLastSection(true);
    m_NodePropertiesTableView->setEditTriggers(QAbstractItemView::CurrentChanged);

/*
    // refill the combo boxes
    m_ComboRenderer->clear();

    for(mitk::BaseRenderer::BaseRendererMapType::iterator mapit = mitk::BaseRenderer::baseRendererMap.begin();
      mapit != mitk::BaseRenderer::baseRendererMap.end(); mapit++)
    {
      if((*mapit).second->GetName())
      {
        std::string winName((*mapit).second->GetName());
        //  winName.erase(0,winName.find("::")+2);
        m_ComboRenderer->insertItem(winName.c_str());
      }
    }

    // try to select focused RenderWindow
    vtkRenderWindow* focusedRenderWindow = NULL;

    mitk::FocusManager* fm =
      mitk::GlobalInteraction::GetInstance()->GetFocusManager();
    mitk::BaseRenderer::ConstPointer br = fm->GetFocused();
    if (br.IsNotNull())
    {
      focusedRenderWindow = br->GetRenderWindow();
    }

    if (focusedRenderWindow)
    {

      m_ComboRenderer->setCurrentText(mitk::BaseRenderer::GetInstance(focusedRenderWindow)->GetName());
    }
    else
    {
      m_ComboRenderer->setCurrentText("no focused window");
    }
*/

  }
  else
  {
    m_Model->SetPropertyList(0);
  }
}
