QmitkMorphologicToolGUI Class Reference

#include <QmitkMorphologicToolGUI.h>

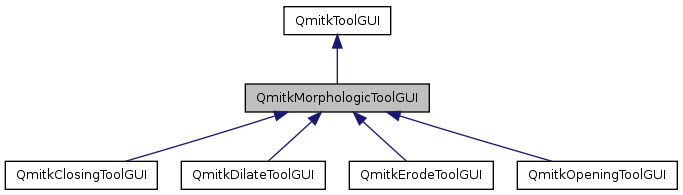

Inheritance diagram for QmitkMorphologicToolGUI:

Collaboration diagram for QmitkMorphologicToolGUI:

List of all members.

Public Types
typedef QmitkMorphologicToolGUI	Self
typedef QmitkToolGUI	Superclass
typedef itk::SmartPointer< Self >	Pointer
typedef itk::SmartPointer < const Self >	ConstPointer
Public Member Functions
virtual const char *	GetClassName () const
Static Public Member Functions
static Pointer	New ()
Protected Slots
void	OnNewToolAssociated (mitk::Tool *)
void	OnSliderValueChanged (int value)
void	OnSpinBoxValueChanged (int value)
void	OnCheckStateChanged (int state)
void	OnAcceptPreview ()
Protected Member Functions
virtual	~QmitkMorphologicToolGUI ()
	QmitkMorphologicToolGUI ()
Protected Attributes
mitk::MorphologicTool::Pointer	m_MorphologicTool
QSlider *	m_Slider
QSpinBox *	m_SpinBox
QCheckBox *	m_CheckBox

---

Detailed Description

Definition at line 11 of file QmitkMorphologicToolGUI.h.

---

Member Typedef Documentation

typedef itk::SmartPointer<const Self> QmitkMorphologicToolGUI::ConstPointer

Reimplemented from QmitkToolGUI.

Reimplemented in QmitkClosingToolGUI, QmitkDilateToolGUI, QmitkErodeToolGUI, and QmitkOpeningToolGUI.

Definition at line 16 of file QmitkMorphologicToolGUI.h.

typedef itk::SmartPointer<Self> QmitkMorphologicToolGUI::Pointer

Reimplemented from QmitkToolGUI.

Reimplemented in QmitkClosingToolGUI, QmitkDilateToolGUI, QmitkErodeToolGUI, and QmitkOpeningToolGUI.

Definition at line 16 of file QmitkMorphologicToolGUI.h.

typedef QmitkMorphologicToolGUI QmitkMorphologicToolGUI::Self

Reimplemented from QmitkToolGUI.

Reimplemented in QmitkClosingToolGUI, QmitkDilateToolGUI, QmitkErodeToolGUI, and QmitkOpeningToolGUI.

Definition at line 16 of file QmitkMorphologicToolGUI.h.

typedef QmitkToolGUI QmitkMorphologicToolGUI::Superclass

Reimplemented from QmitkToolGUI.

Reimplemented in QmitkClosingToolGUI, QmitkDilateToolGUI, QmitkErodeToolGUI, and QmitkOpeningToolGUI.

Definition at line 16 of file QmitkMorphologicToolGUI.h.

---

Constructor & Destructor Documentation

QmitkMorphologicToolGUI::~QmitkMorphologicToolGUI

(

)

[protected, virtual]

Definition at line 65 of file QmitkMorphologicToolGUI.cpp.

{

}

QmitkMorphologicToolGUI::QmitkMorphologicToolGUI

(

)

[protected]

Definition at line 11 of file QmitkMorphologicToolGUI.cpp.

                                                : QmitkToolGUI(),
m_Slider(NULL)
{
  QBoxLayout* mainLayout = new QVBoxLayout(this);

  QBoxLayout* layout1 = new QHBoxLayout();
  QBoxLayout* layout2 = new QHBoxLayout();

  QLabel* label = new QLabel( "radius:", this );
  QFont f = label->font();
  f.setBold(false);
  label->setFont( f );
  layout1->addWidget(label);

  m_Slider = new QSlider(Qt::Horizontal, this );
  m_Slider->setMaximum(15);
  m_Slider->setMinimum(0);
  m_Slider->setPageStep(1);
  connect( m_Slider, SIGNAL(valueChanged(int)), this, SLOT(OnSliderValueChanged(int)));
  m_Slider->setValue( 0 );
  layout1->addWidget( m_Slider );

  m_SpinBox = new QSpinBox(this);
  m_SpinBox->setSuffix(tr(" pixel"));
  m_SpinBox->setMaximum(15);
  m_SpinBox->setMinimum(0);
  m_SpinBox->setSingleStep(1);
  connect(m_SpinBox, SIGNAL(valueChanged(int)), this, SLOT(OnSpinBoxValueChanged(int)) );
  m_SpinBox->setValue(0);
  layout1->addWidget(m_SpinBox);

  mainLayout->addLayout(layout1);

  QButtonGroup* group = new QButtonGroup(this);
  QRadioButton* crossRadioButton = new QRadioButton();
  QRadioButton* ballRadioButton = new QRadioButton();
  group->addButton(crossRadioButton);
  group->addButton(ballRadioButton);

  m_CheckBox = new QCheckBox("Preview" ,this);
  m_CheckBox->setCheckState(Qt::CheckState::Checked);
  connect(m_CheckBox, SIGNAL(stateChanged(int)), this, SLOT(OnCheckStateChanged(int)) );

  layout2->addWidget(m_CheckBox);

  QPushButton* okButton = new QPushButton("OK", this);
  connect(okButton, SIGNAL(clicked()), this, SLOT(OnAcceptPreview()) );
  layout2->addWidget(okButton);

  mainLayout->addLayout(layout2);

   connect( this, SIGNAL(NewToolAssociated(mitk::Tool*)), this, SLOT(OnNewToolAssociated(mitk::Tool*)) );
}

---

Member Function Documentation

virtual const char* QmitkMorphologicToolGUI::GetClassName

(

)

const [virtual]

Reimplemented from QmitkToolGUI.

Reimplemented in QmitkClosingToolGUI, QmitkDilateToolGUI, QmitkErodeToolGUI, and QmitkOpeningToolGUI.

static Pointer QmitkMorphologicToolGUI::New

(

)

[static]

Reimplemented in QmitkClosingToolGUI, QmitkDilateToolGUI, QmitkErodeToolGUI, and QmitkOpeningToolGUI.

void QmitkMorphologicToolGUI::OnAcceptPreview

(

)

[protected, slot]

Definition at line 93 of file QmitkMorphologicToolGUI.cpp.

References QmitkNewSegmentationDialog::GetColor(), QmitkNewSegmentationDialog::GetSegmentationName(), m_MorphologicTool, and QmitkNewSegmentationDialog::setPrompt().

{
  if (m_MorphologicTool.IsNotNull())
  {
    QmitkNewSegmentationDialog* dialog = new QmitkNewSegmentationDialog( this );
    dialog->setPrompt("What did you just segment?");
    int dialogReturnValue = dialog->exec();

    std::string name = dialog->GetSegmentationName().toLocal8Bit().data();
    mitk::Color color     = dialog->GetColor();

    delete dialog;

    if ( dialogReturnValue != QDialog::Rejected )
    {
      m_MorphologicTool->AcceptPreview( name, color );
    }
    else
    {
      m_MorphologicTool->CancelPreviewing();
    }
  }
}

void QmitkMorphologicToolGUI::OnCheckStateChanged

(

int

state )

[protected, slot]

Definition at line 82 of file QmitkMorphologicToolGUI.cpp.

References m_MorphologicTool.

{
  if (m_MorphologicTool.IsNotNull())
    m_MorphologicTool->SetPreview(state);
}

void QmitkMorphologicToolGUI::OnNewToolAssociated

(

mitk::Tool *

tool )

[protected, slot]

Definition at line 88 of file QmitkMorphologicToolGUI.cpp.

References m_MorphologicTool.

{
  m_MorphologicTool = dynamic_cast<mitk::MorphologicTool*>( tool );
}

void QmitkMorphologicToolGUI::OnSliderValueChanged

(

int

value )

[protected, slot]

Definition at line 70 of file QmitkMorphologicToolGUI.cpp.

References m_MorphologicTool, and m_SpinBox.

{
  m_SpinBox->setValue(value);
  if (m_MorphologicTool.IsNotNull())
    m_MorphologicTool->SetRadius(value);
}

void QmitkMorphologicToolGUI::OnSpinBoxValueChanged

(

int

value )

[protected, slot]

Definition at line 77 of file QmitkMorphologicToolGUI.cpp.

References m_Slider.

{
  m_Slider->setValue(value);
}

---

Member Data Documentation

QCheckBox* QmitkMorphologicToolGUI::m_CheckBox [protected]

Definition at line 35 of file QmitkMorphologicToolGUI.h.

mitk::MorphologicTool::Pointer QmitkMorphologicToolGUI::m_MorphologicTool [protected]

Definition at line 32 of file QmitkMorphologicToolGUI.h.

Referenced by OnAcceptPreview(), OnCheckStateChanged(), OnNewToolAssociated(), and OnSliderValueChanged().

QSlider* QmitkMorphologicToolGUI::m_Slider [protected]

Definition at line 33 of file QmitkMorphologicToolGUI.h.

Referenced by OnSpinBoxValueChanged().

QSpinBox* QmitkMorphologicToolGUI::m_SpinBox [protected]

Definition at line 34 of file QmitkMorphologicToolGUI.h.

Referenced by OnSliderValueChanged().

---

The documentation for this class was generated from the following files:

• QmitkMorphologicToolGUI.h
• QmitkMorphologicToolGUI.cpp
