QmitkKullbackLeiblerCompareHistogramMetricView Class Reference

Widget for rigid registration. More...

#include <QmitkKullbackLeiblerCompareHistogramMetricView.h>

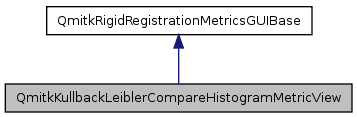

Inheritance diagram for QmitkKullbackLeiblerCompareHistogramMetricView:

Collaboration diagram for QmitkKullbackLeiblerCompareHistogramMetricView:

List of all members.

Public Member Functions
	QmitkKullbackLeiblerCompareHistogramMetricView (QWidget *parent=0, Qt::WindowFlags f=0)
	~QmitkKullbackLeiblerCompareHistogramMetricView ()
virtual itk::Object::Pointer	GetMetric ()
virtual itk::Array< double >	GetMetricParameters ()
virtual void	SetMetricParameters (itk::Array< double > metricValues)
virtual QString	GetName ()
virtual void	SetupUI (QWidget *parent)
Protected Attributes
Ui::QmitkKullbackLeiblerCompareHistogramMetricControls	m_Controls
itk::Object::Pointer	m_MetricObject

---

Detailed Description

Widget for rigid registration.

Displays options for rigid registration.

Definition at line 33 of file QmitkKullbackLeiblerCompareHistogramMetricView.h.

---

Constructor & Destructor Documentation

QmitkKullbackLeiblerCompareHistogramMetricView::QmitkKullbackLeiblerCompareHistogramMetricView	(	QWidget *	parent = 0,
		Qt::WindowFlags	f = 0
	)

Definition at line 24 of file QmitkKullbackLeiblerCompareHistogramMetricView.cpp.

                                                                                                                                : QmitkRigidRegistrationMetricsGUIBase (parent, f)
{
}

QmitkKullbackLeiblerCompareHistogramMetricView::~QmitkKullbackLeiblerCompareHistogramMetricView

(

)

Definition at line 28 of file QmitkKullbackLeiblerCompareHistogramMetricView.cpp.

{
}

---

Member Function Documentation

itk::Object::Pointer QmitkKullbackLeiblerCompareHistogramMetricView::GetMetric

(

)

[virtual]

Implements QmitkRigidRegistrationMetricsGUIBase.

Definition at line 32 of file QmitkKullbackLeiblerCompareHistogramMetricView.cpp.

References AccessByItk, m_MetricObject, and QmitkRigidRegistrationMetricsGUIBase::m_MovingImage.

{
  if (m_MovingImage.IsNotNull())
  {
    AccessByItk(m_MovingImage, GetMetric2);
    return m_MetricObject;
  }
  return NULL;
}

itk::Array< double > QmitkKullbackLeiblerCompareHistogramMetricView::GetMetricParameters

(

)

[virtual]

Implements QmitkRigidRegistrationMetricsGUIBase.

Definition at line 58 of file QmitkKullbackLeiblerCompareHistogramMetricView.cpp.

References Ui_QmitkKullbackLeiblerCompareHistogramMetricControls::m_ComputeGradient, m_Controls, and Ui_QmitkKullbackLeiblerCompareHistogramMetricControls::m_NumberOfHistogramBinsKullbackLeiblerCompareHistogram.

{
  itk::Array<double> metricValues;
  metricValues.SetSize(2);
  metricValues.fill(0);
  metricValues[0] = m_Controls.m_ComputeGradient->isChecked();
  metricValues[1] = m_Controls.m_NumberOfHistogramBinsKullbackLeiblerCompareHistogram->text().toInt();
  return metricValues;
}

QString QmitkKullbackLeiblerCompareHistogramMetricView::GetName

(

)

[virtual]

Implements QmitkRigidRegistrationMetricsGUIBase.

Definition at line 74 of file QmitkKullbackLeiblerCompareHistogramMetricView.cpp.

{
  return "KullbackLeiblerCompareHistogram";
}

void QmitkKullbackLeiblerCompareHistogramMetricView::SetMetricParameters

(

itk::Array< double >

metricValues )

[virtual]

Implements QmitkRigidRegistrationMetricsGUIBase.

Definition at line 68 of file QmitkKullbackLeiblerCompareHistogramMetricView.cpp.

References Ui_QmitkKullbackLeiblerCompareHistogramMetricControls::m_ComputeGradient, m_Controls, and Ui_QmitkKullbackLeiblerCompareHistogramMetricControls::m_NumberOfHistogramBinsKullbackLeiblerCompareHistogram.

{
  m_Controls.m_ComputeGradient->setChecked(metricValues[0]);
  m_Controls.m_NumberOfHistogramBinsKullbackLeiblerCompareHistogram->setText(QString::number(metricValues[1]));
}

void QmitkKullbackLeiblerCompareHistogramMetricView::SetupUI

(

QWidget *

parent )

[virtual]

Implements QmitkRigidRegistrationMetricsGUIBase.

Definition at line 79 of file QmitkKullbackLeiblerCompareHistogramMetricView.cpp.

References m_Controls, Ui_QmitkKullbackLeiblerCompareHistogramMetricControls::m_NumberOfHistogramBinsKullbackLeiblerCompareHistogram, and Ui_QmitkKullbackLeiblerCompareHistogramMetricControls::setupUi().

{
  m_Controls.setupUi(parent);
  QValidator* validatorLineEditInput = new QIntValidator(0, 20000000, this);
  m_Controls.m_NumberOfHistogramBinsKullbackLeiblerCompareHistogram->setValidator(validatorLineEditInput);
}

---

Member Data Documentation

Ui::QmitkKullbackLeiblerCompareHistogramMetricControls QmitkKullbackLeiblerCompareHistogramMetricView::m_Controls [protected]

Definition at line 59 of file QmitkKullbackLeiblerCompareHistogramMetricView.h.

Referenced by GetMetricParameters(), SetMetricParameters(), and SetupUI().

itk::Object::Pointer QmitkKullbackLeiblerCompareHistogramMetricView::m_MetricObject [protected]

Definition at line 61 of file QmitkKullbackLeiblerCompareHistogramMetricView.h.

Referenced by GetMetric().

---

The documentation for this class was generated from the following files:

• QmitkKullbackLeiblerCompareHistogramMetricView.h
• QmitkKullbackLeiblerCompareHistogramMetricView.cpp
