QmitkKappaStatisticMetricView Class Reference

Widget for rigid registration. More...

#include <QmitkKappaStatisticMetricView.h>

Inheritance diagram for QmitkKappaStatisticMetricView:

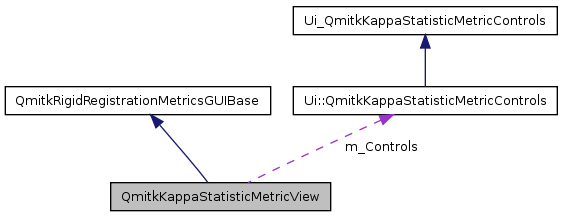

Collaboration diagram for QmitkKappaStatisticMetricView:

List of all members.

Public Member Functions
	QmitkKappaStatisticMetricView (QWidget *parent=0, Qt::WindowFlags f=0)
	~QmitkKappaStatisticMetricView ()
virtual itk::Object::Pointer	GetMetric ()
virtual itk::Array< double >	GetMetricParameters ()
virtual void	SetMetricParameters (itk::Array< double > metricValues)
virtual QString	GetName ()
virtual void	SetupUI (QWidget *parent)
Protected Attributes
Ui::QmitkKappaStatisticMetricControls	m_Controls
itk::Object::Pointer	m_MetricObject

---

Detailed Description

Widget for rigid registration.

Displays options for rigid registration.

Definition at line 33 of file QmitkKappaStatisticMetricView.h.

---

Constructor & Destructor Documentation

QmitkKappaStatisticMetricView::QmitkKappaStatisticMetricView	(	QWidget *	parent = 0,
		Qt::WindowFlags	f = 0
	)

Definition at line 22 of file QmitkKappaStatisticMetricView.cpp.

                                                                                              : QmitkRigidRegistrationMetricsGUIBase (parent, f)
{

}

QmitkKappaStatisticMetricView::~QmitkKappaStatisticMetricView

(

)

Definition at line 27 of file QmitkKappaStatisticMetricView.cpp.

{
}

---

Member Function Documentation

itk::Object::Pointer QmitkKappaStatisticMetricView::GetMetric

(

)

[virtual]

Implements QmitkRigidRegistrationMetricsGUIBase.

Definition at line 31 of file QmitkKappaStatisticMetricView.cpp.

References AccessByItk, m_MetricObject, and QmitkRigidRegistrationMetricsGUIBase::m_MovingImage.

{
  if (m_MovingImage.IsNotNull())
  {
    AccessByItk(m_MovingImage, GetMetric2);
    return m_MetricObject;
  }
  return NULL;
}

itk::Array< double > QmitkKappaStatisticMetricView::GetMetricParameters

(

)

[virtual]

Implements QmitkRigidRegistrationMetricsGUIBase.

Definition at line 52 of file QmitkKappaStatisticMetricView.cpp.

References Ui_QmitkKappaStatisticMetricControls::m_ComputeGradient, and m_Controls.

{
  itk::Array<double> metricValues;
  metricValues.SetSize(1);
  metricValues.fill(0);
  metricValues[0] = m_Controls.m_ComputeGradient->isChecked();
  return metricValues;
}

QString QmitkKappaStatisticMetricView::GetName

(

)

[virtual]

Implements QmitkRigidRegistrationMetricsGUIBase.

Definition at line 66 of file QmitkKappaStatisticMetricView.cpp.

{
  return "KappaStatistic";
}

void QmitkKappaStatisticMetricView::SetMetricParameters

(

itk::Array< double >

metricValues )

[virtual]

Implements QmitkRigidRegistrationMetricsGUIBase.

Definition at line 61 of file QmitkKappaStatisticMetricView.cpp.

References Ui_QmitkKappaStatisticMetricControls::m_ComputeGradient, and m_Controls.

{
  m_Controls.m_ComputeGradient->setChecked(metricValues[0]);
}

void QmitkKappaStatisticMetricView::SetupUI

(

QWidget *

parent )

[virtual]

Implements QmitkRigidRegistrationMetricsGUIBase.

Definition at line 71 of file QmitkKappaStatisticMetricView.cpp.

References m_Controls, and Ui_QmitkKappaStatisticMetricControls::setupUi().

{
  m_Controls.setupUi(parent);
}

---

Member Data Documentation

Ui::QmitkKappaStatisticMetricControls QmitkKappaStatisticMetricView::m_Controls [protected]

Definition at line 59 of file QmitkKappaStatisticMetricView.h.

Referenced by GetMetricParameters(), SetMetricParameters(), and SetupUI().

itk::Object::Pointer QmitkKappaStatisticMetricView::m_MetricObject [protected]

Definition at line 61 of file QmitkKappaStatisticMetricView.h.

Referenced by GetMetric().

---

The documentation for this class was generated from the following files:

• QmitkKappaStatisticMetricView.h
• QmitkKappaStatisticMetricView.cpp
