QmitkFunctionalityCoordinator Class Reference

#include <QmitkFunctionalityCoordinator.h>

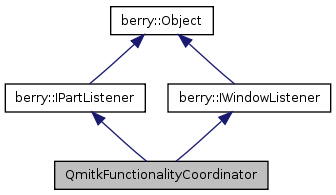

Inheritance diagram for QmitkFunctionalityCoordinator:
Inheritance graph
[legend]

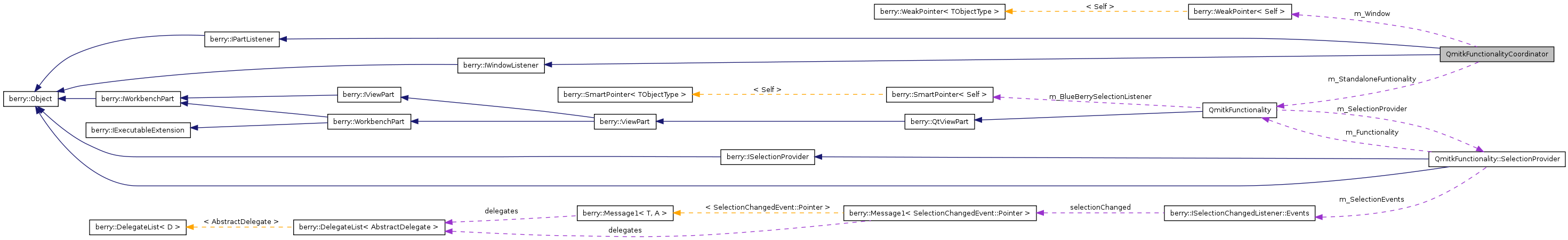

Collaboration diagram for QmitkFunctionalityCoordinator:
Collaboration graph
[legend]

List of all members.

Public Member Functions

 berryObjectMacro (QmitkFunctionalityCoordinator)
 berryNewMacro (QmitkFunctionalityCoordinator)
 QmitkFunctionalityCoordinator ()
virtual ~QmitkFunctionalityCoordinator ()
void SetWindow (berry::IWorkbenchWindow::Pointer window)
berry::IPartListener::Events::Types GetPartEventTypes () const
virtual void PartActivated (berry::IWorkbenchPartReference::Pointer partRef)
virtual void PartDeactivated (berry::IWorkbenchPartReference::Pointer)
virtual void PartOpened (berry::IWorkbenchPartReference::Pointer partRef)
virtual void PartClosed (berry::IWorkbenchPartReference::Pointer partRef)
virtual void PartHidden (berry::IWorkbenchPartReference::Pointer partRef)
virtual void PartVisible (berry::IWorkbenchPartReference::Pointer partRef)
virtual void WindowClosed (berry::IWorkbenchWindow::Pointer window)
virtual void WindowOpened (berry::IWorkbenchWindow::Pointer)

Protected Member Functions

void ActivateStandaloneFunctionality (QmitkFunctionality *functionality)
void DeactivateStandaloneFunctionality (QmitkFunctionality *functionality)

Protected Attributes

berry::IWorkbenchWindow::WeakPtr m_Window
QmitkFunctionality * m_StandaloneFuntionality
std::set< QmitkFunctionality * > m_Functionalities
std::set< QmitkFunctionality * > m_VisibleStandaloneFunctionalities

Detailed Description

A class which coordinates active QmitkFunctionalities, e.g. calling activated and hidden on them.

Definition at line 32 of file QmitkFunctionalityCoordinator.h.

Constructor & Destructor Documentation

QmitkFunctionalityCoordinator::QmitkFunctionalityCoordinator (  )

Add listener

Definition at line 24 of file QmitkFunctionalityCoordinator.cpp.

: m_StandaloneFuntionality(NULL)
{
}
QmitkFunctionalityCoordinator::~QmitkFunctionalityCoordinator (  ) [virtual]

Remove listener

Definition at line 39 of file QmitkFunctionalityCoordinator.cpp.

{
}

Member Function Documentation

void QmitkFunctionalityCoordinator::ActivateStandaloneFunctionality ( QmitkFunctionality *  functionality ) [protected]

Activates the standalone functionality

Definition at line 157 of file QmitkFunctionalityCoordinator.cpp.

References QmitkFunctionality::Activated(), DeactivateStandaloneFunctionality(), QmitkFunctionality::IsActivated(), QmitkFunctionality::IsExclusiveFunctionality(), m_StandaloneFuntionality, and QmitkFunctionality::SetActivated().

Referenced by PartActivated(), PartHidden(), and PartVisible().

{
  if(functionality && !functionality->IsActivated() && functionality->IsExclusiveFunctionality())
  {
    // deactivate old one if necessary
    this->DeactivateStandaloneFunctionality(m_StandaloneFuntionality);
    m_StandaloneFuntionality = functionality;

    // call activated on this functionality
    m_StandaloneFuntionality->SetActivated(true);
    m_StandaloneFuntionality->Activated();
  }
}
QmitkFunctionalityCoordinator::berryNewMacro ( QmitkFunctionalityCoordinator   )
QmitkFunctionalityCoordinator::berryObjectMacro ( QmitkFunctionalityCoordinator   )
void QmitkFunctionalityCoordinator::DeactivateStandaloneFunctionality ( QmitkFunctionality *  functionality ) [protected]

Deactivates the standalone functionality

Definition at line 171 of file QmitkFunctionalityCoordinator.cpp.

References QmitkFunctionality::Deactivated(), QmitkFunctionality::IsActivated(), and QmitkFunctionality::SetActivated().

Referenced by ActivateStandaloneFunctionality(), PartClosed(), and PartHidden().

{
  if(functionality && functionality->IsActivated())
  {
    functionality->SetActivated(false);
    functionality->Deactivated();
  }
}
berry::IPartListener::Events::Types QmitkFunctionalityCoordinator::GetPartEventTypes (  ) const [virtual]
See also:
IPartListener::GetPartEventTypes()

Implements berry::IPartListener.

Definition at line 43 of file QmitkFunctionalityCoordinator.cpp.

References berry::IPartListener::Events::ACTIVATED, berry::IPartListener::Events::CLOSED, berry::IPartListener::Events::DEACTIVATED, berry::IPartListener::Events::HIDDEN, berry::IPartListener::Events::OPENED, and berry::IPartListener::Events::VISIBLE.

{
  return berry::IPartListener::Events::ACTIVATED | berry::IPartListener::Events::DEACTIVATED
    | berry::IPartListener::Events::CLOSED | berry::IPartListener::Events::HIDDEN
    | berry::IPartListener::Events::VISIBLE | berry::IPartListener::Events::OPENED;
}
void QmitkFunctionalityCoordinator::PartActivated ( berry::IWorkbenchPartReference::Pointer  partRef ) [virtual]
See also:
IPartListener::PartActivated()

Reimplemented from berry::IPartListener.

Definition at line 50 of file QmitkFunctionalityCoordinator.cpp.

References ActivateStandaloneFunctionality(), berry::SmartPointer< TObjectType >::Cast(), and berry::SmartPointer< TObjectType >::GetPointer().

{
  // Check for QmitkFunctionality
  QmitkFunctionality::Pointer _QmitkFunctionality = partRef->GetPart(false).Cast<QmitkFunctionality>();
  // change the active standalone functionality
  this->ActivateStandaloneFunctionality(_QmitkFunctionality.GetPointer());
}
void QmitkFunctionalityCoordinator::PartClosed ( berry::IWorkbenchPartReference::Pointer  partRef ) [virtual]
See also:
IPartListener::PartClosed()

Reimplemented from berry::IPartListener.

Definition at line 86 of file QmitkFunctionalityCoordinator.cpp.

References berry::SmartPointer< TObjectType >::Cast(), DeactivateStandaloneFunctionality(), QmitkStdMultiWidgetEditor::EDITOR_ID, berry::SmartPointer< TObjectType >::GetPointer(), berry::SmartPointer< TObjectType >::IsNotNull(), m_Functionalities, and m_StandaloneFuntionality.

{
  // check for multiwidget and inform views that it not available any more
  if ( partRef->GetId() == QmitkStdMultiWidgetEditor::EDITOR_ID )
  {

    QmitkStdMultiWidgetEditor::Pointer stdMultiWidgetEditor = partRef->GetPart(false).Cast<QmitkStdMultiWidgetEditor>();
    for (std::set<QmitkFunctionality*>::iterator it = m_Functionalities.begin()
      ; it != m_Functionalities.end(); it++)
    {
      (*it)->StdMultiWidgetClosed(*(stdMultiWidgetEditor->GetStdMultiWidget()));
      (*it)->StdMultiWidgetNotAvailable(); // deprecated call, provided for consistence
    }
  }
  else
  {
    // check for functionality
    QmitkFunctionality::Pointer _QmitkFunctionality = partRef->GetPart(false).Cast<QmitkFunctionality>();
    if(_QmitkFunctionality.IsNotNull())
    {
      // deactivate on close ( the standalone functionality may still be activated  )
      this->DeactivateStandaloneFunctionality(_QmitkFunctionality.GetPointer());

      // and set pointer to 0
      if(m_StandaloneFuntionality == _QmitkFunctionality.GetPointer())
        m_StandaloneFuntionality = 0;

      m_Functionalities.erase(_QmitkFunctionality.GetPointer()); // remove as opened functionality
      // call PartClosed on the QmitkFunctionality
      _QmitkFunctionality->ClosePartProxy();
      //m_VisibleStandaloneFunctionalities.erase(_QmitkFunctionality.GetPointer()); // remove if necessary (should be done before in PartHidden()
    }
  }
}
void QmitkFunctionalityCoordinator::PartDeactivated ( berry::IWorkbenchPartReference::Pointer   ) [virtual]
See also:
IPartListener::PartDeactivated()

Reimplemented from berry::IPartListener.

Definition at line 58 of file QmitkFunctionalityCoordinator.cpp.

{
  // nothing to do here: see PartActivated()
}
void QmitkFunctionalityCoordinator::PartHidden ( berry::IWorkbenchPartReference::Pointer  partRef ) [virtual]
See also:
IPartListener::PartHidden()

Reimplemented from berry::IPartListener.

Definition at line 121 of file QmitkFunctionalityCoordinator.cpp.

References ActivateStandaloneFunctionality(), berry::SmartPointer< TObjectType >::Cast(), DeactivateStandaloneFunctionality(), berry::SmartPointer< TObjectType >::GetPointer(), and m_VisibleStandaloneFunctionalities.

{
  // Check for QmitkFunctionality
  QmitkFunctionality::Pointer _QmitkFunctionality = partRef->GetPart(false).Cast<QmitkFunctionality>();
  if(_QmitkFunctionality != 0)
  {
    _QmitkFunctionality->SetVisible(false);
    _QmitkFunctionality->Hidden();
    // try to deactivate on hide (if is activated)
    this->DeactivateStandaloneFunctionality(_QmitkFunctionality.GetPointer());

    // tracking of Visible Standalone Functionalities
    m_VisibleStandaloneFunctionalities.erase(_QmitkFunctionality.GetPointer());
    // activate Functionality if just one Standalone Functionality is visible (old one gets deactivated)
    if(m_VisibleStandaloneFunctionalities.size() == 1)
      this->ActivateStandaloneFunctionality(_QmitkFunctionality.GetPointer());
  }
}
void QmitkFunctionalityCoordinator::PartOpened ( berry::IWorkbenchPartReference::Pointer  partRef ) [virtual]
See also:
IPartListener::PartOpened()

Reimplemented from berry::IPartListener.

Definition at line 63 of file QmitkFunctionalityCoordinator.cpp.

References berry::SmartPointer< TObjectType >::Cast(), QmitkStdMultiWidgetEditor::EDITOR_ID, berry::SmartPointer< TObjectType >::GetPointer(), berry::SmartPointer< TObjectType >::IsNotNull(), and m_Functionalities.

{
   // check for multiwidget and inform views that it is available now
  if ( partRef->GetId() == QmitkStdMultiWidgetEditor::EDITOR_ID )
  {
    for (std::set<QmitkFunctionality*>::iterator it = m_Functionalities.begin()
      ; it != m_Functionalities.end(); it++)
    {
      (*it)->StdMultiWidgetAvailable(*(partRef
        ->GetPart(false).Cast<QmitkStdMultiWidgetEditor>()->GetStdMultiWidget()));
    }
  }
  else
  {
    // Check for QmitkFunctionality
    QmitkFunctionality::Pointer _QmitkFunctionality = partRef->GetPart(false).Cast<QmitkFunctionality>();
    if(_QmitkFunctionality.IsNotNull())
    {
      m_Functionalities.insert(_QmitkFunctionality.GetPointer()); // save as opened functionality
    }
  }
}
void QmitkFunctionalityCoordinator::PartVisible ( berry::IWorkbenchPartReference::Pointer  partRef ) [virtual]
See also:
IPartListener::PartVisible()

Reimplemented from berry::IPartListener.

Definition at line 140 of file QmitkFunctionalityCoordinator.cpp.

References ActivateStandaloneFunctionality(), berry::SmartPointer< TObjectType >::Cast(), berry::SmartPointer< TObjectType >::GetPointer(), berry::SmartPointer< TObjectType >::IsNotNull(), and m_VisibleStandaloneFunctionalities.

{
  // Check for QmitkFunctionality
  QmitkFunctionality::Pointer _QmitkFunctionality = partRef->GetPart(false).Cast<QmitkFunctionality>();
  if(_QmitkFunctionality.IsNotNull())
  {
    _QmitkFunctionality->SetVisible(true);
    _QmitkFunctionality->Visible();

    // tracking of Visible Standalone Functionalities
    m_VisibleStandaloneFunctionalities.insert(_QmitkFunctionality.GetPointer());
    // activate Functionality if just one Standalone Functionality is visible
    if(m_VisibleStandaloneFunctionalities.size() == 1)
      this->ActivateStandaloneFunctionality(_QmitkFunctionality.GetPointer());
  }
}
void QmitkFunctionalityCoordinator::SetWindow ( berry::IWorkbenchWindow::Pointer  window )

Sets the window to attach the part listener

Definition at line 29 of file QmitkFunctionalityCoordinator.cpp.

References berry::SmartPointer< TObjectType >::IsNotNull(), and m_Window.

{
  m_Window = window;
  if(window.IsNotNull())
  {
    window->GetWorkbench()->AddWindowListener(berry::IWindowListener::Pointer(this));
    window->GetPartService()->AddPartListener(berry::IPartListener::Pointer(this));
  }
}
void QmitkFunctionalityCoordinator::WindowClosed ( berry::IWorkbenchWindow::Pointer  window ) [virtual]

Notifies this listener that the given window has been closed.

Reimplemented from berry::IWindowListener.

Definition at line 180 of file QmitkFunctionalityCoordinator.cpp.

References berry::SmartPointer< TObjectType >::IsNotNull().

{
  if(window.IsNotNull())
  {
    window->GetWorkbench()->RemoveWindowListener(berry::IWindowListener::Pointer(this));
    window->GetPartService()->RemovePartListener(berry::IPartListener::Pointer(this));
  }
}
void QmitkFunctionalityCoordinator::WindowOpened ( berry::IWorkbenchWindow::Pointer   ) [virtual]

Notifies this listener that the given window has been opened.

Reimplemented from berry::IWindowListener.

Definition at line 189 of file QmitkFunctionalityCoordinator.cpp.

{

}

Member Data Documentation

std::set<QmitkFunctionality*> QmitkFunctionalityCoordinator::m_Functionalities [protected]

Saves all opened QmitkFunctionalities

Definition at line 109 of file QmitkFunctionalityCoordinator.h.

Referenced by PartClosed(), and PartOpened().

QmitkFunctionality* QmitkFunctionalityCoordinator::m_StandaloneFuntionality [protected]

Saves the last QmitkFunctionality that added interactors

Definition at line 105 of file QmitkFunctionalityCoordinator.h.

Referenced by ActivateStandaloneFunctionality(), and PartClosed().

std::set<QmitkFunctionality*> QmitkFunctionalityCoordinator::m_VisibleStandaloneFunctionalities [protected]

Saves all visible QmitkFunctionalities

Definition at line 113 of file QmitkFunctionalityCoordinator.h.

Referenced by PartHidden(), and PartVisible().

berry::IWorkbenchWindow::WeakPtr QmitkFunctionalityCoordinator::m_Window [protected]

Saves the workbench window

Definition at line 101 of file QmitkFunctionalityCoordinator.h.

Referenced by SetWindow().

The documentation for this class was generated from the following files:
