Widget for rigid registration. More...

#include <QmitkEuler2DTransformView.h>

Inheritance diagram for QmitkEuler2DTransformView:

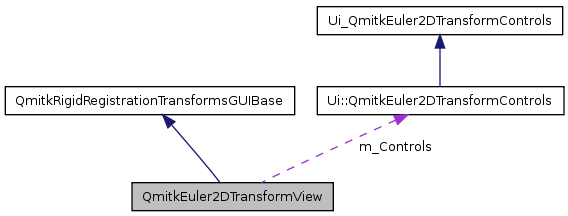

Collaboration diagram for QmitkEuler2DTransformView:

Public Member Functions
	QmitkEuler2DTransformView (QWidget *parent=0, Qt::WindowFlags f=0)
	~QmitkEuler2DTransformView ()
virtual itk::Object::Pointer	GetTransform ()
virtual itk::Array< double >	GetTransformParameters ()
virtual void	SetTransformParameters (itk::Array< double > transformValues)
virtual QString	GetName ()
virtual void	SetupUI (QWidget *parent)
virtual itk::Array< double >	GetScales ()
virtual vtkTransform *	Transform (vtkMatrix4x4 vtkmatrix, vtkTransform vtktransform, itk::Array< double > transformParams)
virtual int	GetNumberOfTransformParameters ()
Protected Attributes
Ui::QmitkEuler2DTransformControls	m_Controls
itk::Object::Pointer	m_TransformObject
double	m_CenterX
double	m_CenterY
double	m_CenterZ

Detailed Description

Widget for rigid registration.

Displays options for rigid registration.

Definition at line 31 of file QmitkEuler2DTransformView.h.

Constructor & Destructor Documentation

QmitkEuler2DTransformView::QmitkEuler2DTransformView	(	QWidget *	parent = `0`,
		Qt::WindowFlags	f = `0`
	)

Definition at line 24 of file QmitkEuler2DTransformView.cpp.

                                                                                      : QmitkRigidRegistrationTransformsGUIBase(parent, f),
m_CenterX(0), m_CenterY(0), m_CenterZ(0)
{
}

QmitkEuler2DTransformView::~QmitkEuler2DTransformView ( )

Definition at line 29 of file QmitkEuler2DTransformView.cpp.

{
}

Member Function Documentation

QString QmitkEuler2DTransformView::GetName ( ) [virtual]

Implements QmitkRigidRegistrationTransformsGUIBase.

Definition at line 105 of file QmitkEuler2DTransformView.cpp.

{
  return "Euler2D";
}

int QmitkEuler2DTransformView::GetNumberOfTransformParameters ( ) [virtual]

Implements QmitkRigidRegistrationTransformsGUIBase.

Definition at line 146 of file QmitkEuler2DTransformView.cpp.

References QmitkRigidRegistrationTransformsGUIBase::m_FixedImage.

{
  if (m_FixedImage.IsNotNull())
  {
    if (m_FixedImage->GetDimension() == 2)
      return 3;
    else
      return 0;
  }
  else
    return 0;
}

itk::Array< double > QmitkEuler2DTransformView::GetScales ( ) [virtual]

Implements QmitkRigidRegistrationTransformsGUIBase.

Definition at line 119 of file QmitkEuler2DTransformView.cpp.

References m_Controls, Ui_QmitkEuler2DTransformControls::m_RotationScaleEuler2D, Ui_QmitkEuler2DTransformControls::m_TranslationXScaleEuler2D, Ui_QmitkEuler2DTransformControls::m_TranslationYScaleEuler2D, and Ui_QmitkEuler2DTransformControls::m_UseOptimizerScalesEuler2D.

{
  itk::Array<double> scales;
  scales.SetSize(3);
  scales.Fill(1.0);
  if (m_Controls.m_UseOptimizerScalesEuler2D->isChecked())
  {
    scales[0] = m_Controls.m_RotationScaleEuler2D->text().toDouble();
    scales[1] = m_Controls.m_TranslationXScaleEuler2D->text().toDouble();
    scales[2] = m_Controls.m_TranslationYScaleEuler2D->text().toDouble();
  }
  return scales;
}

itk::Object::Pointer QmitkEuler2DTransformView::GetTransform ( ) [virtual]

Implements QmitkRigidRegistrationTransformsGUIBase.

Definition at line 33 of file QmitkEuler2DTransformView.cpp.

References AccessByItk, QmitkRigidRegistrationTransformsGUIBase::m_FixedImage, and m_TransformObject.

{
  if (m_FixedImage.IsNotNull())
  {
    AccessByItk(m_FixedImage, GetTransform2);
    return m_TransformObject;
  }
  return NULL;
}

itk::Array< double > QmitkEuler2DTransformView::GetTransformParameters ( ) [virtual]

Implements QmitkRigidRegistrationTransformsGUIBase.

Definition at line 80 of file QmitkEuler2DTransformView.cpp.

References Ui_QmitkEuler2DTransformControls::m_CenterForInitializerEuler2D, m_Controls, Ui_QmitkEuler2DTransformControls::m_MomentsEuler2D, Ui_QmitkEuler2DTransformControls::m_RotationScaleEuler2D, Ui_QmitkEuler2DTransformControls::m_TranslationXScaleEuler2D, Ui_QmitkEuler2DTransformControls::m_TranslationYScaleEuler2D, and Ui_QmitkEuler2DTransformControls::m_UseOptimizerScalesEuler2D.

{
  itk::Array<double> transformValues;
  transformValues.SetSize(6);
  transformValues.fill(0);
  transformValues[0] = m_Controls.m_UseOptimizerScalesEuler2D->isChecked();
  transformValues[1] = m_Controls.m_RotationScaleEuler2D->text().toDouble();
  transformValues[2] = m_Controls.m_TranslationXScaleEuler2D->text().toDouble();
  transformValues[3] = m_Controls.m_TranslationYScaleEuler2D->text().toDouble();
  transformValues[4] = m_Controls.m_CenterForInitializerEuler2D->isChecked();
  transformValues[5] = m_Controls.m_MomentsEuler2D->isChecked();
  return transformValues;
}

void QmitkEuler2DTransformView::SetTransformParameters ( itk::Array< double > transformValues ) [virtual]

Implements QmitkRigidRegistrationTransformsGUIBase.

Definition at line 94 of file QmitkEuler2DTransformView.cpp.

References Ui_QmitkEuler2DTransformControls::m_CenterForInitializerEuler2D, m_Controls, Ui_QmitkEuler2DTransformControls::m_GeometryEuler2D, Ui_QmitkEuler2DTransformControls::m_MomentsEuler2D, Ui_QmitkEuler2DTransformControls::m_RotationScaleEuler2D, Ui_QmitkEuler2DTransformControls::m_TranslationXScaleEuler2D, Ui_QmitkEuler2DTransformControls::m_TranslationYScaleEuler2D, and Ui_QmitkEuler2DTransformControls::m_UseOptimizerScalesEuler2D.

{
  m_Controls.m_UseOptimizerScalesEuler2D->setChecked(transformValues[0]);
  m_Controls.m_RotationScaleEuler2D->setText(QString::number(transformValues[1]));
  m_Controls.m_TranslationXScaleEuler2D->setText(QString::number(transformValues[2]));
  m_Controls.m_TranslationYScaleEuler2D->setText(QString::number(transformValues[3]));
  m_Controls.m_CenterForInitializerEuler2D->setChecked(transformValues[4]);
  m_Controls.m_MomentsEuler2D->setChecked(transformValues[5]);
  m_Controls.m_GeometryEuler2D->setChecked(!transformValues[5]);
}

void QmitkEuler2DTransformView::SetupUI ( QWidget * parent ) [virtual]

Implements QmitkRigidRegistrationTransformsGUIBase.

Definition at line 110 of file QmitkEuler2DTransformView.cpp.

References m_Controls, Ui_QmitkEuler2DTransformControls::m_RotationScaleEuler2D, Ui_QmitkEuler2DTransformControls::m_TranslationXScaleEuler2D, Ui_QmitkEuler2DTransformControls::m_TranslationYScaleEuler2D, and Ui_QmitkEuler2DTransformControls::setupUi().

{
  m_Controls.setupUi(parent);
  QValidator* validatorLineEditInputFloat = new QDoubleValidator(0, 20000000, 8, this);
  m_Controls.m_RotationScaleEuler2D->setValidator(validatorLineEditInputFloat);
  m_Controls.m_TranslationXScaleEuler2D->setValidator(validatorLineEditInputFloat);
  m_Controls.m_TranslationYScaleEuler2D->setValidator(validatorLineEditInputFloat);
}

vtkTransform * QmitkEuler2DTransformView::Transform	(	vtkMatrix4x4 *	vtkmatrix,
		vtkTransform *	vtktransform,
		itk::Array< double >	transformParams
	)		`[virtual]`

Implements QmitkRigidRegistrationTransformsGUIBase.

Definition at line 133 of file QmitkEuler2DTransformView.cpp.

References QmitkRigidRegistrationTransformsGUIBase::m_MovingImage.

{
  if (m_MovingImage.IsNotNull())
  {
    mitk::ScalarType angle = transformParams[0] * 45.0 / atan(1.0);
    vtktransform->PostMultiply();
    vtktransform->RotateZ(angle);
    vtktransform->Translate(transformParams[1], transformParams[2], 0);
    vtktransform->PreMultiply();
  }
  return vtktransform;
}
