Public Member Functions | Protected Attributes

QmitkCenteredRigid2DTransformView Class Reference

Widget for rigid registration. More...

#include <QmitkCenteredRigid2DTransformView.h>

Inheritance diagram for QmitkCenteredRigid2DTransformView:
Inheritance graph
[legend]

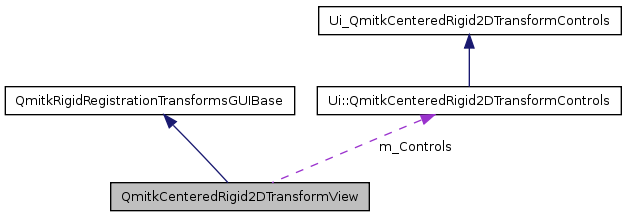

Collaboration diagram for QmitkCenteredRigid2DTransformView:
Collaboration graph
[legend]

List of all members.

Public Member Functions

 QmitkCenteredRigid2DTransformView (QWidget *parent=0, Qt::WindowFlags f=0)
 ~QmitkCenteredRigid2DTransformView ()
virtual itk::Object::Pointer GetTransform ()
virtual itk::Array< double > GetTransformParameters ()
virtual void SetTransformParameters (itk::Array< double > transformValues)
virtual QString GetName ()
virtual void SetupUI (QWidget *parent)
virtual itk::Array< double > GetScales ()
virtual vtkTransform * Transform (vtkMatrix4x4 *vtkmatrix, vtkTransform *vtktransform, itk::Array< double > transformParams)
virtual int GetNumberOfTransformParameters ()

Protected Attributes

Ui::QmitkCenteredRigid2DTransformControls m_Controls
itk::Object::Pointer m_TransformObject
double m_CenterX
double m_CenterY
double m_CenterZ

Detailed Description

Widget for rigid registration.

Displays options for rigid registration.

Definition at line 31 of file QmitkCenteredRigid2DTransformView.h.

Constructor & Destructor Documentation

QmitkCenteredRigid2DTransformView::QmitkCenteredRigid2DTransformView ( QWidget *  parent = 0,
Qt::WindowFlags  f = 0
)

Definition at line 24 of file QmitkCenteredRigid2DTransformView.cpp.

                                                                                                      : QmitkRigidRegistrationTransformsGUIBase(parent, f),
m_CenterX(0), m_CenterY(0), m_CenterZ(0)
{
}
QmitkCenteredRigid2DTransformView::~QmitkCenteredRigid2DTransformView (  )

Definition at line 29 of file QmitkCenteredRigid2DTransformView.cpp.

{
}

Member Function Documentation

QString QmitkCenteredRigid2DTransformView::GetName (  ) [virtual]

Implements QmitkRigidRegistrationTransformsGUIBase.

Definition at line 114 of file QmitkCenteredRigid2DTransformView.cpp.

{
  return "CenteredRigid2D";
}
int QmitkCenteredRigid2DTransformView::GetNumberOfTransformParameters (  ) [virtual]

Implements QmitkRigidRegistrationTransformsGUIBase.

Definition at line 162 of file QmitkCenteredRigid2DTransformView.cpp.

References QmitkRigidRegistrationTransformsGUIBase::m_FixedImage.

{
  if (m_FixedImage.IsNotNull())
  {
    if (m_FixedImage->GetDimension() == 2)
      return 5;
    else
      return 0;
  }
  else
    return 0;
}
itk::Array< double > QmitkCenteredRigid2DTransformView::GetScales (  ) [virtual]

Implements QmitkRigidRegistrationTransformsGUIBase.

Definition at line 131 of file QmitkCenteredRigid2DTransformView.cpp.

References Ui_QmitkCenteredRigid2DTransformControls::m_CenterXScaleCenteredRigid2D, Ui_QmitkCenteredRigid2DTransformControls::m_CenterYScaleCenteredRigid2D, m_Controls, Ui_QmitkCenteredRigid2DTransformControls::m_RotationScaleCenteredRigid2D, Ui_QmitkCenteredRigid2DTransformControls::m_TranslationXScaleCenteredRigid2D, Ui_QmitkCenteredRigid2DTransformControls::m_TranslationYScaleCenteredRigid2D, and Ui_QmitkCenteredRigid2DTransformControls::m_UseOptimizerScalesCenteredRigid2D.

{
  itk::Array<double> scales;
  scales.SetSize(5);
  scales.Fill(1.0);
  if (m_Controls.m_UseOptimizerScalesCenteredRigid2D->isChecked())
  {
    scales[0] = m_Controls.m_RotationScaleCenteredRigid2D->text().toDouble();
    scales[1] = m_Controls.m_CenterXScaleCenteredRigid2D->text().toDouble();
    scales[2] = m_Controls.m_CenterYScaleCenteredRigid2D->text().toDouble();
    scales[3] = m_Controls.m_TranslationXScaleCenteredRigid2D->text().toDouble();
    scales[4] = m_Controls.m_TranslationYScaleCenteredRigid2D->text().toDouble();
  }
  return scales;
}
itk::Object::Pointer QmitkCenteredRigid2DTransformView::GetTransform (  ) [virtual]

Implements QmitkRigidRegistrationTransformsGUIBase.

Definition at line 33 of file QmitkCenteredRigid2DTransformView.cpp.

References AccessByItk, QmitkRigidRegistrationTransformsGUIBase::m_FixedImage, and m_TransformObject.

{
  if (m_FixedImage.IsNotNull())
  {
    AccessByItk(m_FixedImage, GetTransform2);
    return m_TransformObject;
  }
  return NULL;
}
itk::Array< double > QmitkCenteredRigid2DTransformView::GetTransformParameters (  ) [virtual]

Implements QmitkRigidRegistrationTransformsGUIBase.

Definition at line 83 of file QmitkCenteredRigid2DTransformView.cpp.

References Ui_QmitkCenteredRigid2DTransformControls::m_AngleCenteredRigid2D, Ui_QmitkCenteredRigid2DTransformControls::m_CenterForInitializerCenteredRigid2D, Ui_QmitkCenteredRigid2DTransformControls::m_CenterXScaleCenteredRigid2D, Ui_QmitkCenteredRigid2DTransformControls::m_CenterYScaleCenteredRigid2D, m_Controls, Ui_QmitkCenteredRigid2DTransformControls::m_MomentsCenteredRigid2D, Ui_QmitkCenteredRigid2DTransformControls::m_RotationScaleCenteredRigid2D, Ui_QmitkCenteredRigid2DTransformControls::m_TranslationXScaleCenteredRigid2D, Ui_QmitkCenteredRigid2DTransformControls::m_TranslationYScaleCenteredRigid2D, and Ui_QmitkCenteredRigid2DTransformControls::m_UseOptimizerScalesCenteredRigid2D.

{
  itk::Array<double> transformValues;
  transformValues.SetSize(9);
  transformValues.fill(0);
  transformValues[0] = m_Controls.m_UseOptimizerScalesCenteredRigid2D->isChecked();
  transformValues[1] = m_Controls.m_RotationScaleCenteredRigid2D->text().toDouble();
  transformValues[2] = m_Controls.m_CenterXScaleCenteredRigid2D->text().toDouble();
  transformValues[3] = m_Controls.m_CenterYScaleCenteredRigid2D->text().toDouble();
  transformValues[4] = m_Controls.m_TranslationXScaleCenteredRigid2D->text().toDouble();
  transformValues[5] = m_Controls.m_TranslationYScaleCenteredRigid2D->text().toDouble();
  transformValues[6] = m_Controls.m_AngleCenteredRigid2D->text().toFloat();
  transformValues[7] = m_Controls.m_CenterForInitializerCenteredRigid2D->isChecked();
  transformValues[8] = m_Controls.m_MomentsCenteredRigid2D->isChecked();
  return transformValues;
}
void QmitkCenteredRigid2DTransformView::SetTransformParameters ( itk::Array< double >  transformValues ) [virtual]

Implements QmitkRigidRegistrationTransformsGUIBase.

Definition at line 100 of file QmitkCenteredRigid2DTransformView.cpp.

References Ui_QmitkCenteredRigid2DTransformControls::m_AngleCenteredRigid2D, Ui_QmitkCenteredRigid2DTransformControls::m_CenterForInitializerCenteredRigid2D, Ui_QmitkCenteredRigid2DTransformControls::m_CenterXScaleCenteredRigid2D, Ui_QmitkCenteredRigid2DTransformControls::m_CenterYScaleCenteredRigid2D, m_Controls, Ui_QmitkCenteredRigid2DTransformControls::m_GeometryCenteredRigid2D, Ui_QmitkCenteredRigid2DTransformControls::m_MomentsCenteredRigid2D, Ui_QmitkCenteredRigid2DTransformControls::m_RotationScaleCenteredRigid2D, Ui_QmitkCenteredRigid2DTransformControls::m_TranslationXScaleCenteredRigid2D, Ui_QmitkCenteredRigid2DTransformControls::m_TranslationYScaleCenteredRigid2D, and Ui_QmitkCenteredRigid2DTransformControls::m_UseOptimizerScalesCenteredRigid2D.

{
  m_Controls.m_UseOptimizerScalesCenteredRigid2D->setChecked(transformValues[0]);
  m_Controls.m_RotationScaleCenteredRigid2D->setText(QString::number(transformValues[1]));
  m_Controls.m_CenterXScaleCenteredRigid2D->setText(QString::number(transformValues[2]));
  m_Controls.m_CenterYScaleCenteredRigid2D->setText(QString::number(transformValues[3]));
  m_Controls.m_TranslationXScaleCenteredRigid2D->setText(QString::number(transformValues[4]));
  m_Controls.m_TranslationYScaleCenteredRigid2D->setText(QString::number(transformValues[5]));
  m_Controls.m_AngleCenteredRigid2D->setText(QString::number(transformValues[6]));
  m_Controls.m_CenterForInitializerCenteredRigid2D->setChecked(transformValues[7]);
  m_Controls.m_MomentsCenteredRigid2D->setChecked(transformValues[8]);
  m_Controls.m_GeometryCenteredRigid2D->setChecked(!transformValues[8]);
}
void QmitkCenteredRigid2DTransformView::SetupUI ( QWidget *  parent ) [virtual]

Implements QmitkRigidRegistrationTransformsGUIBase.

Definition at line 119 of file QmitkCenteredRigid2DTransformView.cpp.

References Ui_QmitkCenteredRigid2DTransformControls::m_AngleCenteredRigid2D, Ui_QmitkCenteredRigid2DTransformControls::m_CenterXScaleCenteredRigid2D, Ui_QmitkCenteredRigid2DTransformControls::m_CenterYScaleCenteredRigid2D, m_Controls, Ui_QmitkCenteredRigid2DTransformControls::m_RotationScaleCenteredRigid2D, Ui_QmitkCenteredRigid2DTransformControls::m_TranslationXScaleCenteredRigid2D, Ui_QmitkCenteredRigid2DTransformControls::m_TranslationYScaleCenteredRigid2D, and Ui_QmitkCenteredRigid2DTransformControls::setupUi().

{
  m_Controls.setupUi(parent);
  QValidator* validatorLineEditInputFloat = new QDoubleValidator(0, 20000000, 8, this);
  m_Controls.m_AngleCenteredRigid2D->setValidator(validatorLineEditInputFloat);
  m_Controls.m_RotationScaleCenteredRigid2D->setValidator(validatorLineEditInputFloat);
  m_Controls.m_CenterXScaleCenteredRigid2D->setValidator(validatorLineEditInputFloat);
  m_Controls.m_CenterYScaleCenteredRigid2D->setValidator(validatorLineEditInputFloat);
  m_Controls.m_TranslationXScaleCenteredRigid2D->setValidator(validatorLineEditInputFloat);
  m_Controls.m_TranslationYScaleCenteredRigid2D->setValidator(validatorLineEditInputFloat);
}
vtkTransform * QmitkCenteredRigid2DTransformView::Transform ( vtkMatrix4x4 *  vtkmatrix,
vtkTransform *  vtktransform,
itk::Array< double >  transformParams
) [virtual]

Implements QmitkRigidRegistrationTransformsGUIBase.

Definition at line 147 of file QmitkCenteredRigid2DTransformView.cpp.

References QmitkRigidRegistrationTransformsGUIBase::m_MovingImage.

{
  if (m_MovingImage.IsNotNull())
  {
    mitk::ScalarType angle = transformParams[0] * 45.0 / atan(1.0);;
    vtktransform->PostMultiply();
    vtktransform->Translate(-transformParams[1], -transformParams[2], 0);
    vtktransform->RotateZ(angle);
    vtktransform->Translate(transformParams[1], transformParams[2], 0);
    vtktransform->Translate(transformParams[3], transformParams[4], 0);
    vtktransform->PreMultiply();
  }
  return vtktransform;
}

Member Data Documentation

double QmitkCenteredRigid2DTransformView::m_CenterX [protected]

Definition at line 67 of file QmitkCenteredRigid2DTransformView.h.

double QmitkCenteredRigid2DTransformView::m_CenterY [protected]

Definition at line 68 of file QmitkCenteredRigid2DTransformView.h.

double QmitkCenteredRigid2DTransformView::m_CenterZ [protected]

Definition at line 69 of file QmitkCenteredRigid2DTransformView.h.

Ui::QmitkCenteredRigid2DTransformControls QmitkCenteredRigid2DTransformView::m_Controls [protected]

Definition at line 63 of file QmitkCenteredRigid2DTransformView.h.

Referenced by GetScales(), GetTransformParameters(), SetTransformParameters(), and SetupUI().

itk::Object::Pointer QmitkCenteredRigid2DTransformView::m_TransformObject [protected]

Definition at line 65 of file QmitkCenteredRigid2DTransformView.h.

Referenced by GetTransform().

The documentation for this class was generated from the following files:
